Rotax 912 i series Installation Manual

Effectivity: 912 i Series
Edition 1/Rev. 2
Page 34
January 01/2014

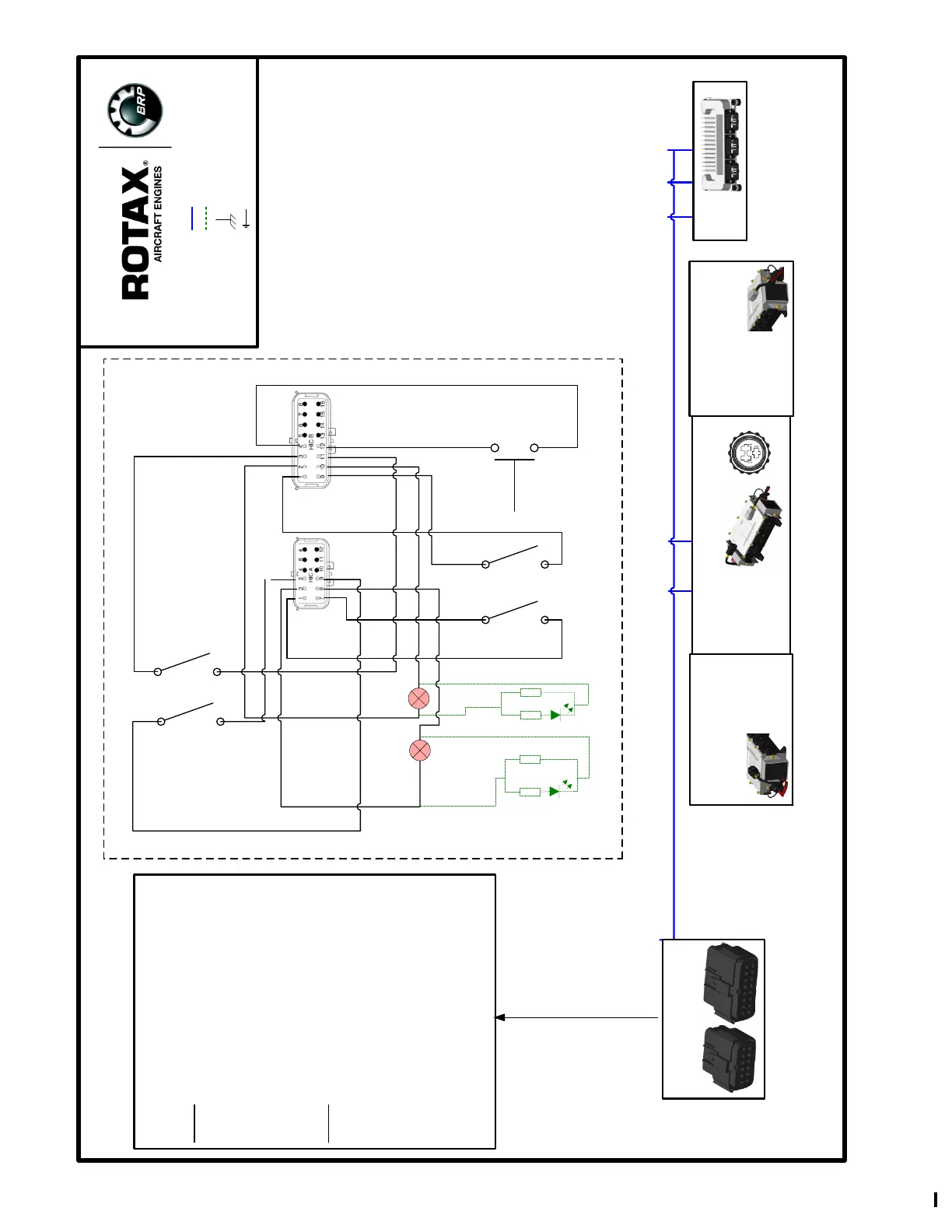

Wiring HIC Switch and warning lamps
LBLA
Kraftstoff-
pumpe 2
Fuel Pump 2
(Aux)
LA LB
Kraftstoff-
pumpe 1
Fuel Pump 1
(Main)
Lane select switches
Start
Button
Schalter / Switches Warnlampen / Warning Lamps HIC A 1 LANE SEL_SW_A_1 (AWG 16) 2 SUPP_WARN_LAMP_A (AWG 18) 3 SIG_FUEL_PUMP_1 (AWG 16) 7 LANE_SEL_SW_A_2 (AWG 16) 8 WARN_LAMP_A (AWG 18) 9 GND_FUEL_PUMP_1 (AWG 16) HIC B 1 LANE_SEL_SW_B_1 (AWG 16) 2 SUPP_WARN_LAMP_B (AWG 18) 3 SIG_FUEL_PUMP_2 (AWG 16) 4 CONN_STARTER_REL_SW (AWG 18) 9 LANE_SEL_SW_B_2 (AWG 16) 10 WARN_LAMP_B (AWG 18) 11 GND_FUEL_PUMP_2 (AWG 16) 12 SUPP_START_SWITCH (AWG 18)
Sicherungskasten / Fuse Box
Reglerplatte A
Regulator board A
Reglerplatte B
Regulator board B
ECU
912 iS wiring harness
Airframe Ground
EMS ground
AWG 14 (2,50 mm²) AWG 16 (1,50 mm²) AWG 18 (1,00 mm²) AWG 20 (0,75 mm²)
Optional (not required)
1kΩ
1,5kΩ
1kΩ
1,5kΩ
LED Warning Lamps
Warning Lamps
HICA/B
08589

Rotax 912 i series Specifications

General

Number of Cylinders	4
Max Power	100 hp (73.5 kW)
Max Power Output RPM	5800 rpm
Ignition System	Dual electronic ignition
Oil System	Dry sump, forced lubrication with separate oil tank
Reduction Gear Ratio	2.43:1
TBO	2000 hours
Engine Type	4-stroke, horizontally opposed
Displacement	1352 cm³
Bore x Stroke	84 mm x 61 mm
Max Torque	128 Nm
Fuel Type	Avgas 100LL or unleaded automotive gasoline
Fuel System	Electronic fuel injection
Cooling System	Liquid/air-cooled
