10. Basic Setup

10.11 Set Transmitter Signal Invert

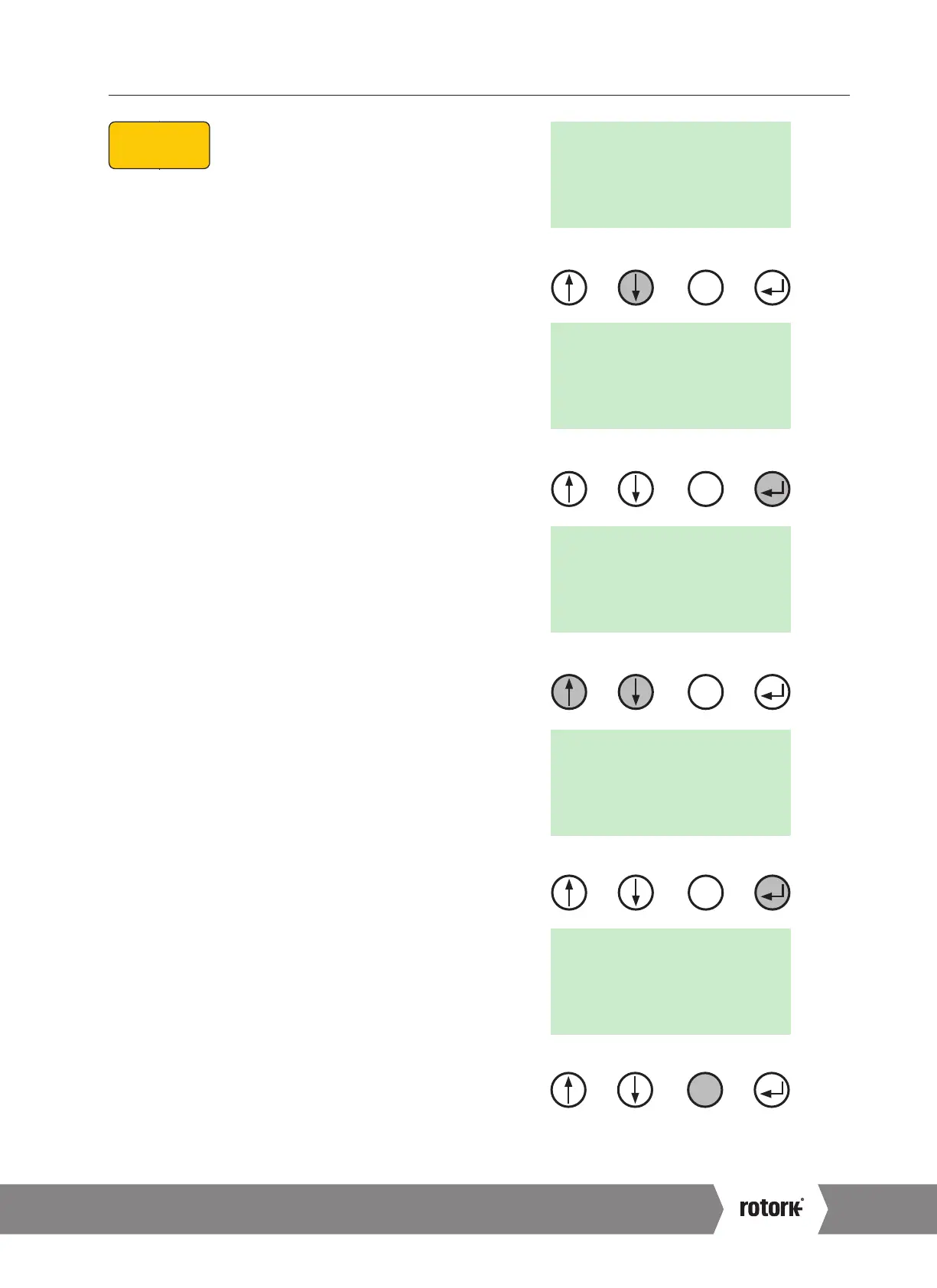

Press the DOWN arrow until the CPT IV menu is displayed.

Press ENTER until ‘EDIT’ is displayed.

Screen shows Transmitter Signal Invert set to OFF.

Transmitter Signal Invert is adjustable to ON or OFF.

Use the UP/DOWN buttons to set the Transmitter Signal

Invert ON or OFF.

Set to OFF for 4 mA as the close position and 20 mA as the

open position.

Set to ON to invert the signal, 4 mA is open and 20 mA

is close.

Press ENTER to save the current Transmitter Signal Invert

setting.

Press CANCEL to go back to top level menu.

STEP 1

SELECT LOCAL

OPERATION

STEP 2

SET OUTPUT

TORQUE/THRUST

STEP 4

SET CLOSE LIMIT

OF TRAVEL

STEP 5

SET OPEN LIMIT

OF TRAVEL

STEP 6

CALIBRATE COMMAND

SIGNAL ZERO SETPOINT

STEP 7

CALIBRATE COMMAND

SIGNAL SPAN SETPOINT

STEP 3

SELECT ACTION AT END

OF TRAVEL ( LIMIT OR FORCE)

STEP 8

SET COMMAND

SIGNAL INVERT

STEP 9

SET TRANSMITTER

SIGNAL INVERT

STEP 10

DEADBAND

LOCAL

CPT

EDIT

LOCAL

POS

LOCAL

EDIT

OFF

LOCAL

EDIT

SAVED

LOCAL

EDIT

Fig 10.52

Fig 10.53

Fig 10.54

Fig 10.55

Fig 10.56
