10.12 Set Deadband
Press the DOWN arrow until the DBAND menu is displayed.
Press ENTER until ‘EDIT’ is displayed.
Screen shows the Deadband set to 0.1%.
Deadband is adjustable between 0 to 10% of the Analogue
signal.
Use the UP/DOWN buttons to select the desired Deadband.
Select the value of Deadband that gives the required control
response.
It may be necessary to increase the deadband if the actuator
'Hunts' or overshoots the command setpoint giving spurious
operation.
Press ENTER to save the current Deadband Value.
Press CANCEL to go back to top level menu.
STEP 1
SELECT LOCAL
OPERATION
STEP 2
SET OUTPUT
TORQUE/THRUST
STEP 4
SET CLOSE LIMIT
OF TRAVEL
STEP 5
SET OPEN LIMIT
OF TRAVEL
STEP 6
CALIBRATE COMMAND
SIGNAL ZERO SETPOINT
STEP 7
CALIBRATE COMMAND
SIGNAL SPAN SETPOINT
STEP 3
SELECT ACTION AT END
OF TRAVEL ( LIMIT OR FORCE)
STEP 8
SET COMMAND
SIGNAL INVERT
STEP 9
SET TRANSMITTER
SIGNAL INVERT
STEP 10
DEADBAND
LOCAL
DBAND
X
X
X
X
EDIT
LOCAL
POS I T
LOCAL
EDIT
DB 0.10
%
LOCAL
EDIT
SAVED
LOCAL
EDIT
DB 0.14
%
X

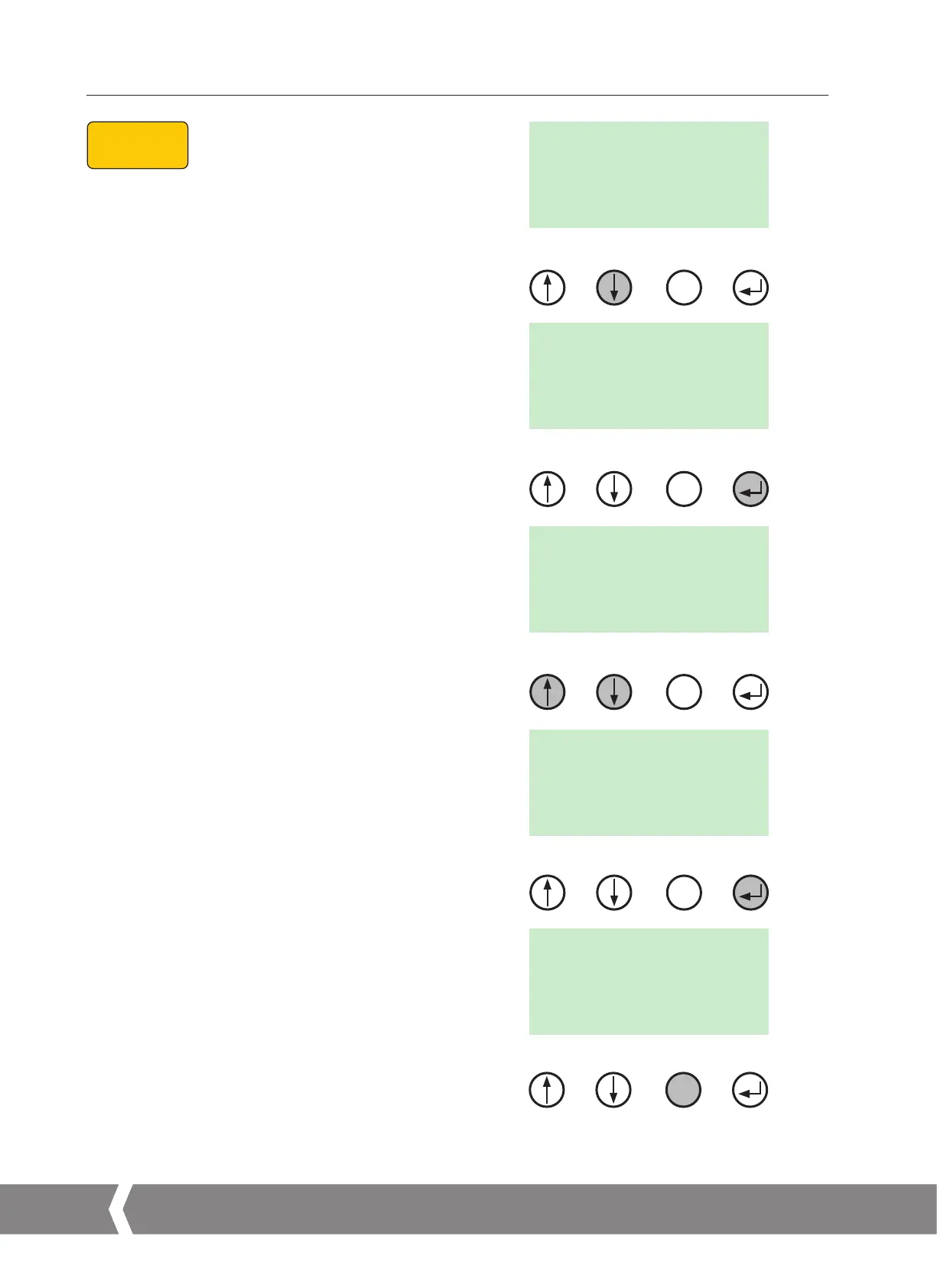

Fig 10.57
Fig 10.58
Fig 10.59
Fig 10.60
Fig 10.61
10. Basic Setup
