7. The magnetic head must have a bevelled edge on both front and back to keep both bill edges from becoming
caught in forward or reverse.
8. Nylon rollers on the magnetic head assembly must rotate freely. No dirt, moisture, burrs, projections, or rough
spots can be on the magnetic heads or magnetic head holder.

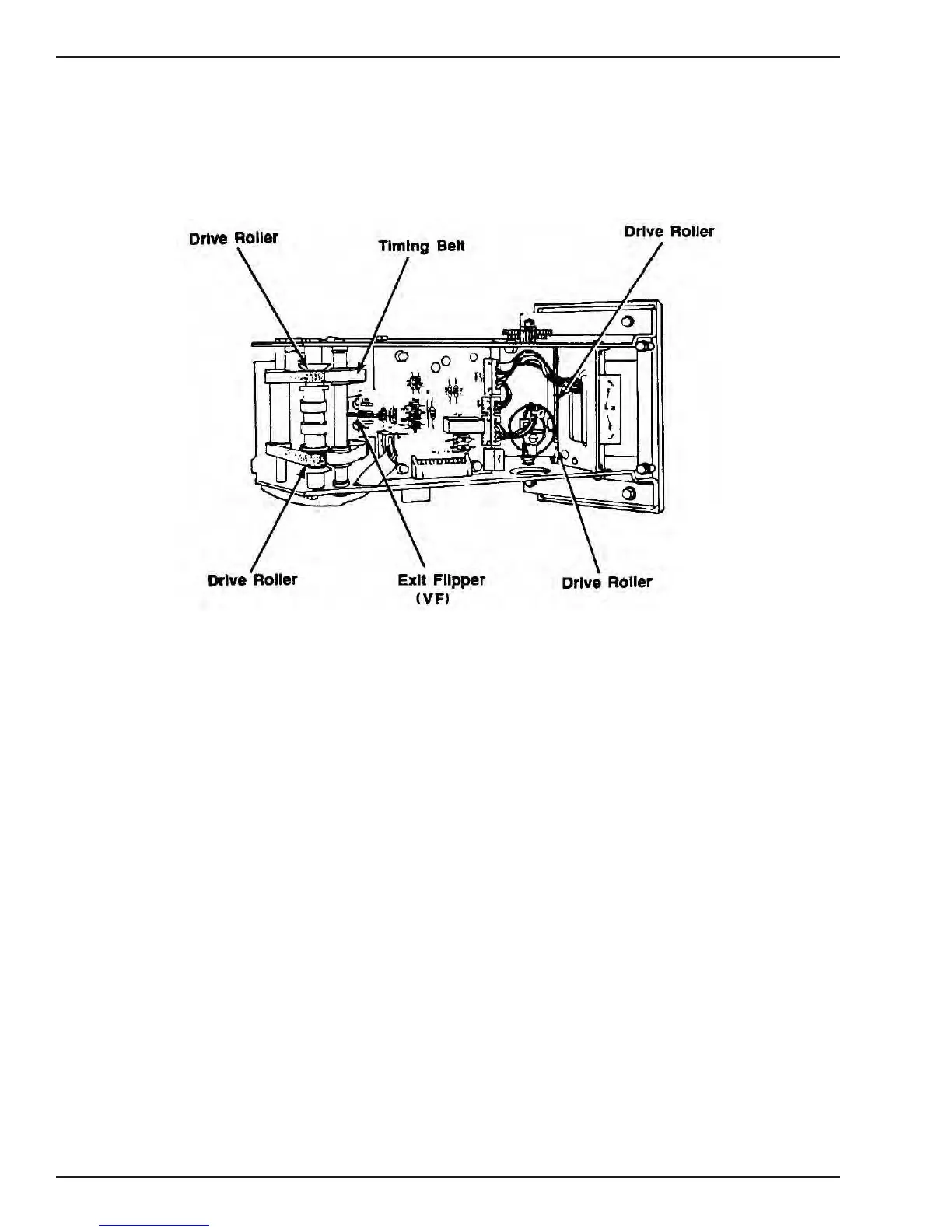

Figure 3-1. Transport Check Points
FILLING AND EMPTYING THE BC-3500
The dispensing mechanism operates on an escrow principle. Change for a vend must be in the escrow buckets when
the customer inserts a bill. After change is dispensed, the buckets must immediately refill for the next customer.
Because of this, certain steps must be followed when filling or emptying the changer, or when resetting the changer
if it has shut down.
FILLING THE CHANGER
When filling a changer that is empty, the coin buckets must be filled with their proper load of coins before the machine
can be put into operation. After the hoppers have been loaded and are in place:
1. Turn the power switch ON and depress the LEFT TEST SWITCH once. This will start the hoppers and load
the left coin bucket with the proper coins.
2. Wait until the hopper motors have all stopped and press the LEFT TEST SWITCH again. Proper change should
be dispensed and hopper motors will start to refill the bucket again.
3. Repeat steps 1 and 2 for the CENTER TEST SWITCH and RIGHT TEST SWITCH. The machine should now
be ready for operation.
To Next Page
