Section 3: Routine Service
25238801 3-17
Adjusting the Bill Stop Flipper
Refer to Figure 3-15 while you are doing this procedure.
1. The position of the bill stop flipper (A), can be adjusted
by prying against the solenoid plunger stop tab (B)
through the flipper opening in the pusher plate with a
screwdriver (Service tip: Pry up on the stop tab (B) to
lower the flipper; pry down on the stop tab to raise the
flipper).
Installing a New or Replacement Bill Stacker
1. Slide the bill stacker and bill acceptor into the mounting
rails and align them according to the preceding proce-
dure called “Adjusting the Bill Acceptor Rails”.
Refer to Figure 3-16 and adjust the lower bill box stop
bracket and mounting plate so that the bottom bill box is
aligned with the upper bill box and chute guides in the
following manner:

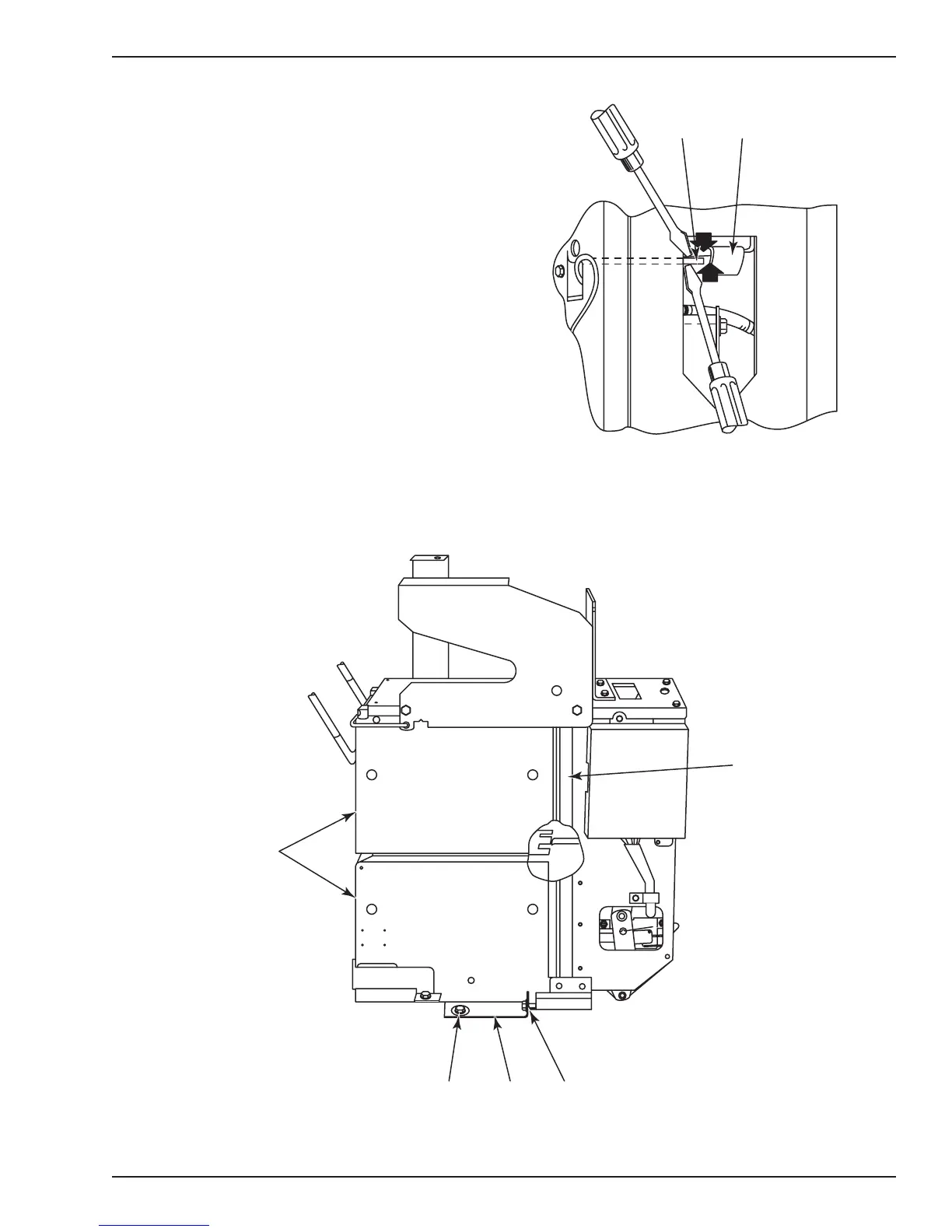

Figure 3-16. Mounting Plate Adjustment
Figure 3-15. Bill Stop
Flipper Adjustment
B A
Upper Bill Box
Lower Bill Box
ACB
To Next Page
