BC-3500 Bill and Coin Changer
3-16 25238801
Bill Stop Flipper Check
Refer to Figure 3-14 as an aid in doing this service check.
1. The bill stop flipper (A) must touch the tab (B) on the upper bill box.
2. With the lower bill box removed, slide the upper bill box into the stacker. The flipper should move downward
approximately 1/32 to 1/16 inch when the upper bill box is inserted completely into the stacker.
3. If the flipper does not move downward the correct distance (1/32 to 1/16 inch), perform the following
procedure:

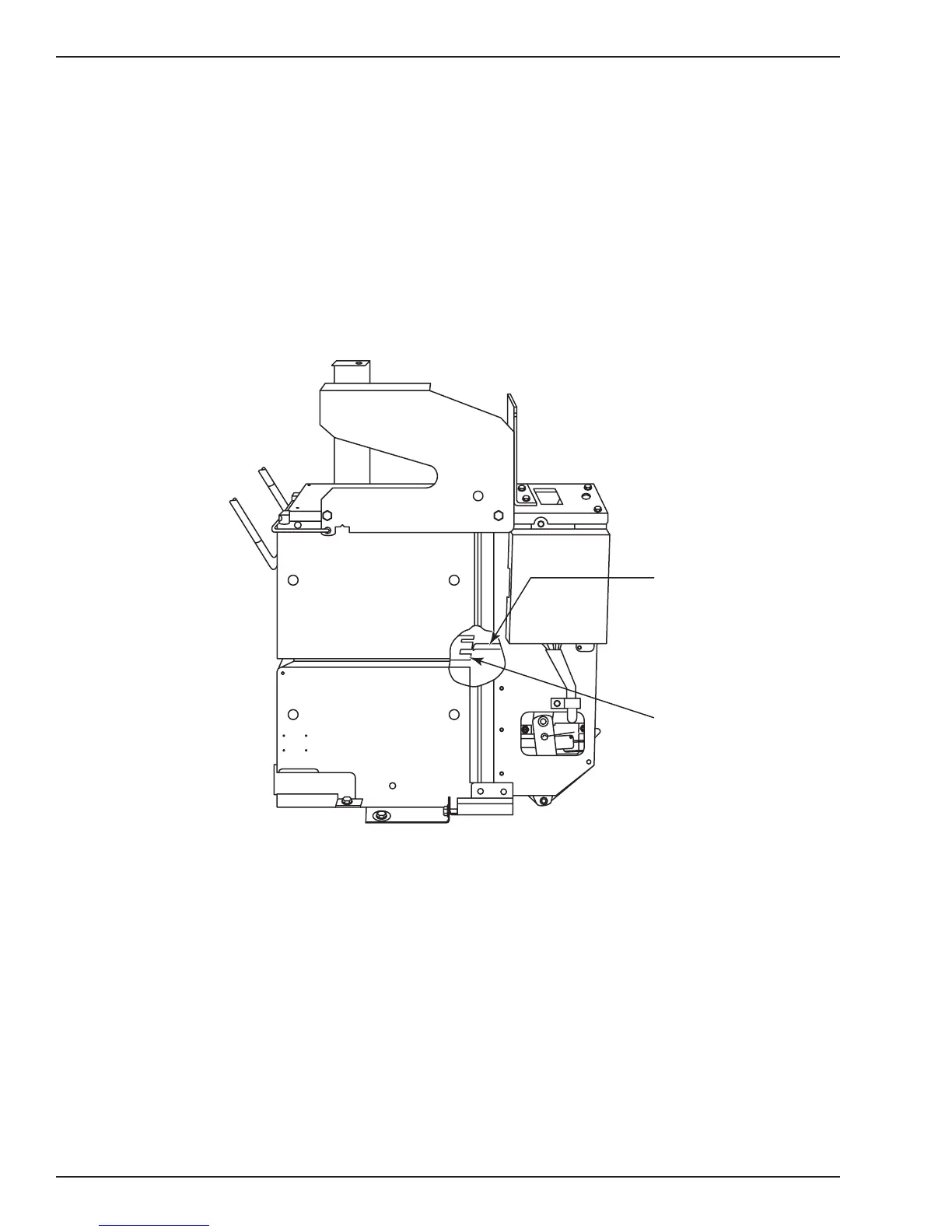

Figure 3-14. Bill Stop Flipper Check
Upper Bill Box
Lower Bill Box
To Next Page
