Section 3: Routine Service
25238801 3-9
ADJUSTMENTS
Bill and Coin Return Switch Assembly
COIN INLET TO TOP DOOR CLEARANCE
Make this adjustment if the gap between the bill and coin return switch plate and the door is excessive, or if the bill
and coin return switch assembly has been removed.
Refer to Figure 3-7 as needed for this procedure.
1. Open the top door.
2. Loosen the two screws on the side of the partition as shown in A.
3. Loosen the three screws on the top of the bill and coin return switch as shown in B just enough that the bill and
coin return switch assembly can slide forward and backward easily.
4. Slide the bill and coin return switch assembly as far forward (toward you) as possible.
5. Slowly close the top door and latch it. This will push the bill and coin return switch assembly back, so that
it is in the correct position (flush with the door trim).
6. Open the top door and tighten the two screws (A) on the side of the assembly.
7. Tighten the three screws at B.
8. Close the top door again to recheck the clearance, and repeat Steps 1 through 7 if necessary.

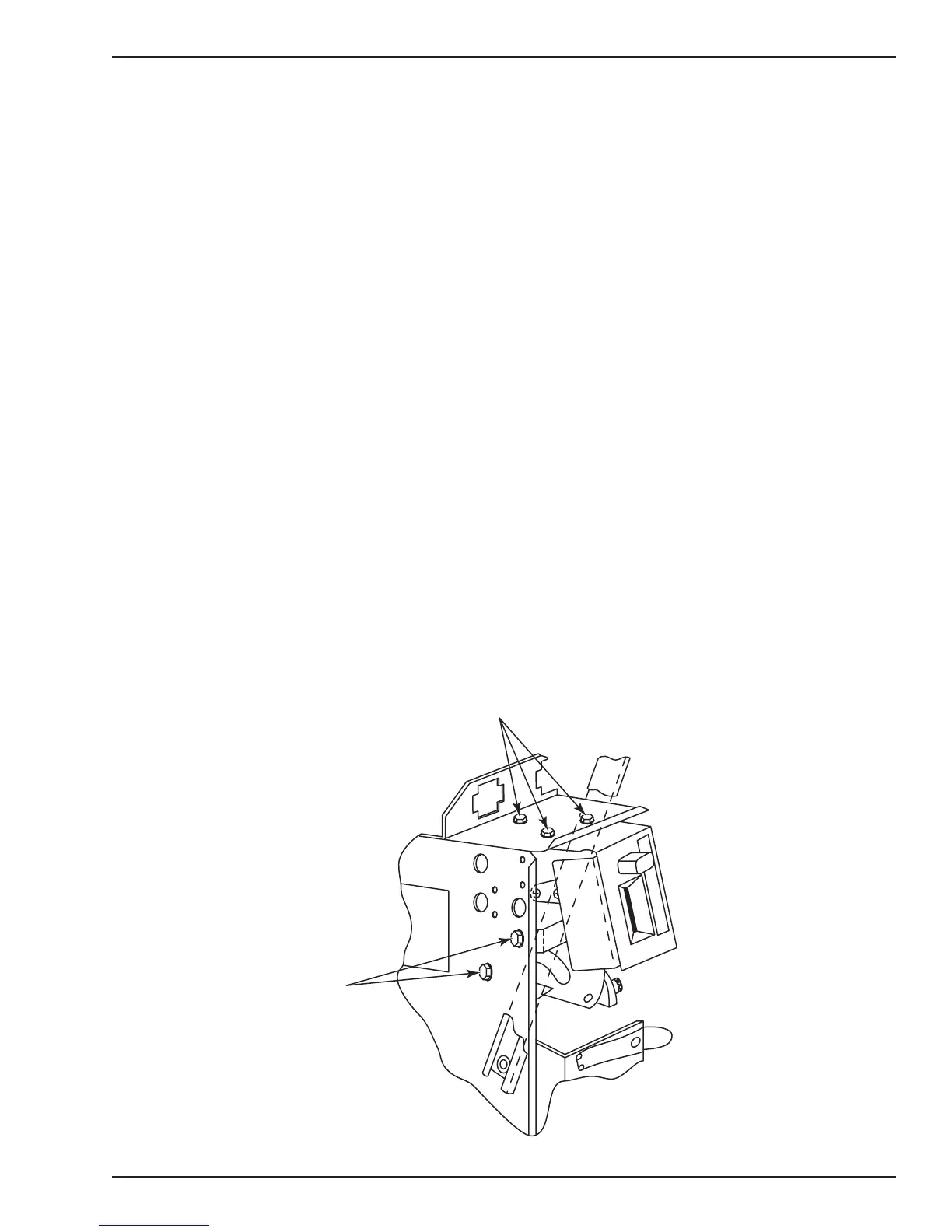

Figure 3-7. Coin Inlet Top Door Clearance
