RT Systems TM3 User Manual
4
of 1
of 1 rating
60 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
48
graph view

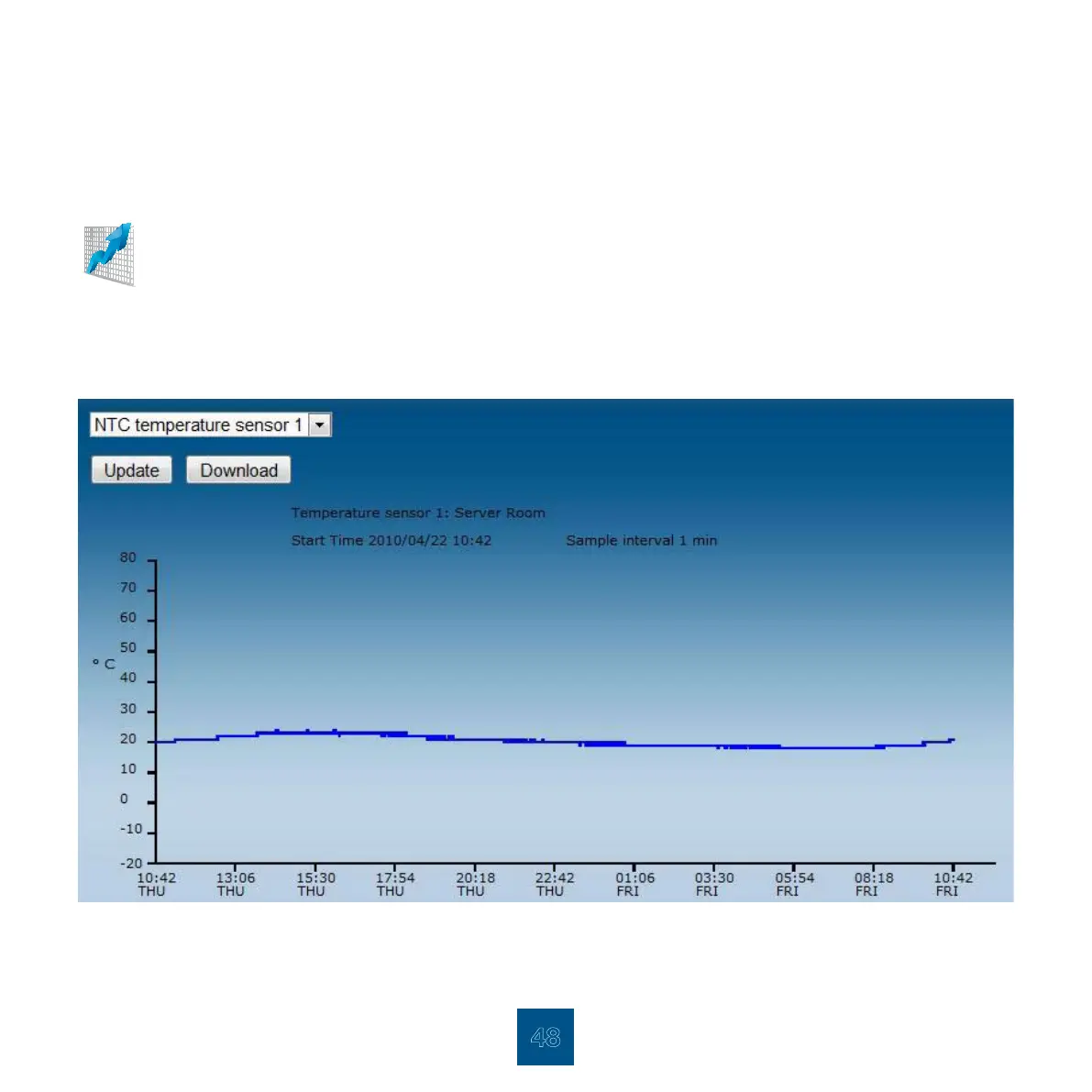

The analogue sensors sampled data are viewable on the web interface. The sensor name, start date and time as well as the sampling
period are displayed on the graph. Select the r
equired sensor graph fr
om the drop down list and select Update. By selecting
Download, Graph data can be viewed or saved on a PC in Microsoft Of
ce Excel W
orksheet Format.
48
50
Table of Contents
Table of Contents
2
Introduction
3
Product Description
3
Document Overview
4
Product Certification
4
Related Documents
4
Physical Description
5
Inventory
8
Additional Parts
9
Installation
10
Install the TM3 Unit
10
Power Cord, Network Cable and GSM Antenna Connections
11
Sensor Connection
12
Temperature Sensors
12
Flood Sensors
12
Dry Contacts
12
4-20Ma Sensors
13
Relay Connection
13
Initial Configuration
14
Before the Unit Is Used Operationally the Following Minimum Configuration Is Required
14
Set the Time and Date
14
Connecting Laptop to TM3
15
GSM Configuration
16
Ethernet/Internet Configuration (First Time)
18
Configuration
20
Contact Configuration Page
21
Alarm Profile Configuration Page
22
Dry Contact Alarm Configuration Page
23
Analogue Alarms Configuration Page
25
Transmission Selection
25
Analogue Names
26
Configuration Page
27
4-20Ma Sensor Configuration Page
28
Self Test Configuration Page
30
Temperature Sensor Configuration Page
31
Disabled Alarms Configuration Page
33
Uncleared Alarms Configuration Page
34
General Configuration Page
35
Camera Configuration Page
36
SNMP Configuration Page
37
Security Configuration Page
38
Log out Page
39
Front Panel Functions
40
Temp
40
Self Test
41
Disable/Enable All Alarms
42
Clock
42
Enter
42
GSM Sms Data Access
43
View Data
46
Home Page
47
Alarm Log
48
Graph View
49
Camera View
50
Snmp
51
Maintenance
52
Trouble Shooting
53
Clean the TM3 Monitoring Unit
54
Disposal
54
Specifications
55
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the RT Systems TM3 and is the answer not in the manual?
Ask a question
