ethernet/inter
net configuration (first time)
The unit is shipped with the following default network settings:
n
IP Address
192.168.0.50
n
Gateway Address
192.168.0.2
n
Sub-Net Mask
255.255.255.0
n
DNS IP Address
192.168.0.4
The
Ethernet
data
can
be
changed
and congured
on
the
web interface.
Select
Conguration
on
the
Home
Page
icon
bar
,
now
select

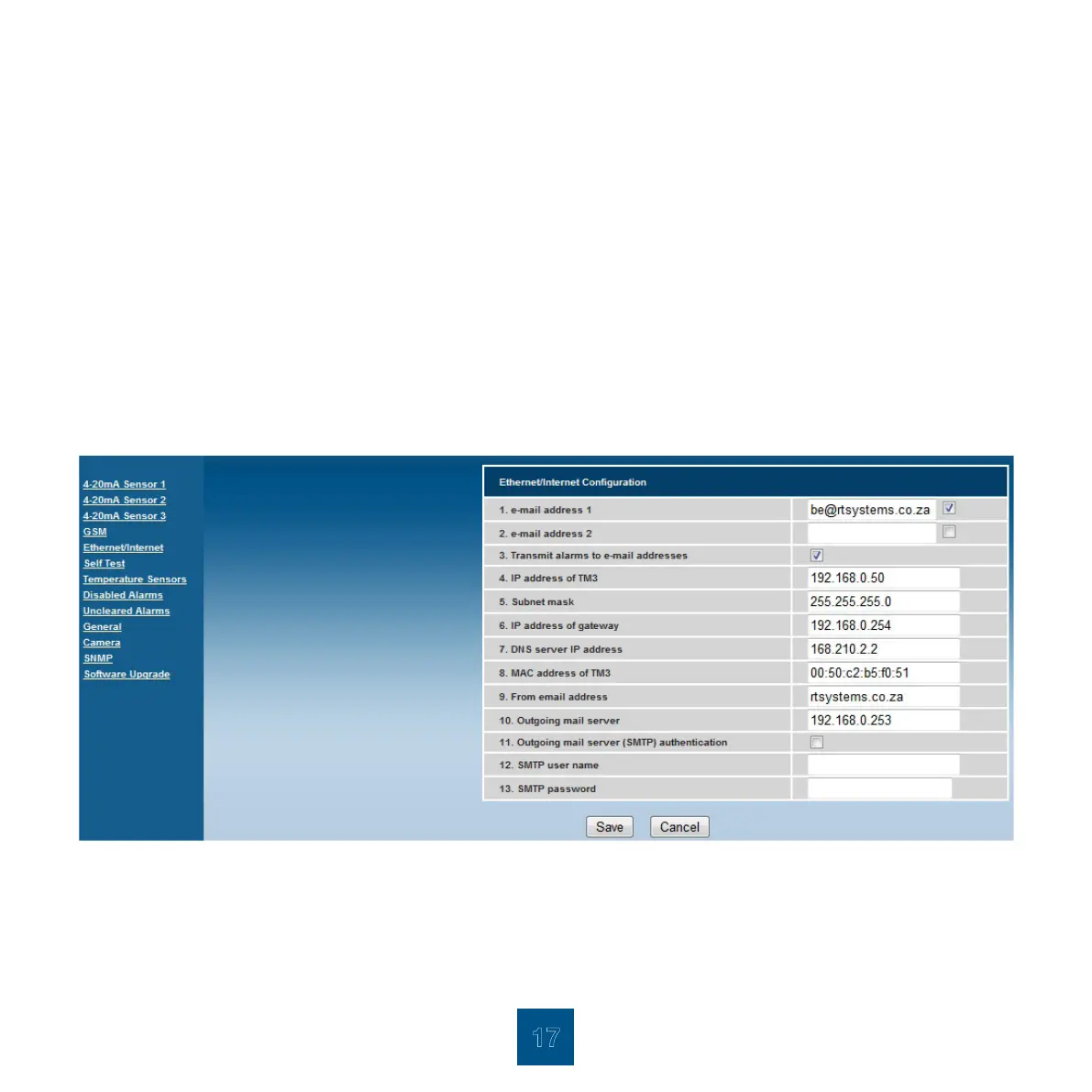

Ethernet/Inter
net and the Ethernet/Inter
net Conguration page appears.
