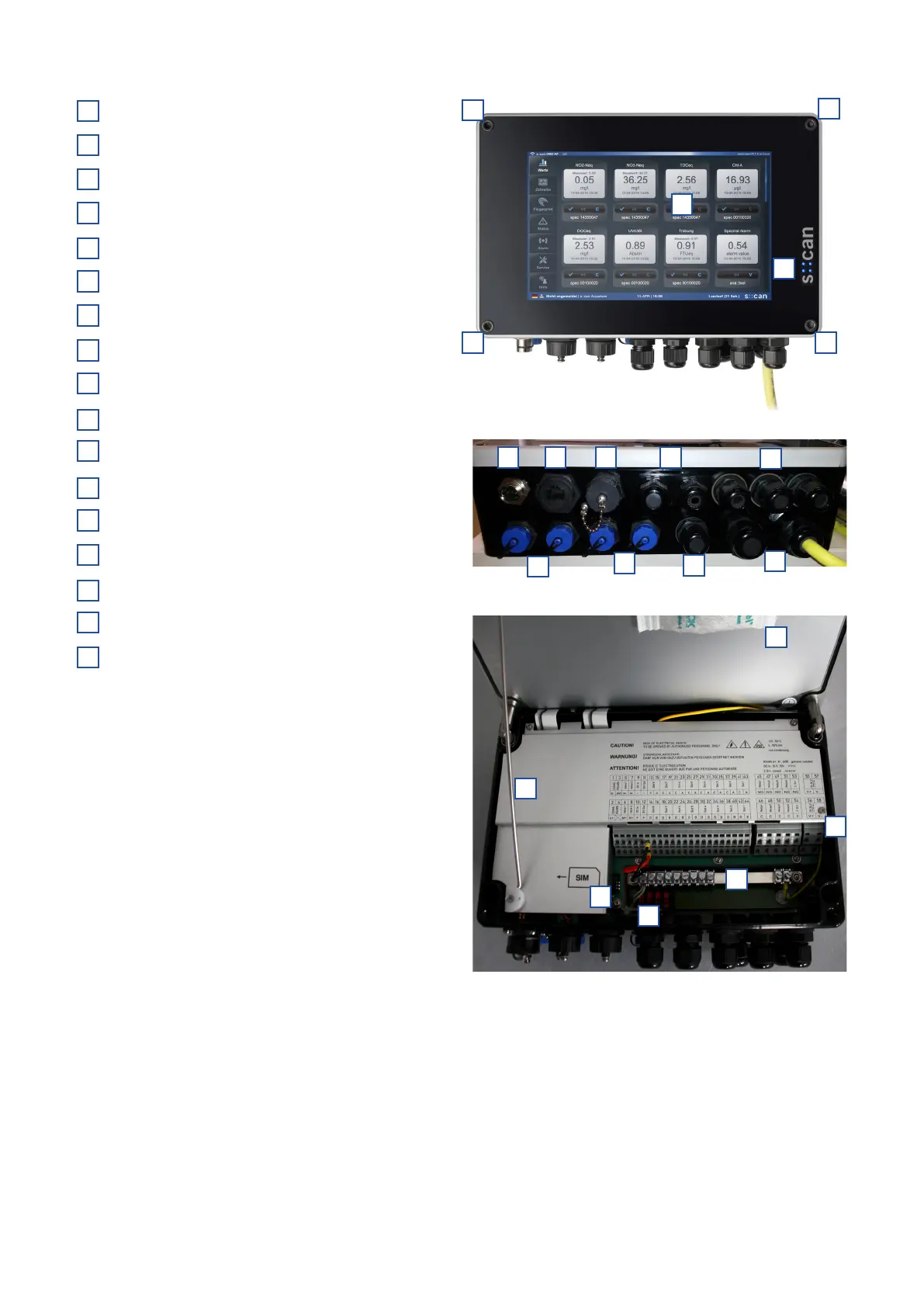

Color graphical display with touch screen
Screw to open housing cover
Control LED (blue, yellow or red)
1 connector for s::can spectrometer probe
4 connectors for i::scan, ISE probes or sensors
Ethernet (LAN) connector
USB connector
2cableglandsM16(optionalforProbus)
3 cable glands M16
1 cable gland M16 (optional antenna plug)
2 cable glands M20
Holder for housing cover
Desiccant package
Insert for SIM card
Additional cable terminals for 12 VDC out
Grounding bar
Power supply connection
con::cube D-330, 01-2020 Release
www.s-can.at
Copyright © s::can Messtechnik GmbH
9 / 42
1
2
2
2
2
3
4
5
10
5
76 8
9
11
1
2
4
5
6
7
3
8
9
10
11
12
13
14
15
16
17
16
17
12
13
14
15
