DH4C Installation Guide
p. 12
DH4C Operation

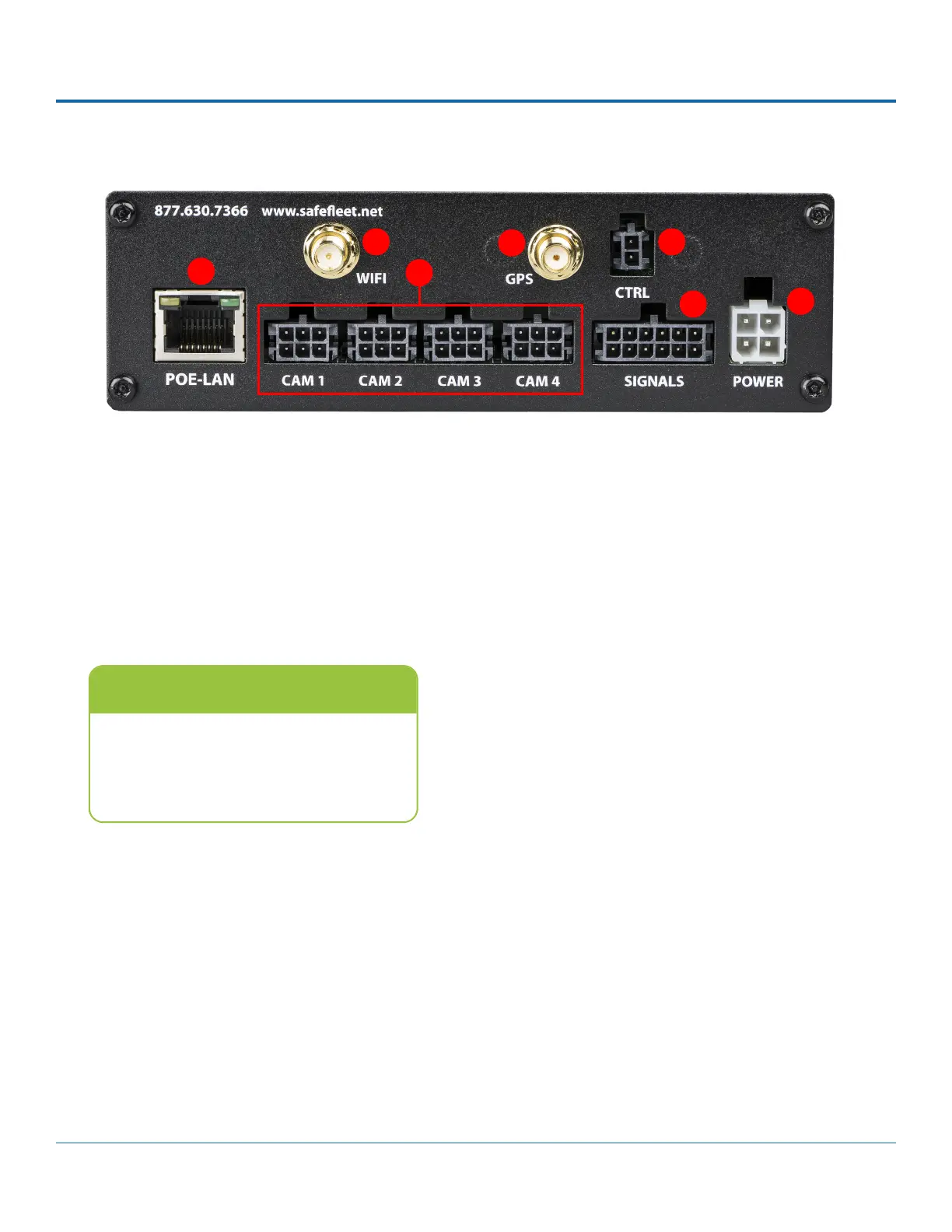

DVR Back Panel Features
1. POE-LAN - RJ-45 Ethernet connector for a laptop,
wireless equipment, or other accessories.
2. WIFI - SMA input connector for external WIFI antenna.
3. CAM 1 to CAM 4 - input connectors (6-pin) for four
cameras.
4. GPS - SMA input connector for GPS antenna.
5. CTRL - control connector for Safe Fleet equipment.
6. SIGNALS - connector for signal harness, with an
optional adapter for the RGY Button.
7. POWER - input for power harness.
POE LAN Port is 12-volt
In addition to the data transmitted, the POE
(Power Over Ethernet) LAN port supplies
12 volts to power accessories such as the
Smart-Reach Lite wireless bridge.
7
4
2
1
3
6
5
