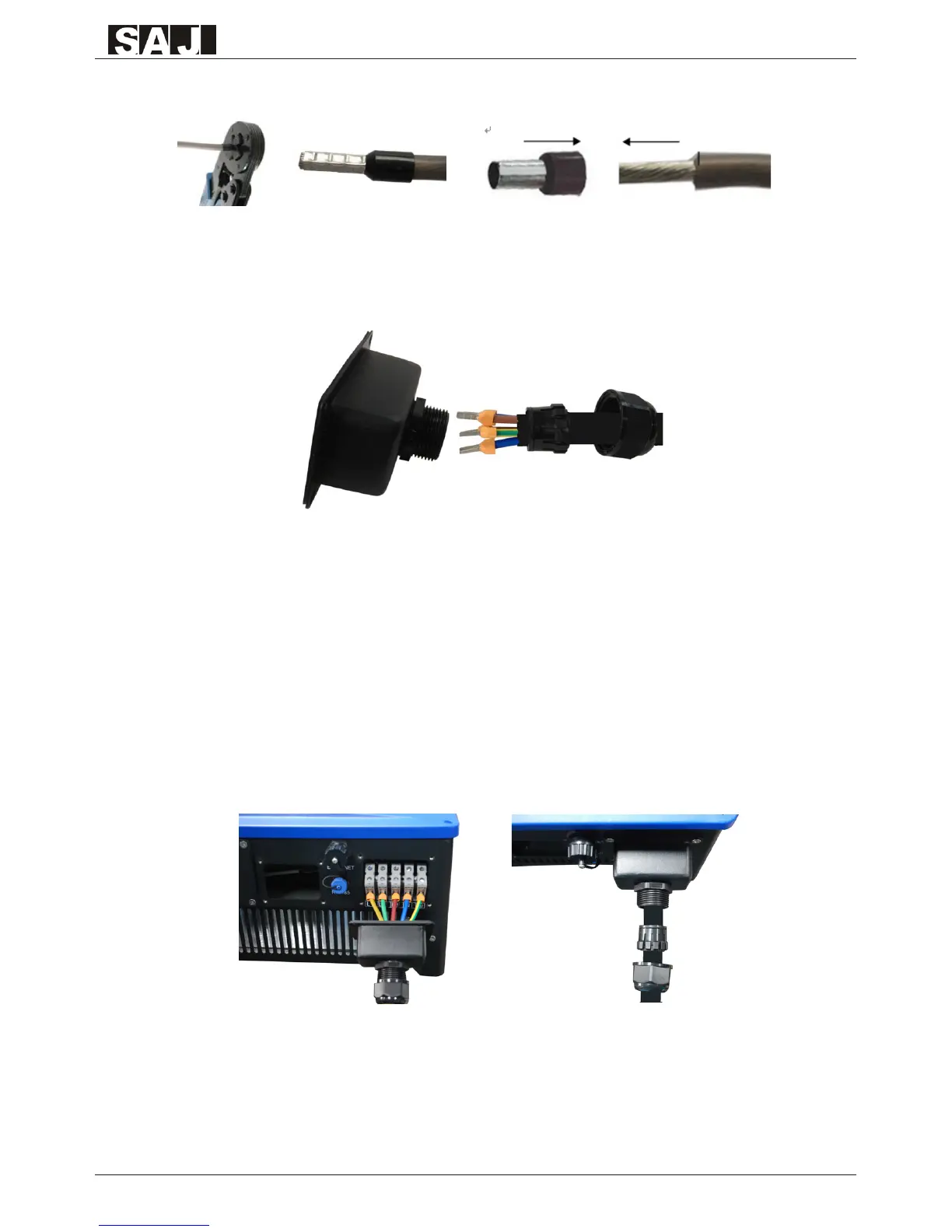

2)Please insert the striped cable into bootlace ferrule and crimp the contact.
3)Screw off the AC cover and insert the 5 wires into AC cover assembly with the following
sequence.
4)Release the ve screws at the cable terminal. Then route the 5 wires into the cable terminal
according to the marks on the front case while L1(R), L2(S), L3(T) represent 3 Live line, N
represent Neutral line and PE is ground.
NOTE:
• The PE conductor must be 5 mm longer than the L and N conductor.
• L and N must not be swapped.
• The direction of rotation of L1, L2 and L3 is not relevant.
To Next Page
