Installation
1
2
2
5
3
62
15
41
57
4
5

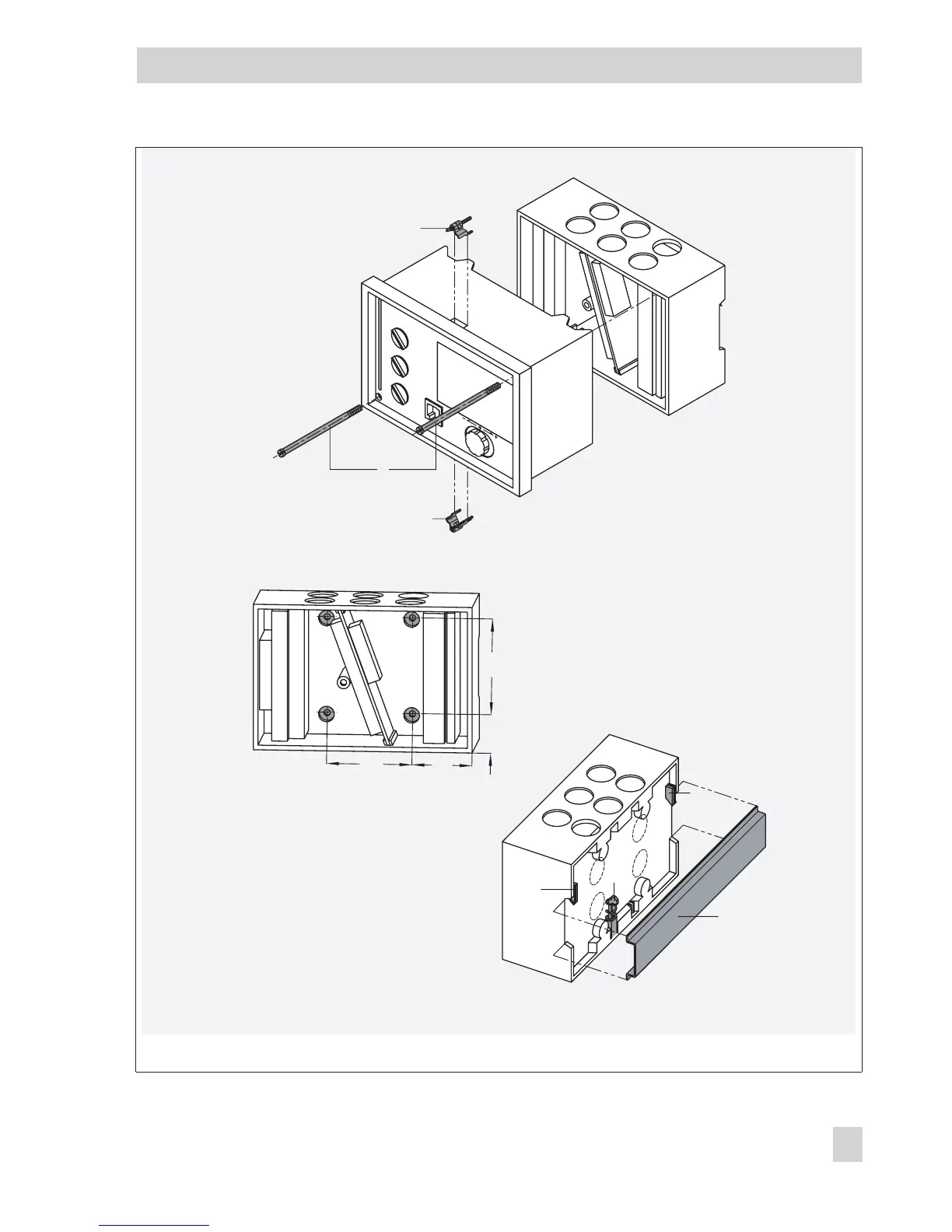

Fig. 15 · Installation
Panel mounting
Back of the
controller
Controller housing
Wall mounting
Top hat rail mounting
Dimensions in mm
W x H x D = 144 x 98 x 81
