5.5 Delayed outdoor temperature adaptation
The calculated outdoor temperature is used to determine the flow temperature set point. The
heat response is delayed when the outdoor temperature either decreases, increases or in-
creases and decreases. If the outdoor temperature varies by, for example, 12 °C within a
very short period of time, the calculated outdoor temperature is adapted to the actual out-
door temperature in small steps. Assuming a
Delay
of 3 °C/h, the adaptation would take
th
C
Ch
==
°
°
12
3
4
/
.
Note: The delayed outdoor temperature adaptation helps avoid unnecessary overloads of
central heating stations in combination with either overheated buildings occurring, for exam-
ple, due to warm winds, or temporarily insufficient heating due to the outdoor sensor being
exposed to direct sunshine.
In the operating level, the outdoor temperature blinks on the display while delayed outdoor
temperature adaptation is active. The calculated outdoor temperature is displayed.
Functions
WE Configuration
Delayed OT adaptation when OT decreases 0
3 °C/h
CO5 -> F05 - 1
Delay / 1 to 6 °C/h
Delayed OT adaptation when OT increases 0
3 °C/h
CO5 -> F06 - 1
Delay / 1 to 6 °C/h
5.6 Remote operation
Apart from measuring the room temperature, the Type 5244 Room Panel (PTC sensor) and
Type 5257-5 Room Panel (Pt 1000 sensor) offer the following opportunities of influencing the
control process:
EB 5579 EN 77
Functions of the heating circuit

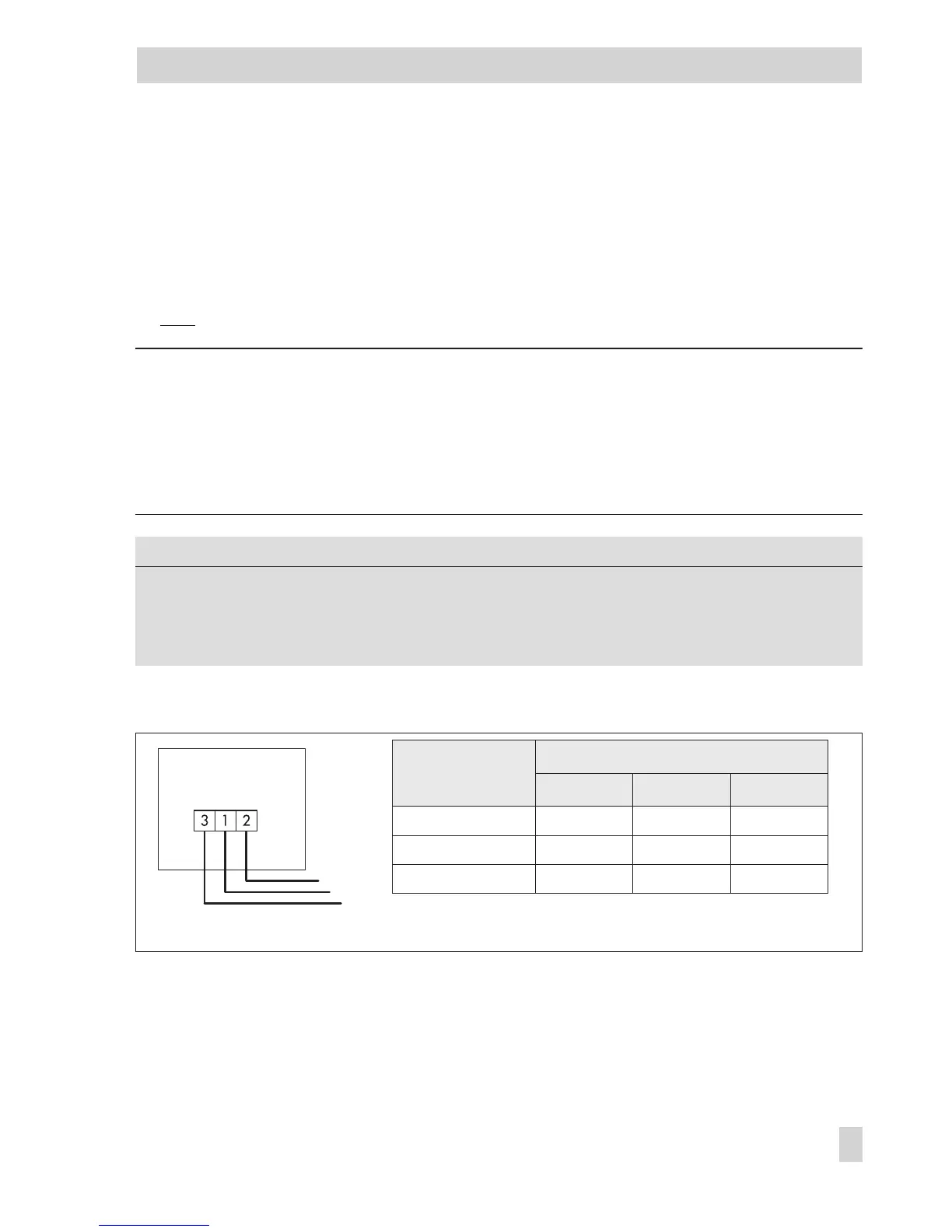

Fig. 7 · Wiring plan for Type 5244/5257-5 Room Panel to TROVIS 5579 for Rk1, Rk2 or Rk3
Type
5244/5257-5
TROVIS 5579
Rk1 Rk2 Rk3
Terminal 1 Terminal 5 Terminal 6 Terminal 7
Terminal 2 Terminal 18 Terminal 18 Terminal 18
Terminal 3 Terminal 15 Terminal 16 Terminal 17
Type 5244/5257-5
