5.1.2 4-point characteristic
The 4-point characteristic allows you to define your own heating characteristic.
It is defined by 4 points each for the
Outdoor temperature , the Flow temperature, the Reduced
flow temperature
and the Return flow temperature . The Max. flow temperature and Min. flow
temperature
parameters mark the upper and lower limits of the flow temperature.
Note: The Day set point and Night set point parameters are no longer available when the
4-point characteristic has been selected, provided no additional functions (e.g. Optimiza-
tion, Flash adaptation) have been selected.
Function
WE Configuration
4-point characteristic 0 CO1, 2, 3 -> F11 - 1
Parameters
WE Parameter level / Range of values
Outdoor temperature Point 1
Point 2
Point 3
Point 4
–15 °C
–5 °C
5°C
15 °C
PA1, 2, 3 / –30 to 50 °C
Flow temperature Point 1
Point 2
Point 3
Point 4
70 °C
55 °C
40 °C
25 °C
PA1, 2, 3 / 5 to 130 °C
72 EB 5579 EN
Functions of the heating circuit
t
VLmax
t
VLmin
t
VL
100
90
80
70
60
50
40
30
20
10
[
°C
]
20 15 10 5 0 –5 –10 –15 –20
P1
P2
P3
P4
[°C]
t
A

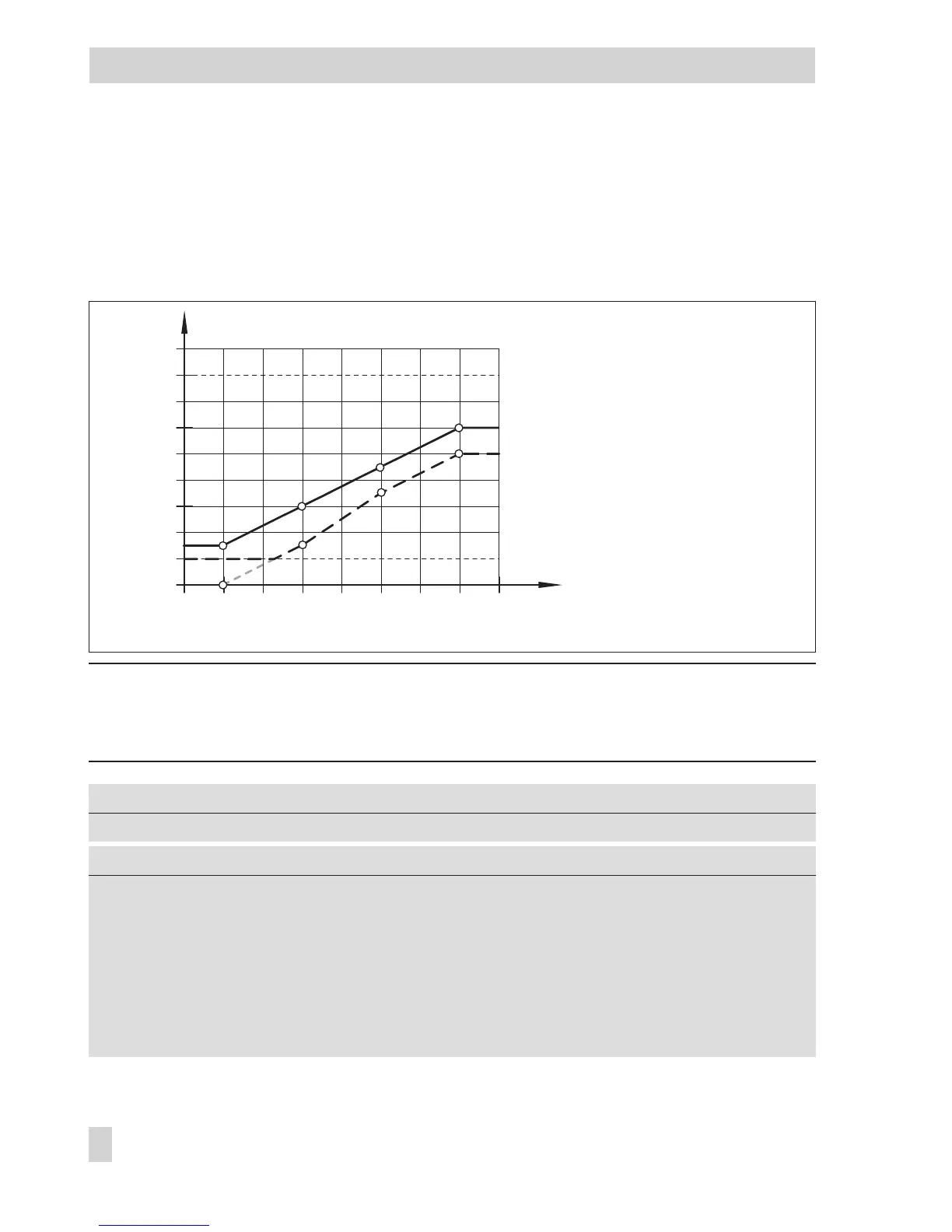

Fig. 6 · 4-point characteristic
P1 to P4 Points 1 to 4
t
VL
Flow temperature
t
A
Outdoor temperature
... min Min. t
VL
...max Max. t
VL
4-point characteristic
Reduced 4-point characteristic
