Samson TROVIS 5579 - Page 153

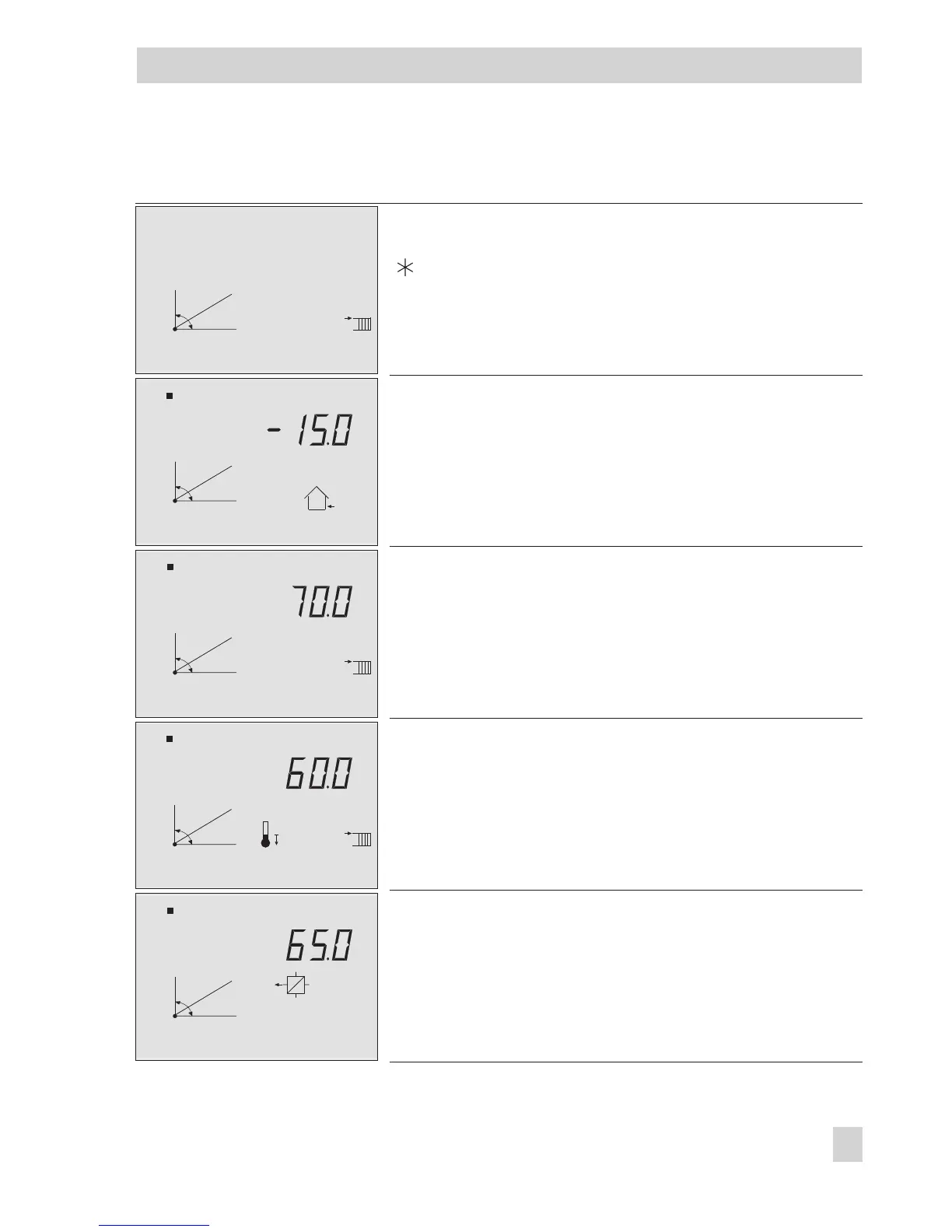

Display
Parameter designation
Range of values (default)
4-point characteristic
Press rotary pushbutton to set the following parameters
outdoor temperature,
flow temperature,
reduced flow temperature and
return flow temperature.
4-point characteristic
Point 1: Outdoor temperature
Outdoor temperatures of the points 2, 3, 4 are marked by squares
below the numbers 2, 3, 4.
–30 to 50 °C
(point 1: –15 °C, point 2: –5 °C, point 3: 5 °C, point 4: 15 °C)
4-point characteristic
Point 1: Flow temperature
Flow temperatures of the points 2, 3, 4 are marked by squares
below the numbers 2, 3, 4.
5 to 130 °C
(point 1: 70 °C, point 2: 55 °C, point 3: 40 °C, point 4: 25 °C)
4-point characteristic
Point 1: Reduced flow temperature
Reduced flow temperatures of the points 2, 3, 4 are marked by
squares below the numbers 2, 3, 4.
5 to 130 °C
(point 1: 60 °C, point 2: 40 °C, point 3: 20 °C, point 4: 20 °C)
4-point characteristic
Point 1: Return flow temperature
Return flow temperatures of the points 2, 3, 4 are marked by
squares below the numbers 2, 3, 4.
5 to 90 °C
(points 1 to 4: 65 °C)
EB 5579 EN 153
Appendix
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24
°C
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24
°C
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24
°C
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24
°C
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24
