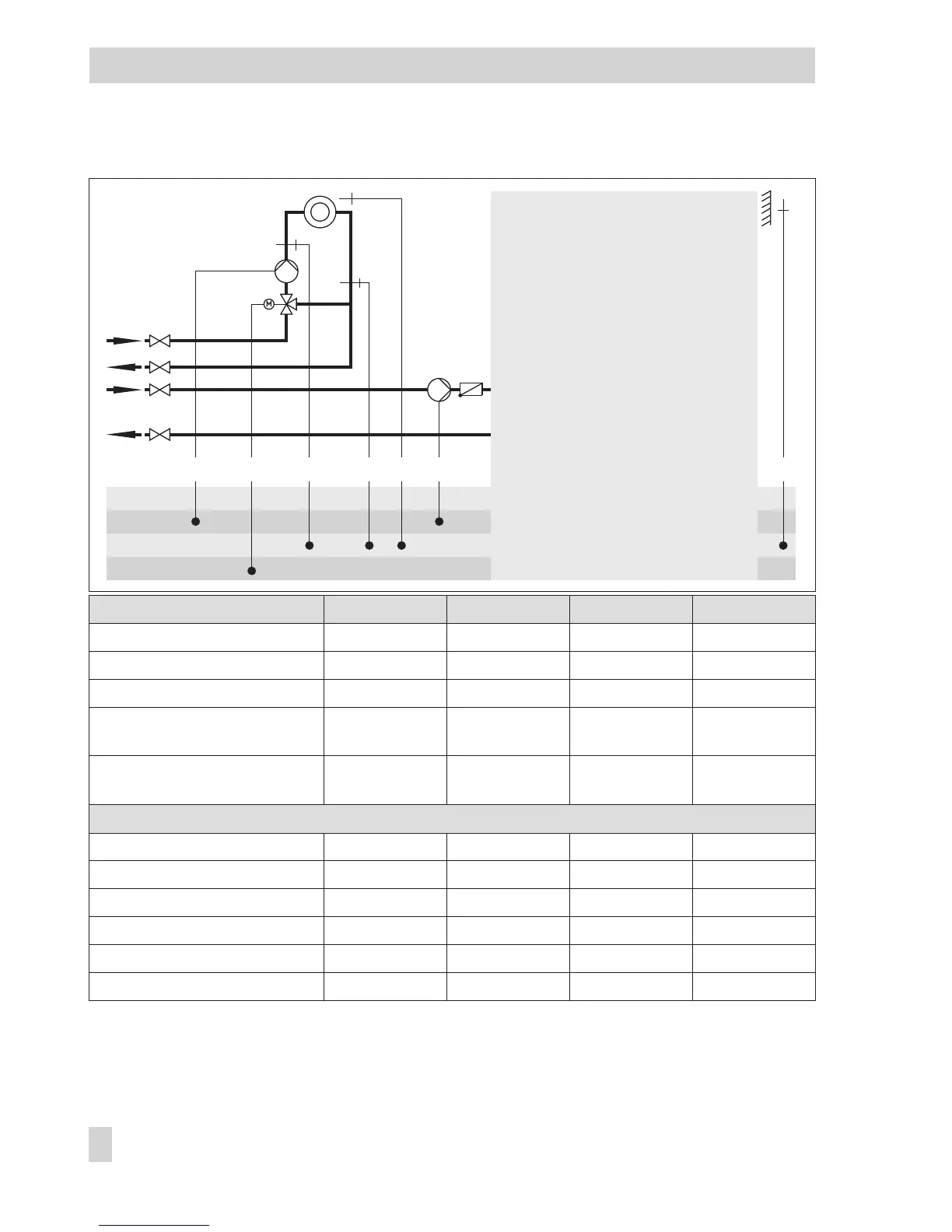

Systems Anl 1.1 to 1.4
System Anl 1.1 Anl 1.2 Anl 1.3 Anl 1.4
Type of DHW heating Type 1 Type 2 Type 3 Type 4
1)
XX = SLP UP2 SLP UP2
Integration of flow sensor VF4 Possible Possible Possible Possible
ZP integration with CO4 ->
F10 - 1 (broken line, see cover)
– Not possible – Not possible
Note –
Only second-
ary system
–
Only second-
ary system
Default settings
CO1 -> F01 - 0 (w/o RF1) - 0 (w/o RF1) - 0 (w/o RF1) - 0 (w/o RF1)
CO1 -> F02 - 1 (with AF1) - 1 (with AF1) - 1 (with AF1) - 1 (with AF1)
CO1 -> F03 - 1 (with RüF1) - 0 (w/o RüF1) - 1 (with RüF1) - 0 (w/o RüF1)
CO4 -> F01 - 1 (with SF1) - 1 (with SF1) - 1 (with SF1) - 1 (with SF1)
CO4 -> F02 - 0 (w/o SF2) - 1 (with SF2) - 0 (w/o SF2) - 1 (with SF2)
CO4 -> F05 - 0 (w/o VF4) - 0 (w/o VF4) - 0 (w/o VF4) - 0 (w/o VF4)
32 EB 5579 EN
Systems
UP1 XX
1)
AF1 RK1/Y1 VF1 RüF1 RF1
BE
BA
AE
AA
DHW
heating
Unfold back cover!
