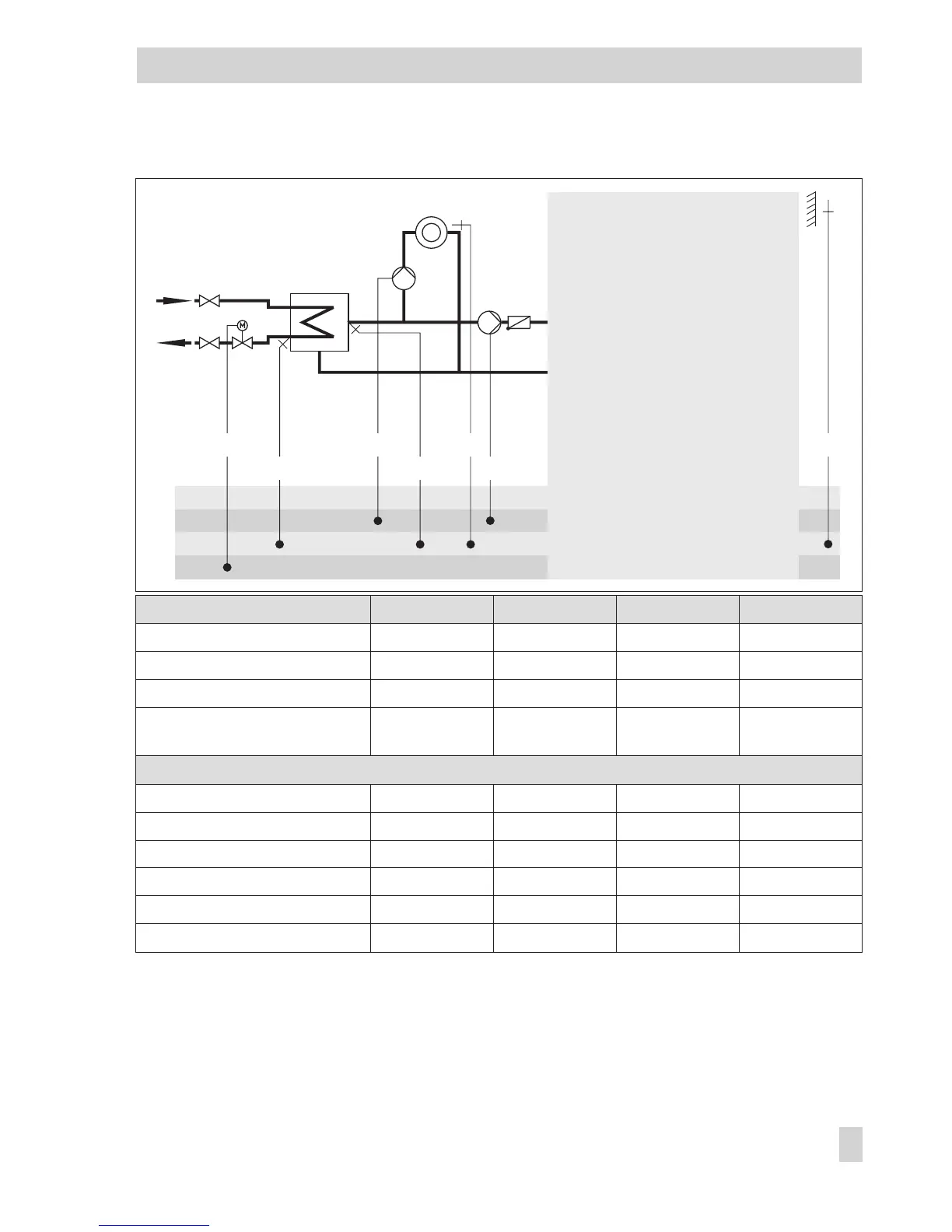

Systems Anl 2.1 to 2.4
System Anl 2.1 Anl 2.2 Anl 2.3 Anl 2.4
Type of DHW heating Type 1 Type 2 Type 3 Type 4
1)
XX = SLP UP2 SLP UP2
Integration of flow sensor VF4 Not possible Possible Not possible Possible
ZP integration with CO4 ->
F10 - 1 (broken line, see cover)
– Not possible – Not possible
Default settings
CO1 -> F01 - 0 (w/o RF1) - 0 (w/o RF1) - 0 (w/o RF1) - 0 (w/o RF1)
CO1 -> F02 - 1 (with AF1) - 1 (with AF1) - 1 (with AF1) - 1 (with AF1)
CO1 -> F03 - 1 (with RüF1) - 1 (with RüF1) - 1 (with RüF1) - 1 (with RüF1)
CO4 -> F01 - 1 (with SF1) - 1 (with SF1) - 1 (with SF1) - 1 (with SF1)
CO4 -> F02 - 0 (w/o SF2) - 1 (with SF2) - 0 (w/o SF2) - 1 (with SF2)
CO4 -> F05 - 0 (w/o VF4) - 0 (w/o VF4)
EB 5579 EN 37
Systems
BE
BA
AE
AA
AF1
RüF1 VF1
UP1RK1/Y1 RF1
XX
1)
DHW
heating
Unfold back cover!
