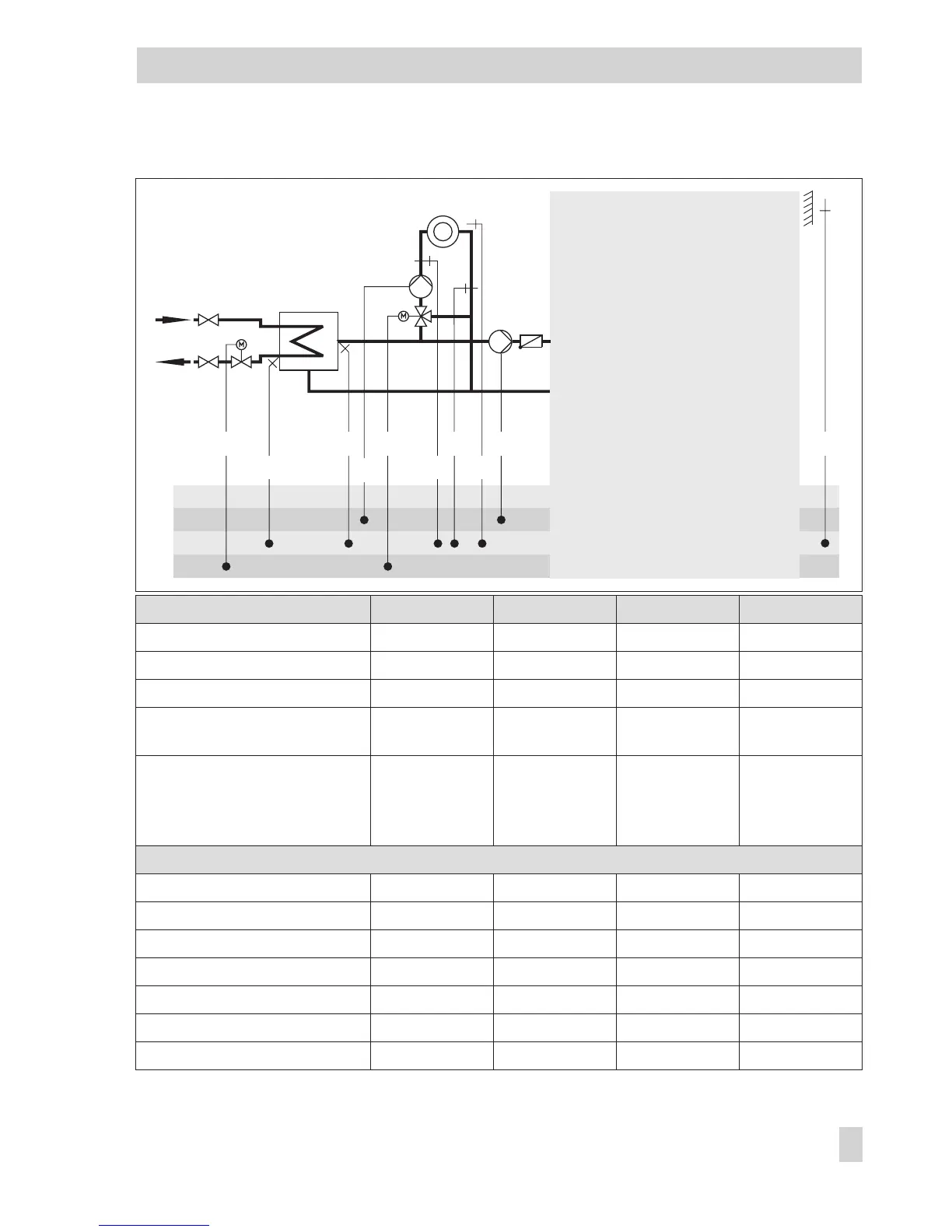

Systems Anl 3.1 to 3.4
System Anl 3.1 Anl 3.2 Anl 3.3 Anl 3.4
Type of DHW heating Type 1 Type 2 Type 3 Type 4
1)
XX = SLP UP1 SLP UP1
Integration of flow sensor VF4 Not possible Possible Not possible Possible
ZP integration with CO4 ->
F10 - 1 (broken line, see cover)
– Not possible – Not possible
Note –
–
Binary output
BA9 replaced
by UP1
Three-step signal
Rk2 only with
C05->F18-1
(BA9 repl. UP3)
Default settings
CO1 -> F02 - 1 (with AF1) - 1 (with AF1) - 1 (with AF1) - 1 (with AF1)
CO1 -> F03 - 1 (with RüF1) - 1 (with RüF1) - 1 (with RüF1) - 1 (with RüF1)
CO2 -> F01 - 0 (w/o RF2) - 0 (w/o RF2) - 0 (w/o RF2) - 0 (w/o RF2)
CO2 -> F03 - 0 (w/o RüF2) - 0 (w/o RüF2) - 0 (w/o RüF2) - 0 (w/o RüF2)
CO4 -> F01 - 1 (with SF1) - 1 (with SF1) - 1 (with SF1) - 1 (with SF1)
CO4 -> F02 - 0 (w/o SF2) - 1 (with SF2) - 0 (w/o SF2) - 1 (with SF2)
CO4 -> F05 - 0 (w/o VF4) - 0 (w/o VF4)
EB 5579 EN 39
Systems
BE
BA
AE
AA
AF1
RüF1
VF1
UP2
RK2/Y2RK1/Y1
RF2
VF2
RüF2 XX
1)
DHW
heating
Unfold back cover!
