Samson TROVIS 5579 - Page 48

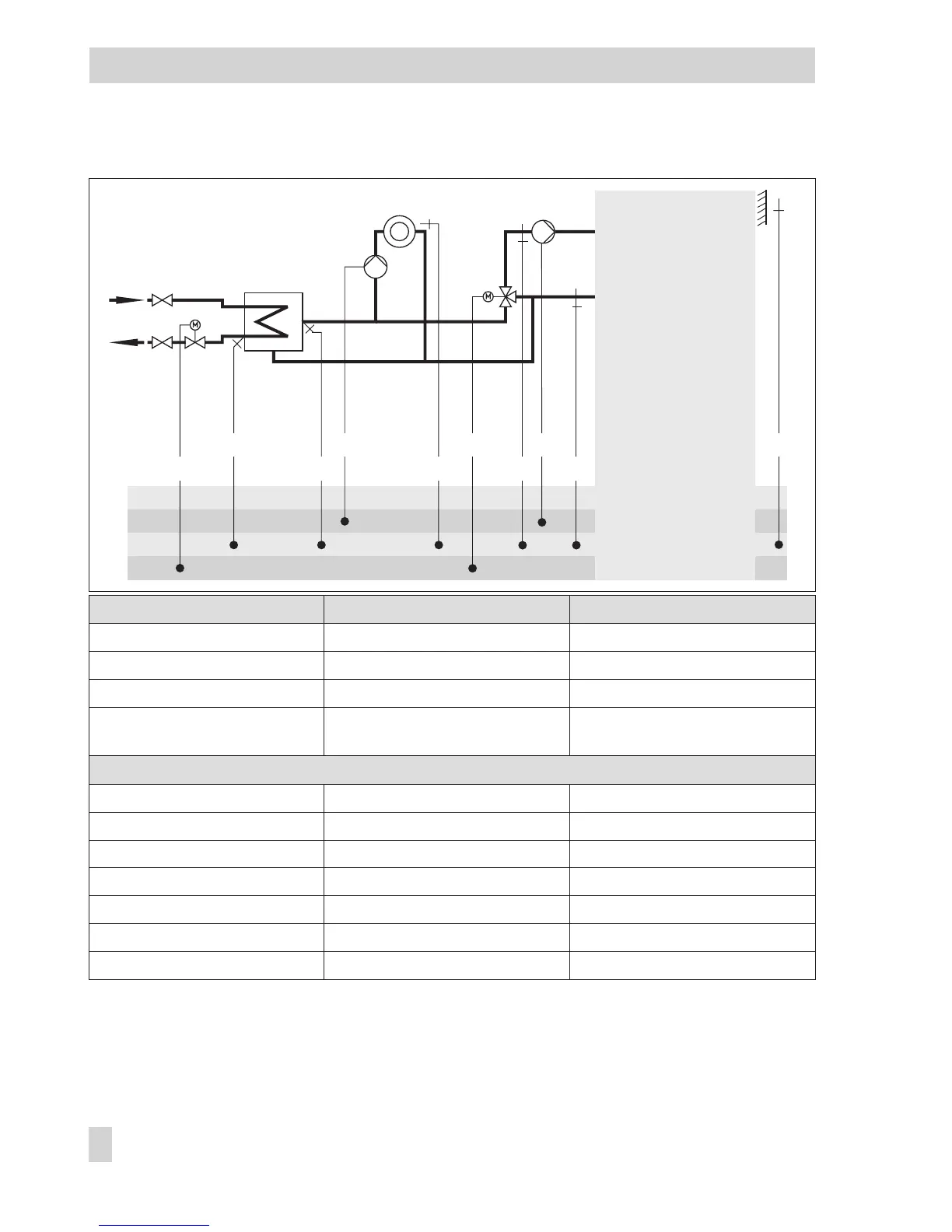

Systems Anl 8.1 and 8.2
System Anl 8.1 Anl 8.2
Type of DHW heating Type 1 Type 2
1)
XX = SLP UP2
Integration of VF4 Not possible Possible
ZP integration with CO4 ->
F10 - 1 (broken line, see cover)
––
Default settings
CO1 -> F01 - 0 (without RF1) - 0 (without RF1)
CO1 -> F02 - 1 (with AF1) - 1 (with AF1)
CO1 -> F03 - 1 (with RüF1) - 1 (with RüF1)
CO4 -> F01 - 1 (with SF1) - 1 (with SF1)
CO4 -> F02 - 0 (without SF2) - 1 (with SF2)
CO4 -> F03 - 0 (without RüF2) - 0 (without RüF2)
CO4 -> F05 - 0 (without VF4)
48 EB 5579 EN
Systems
BE
BA
AE
AA
AF1
RüF1
VF1
UP1
RK1/Y1 RF1
RK2/Y2
VF2 RüF2
XX
1
)
DHW heating
Unfold
back cover!
