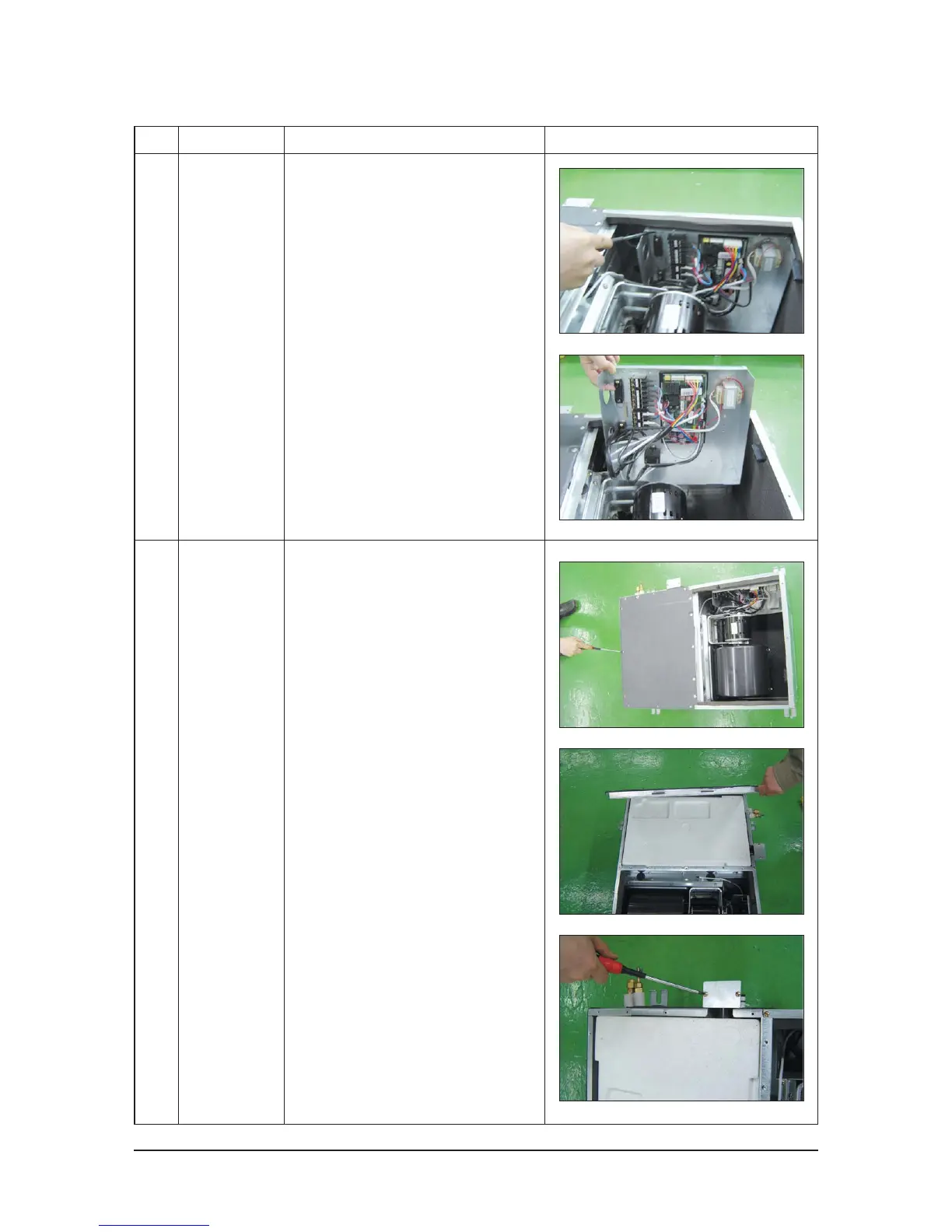

Disassembly and Reassembly
Samsung Electronics4-45
No Parts Procedure Remark
3
Ass'y Drain Panel
3) Disassemble the indicating screws.
4) Hold the Ass'y Control In by hand to lift up
and remove it as shown in picture.
1) Disassemble the indicating screws and
separate the Cabinet-Top.
2) Disassemble the indicating screws and
separate the Cover-Holder.
