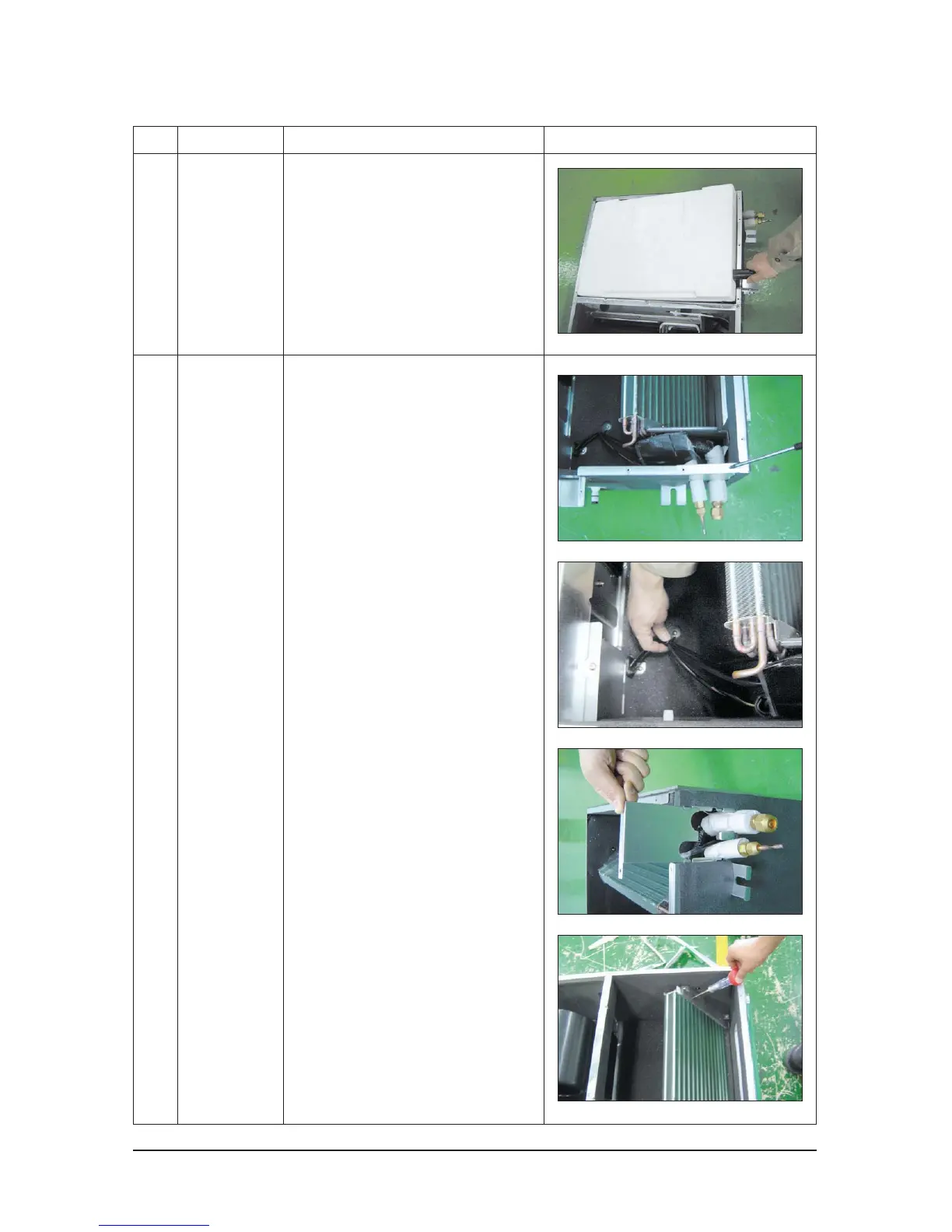

Disassembly and Reassembly
4-46Samsung Electronics
No Parts Procedure Remark
4 Ass'y Evap
3) Separate the Ass'y Drain Panel as shown
in picture.
1) Disassemble the indicating screw and
separate wire and Cover-Pipe.
2) Disassemble the indicating screws.
