Disassembly and Reassembly
4-64Samsung Electronics
No Parts Procedure Remark

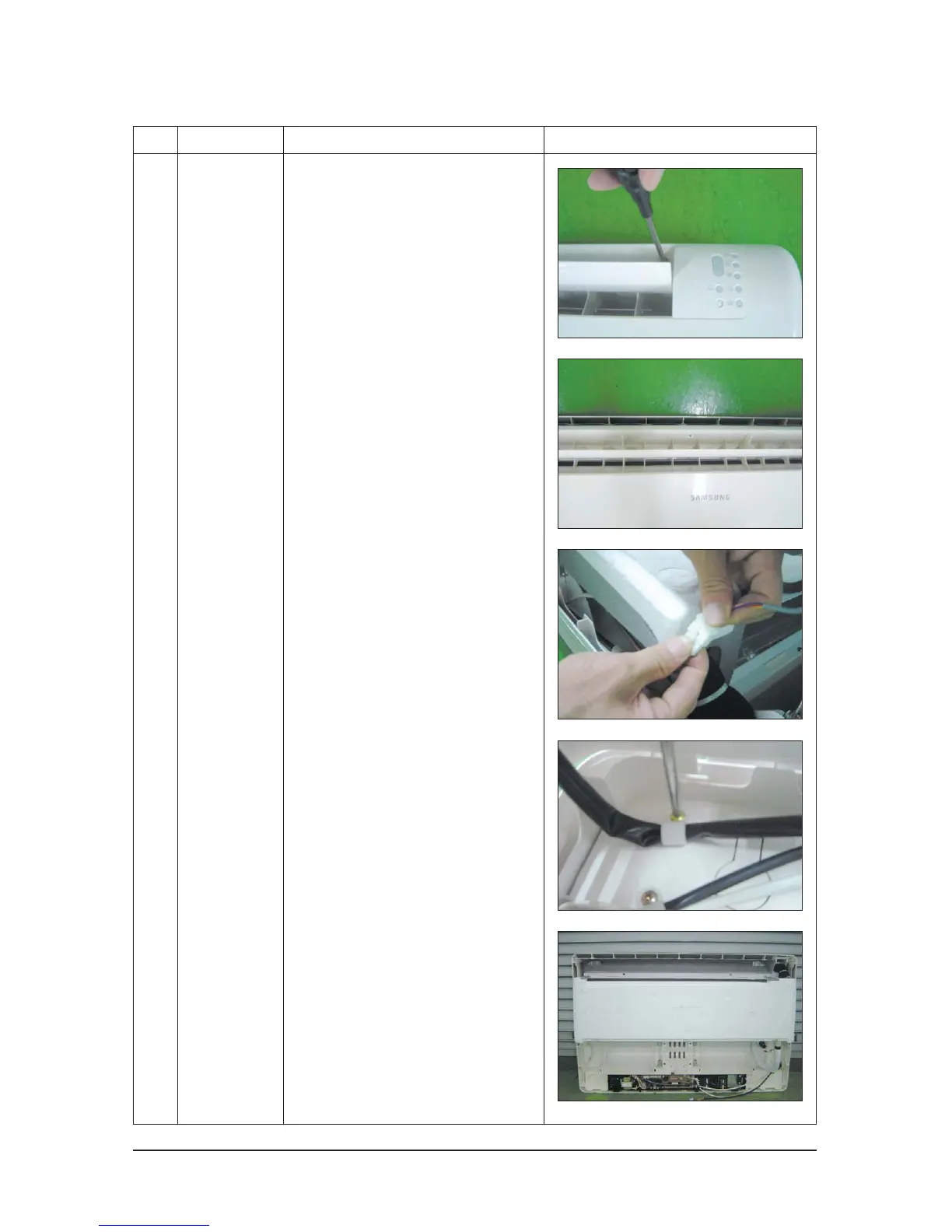

4) Remove the screws of Front Side.
5) Disassemble the assembly Front
Cover Part.
6) Disconnect the Step Motor wire as
shown in picture.
7) Remove the wire clamp fixed in Base
Part.
8) Remove the Front Cover assembly
completely.
