Disassembly and Reassembly
Samsung Electronics4-9
No Parts Procedure Remark
7
8

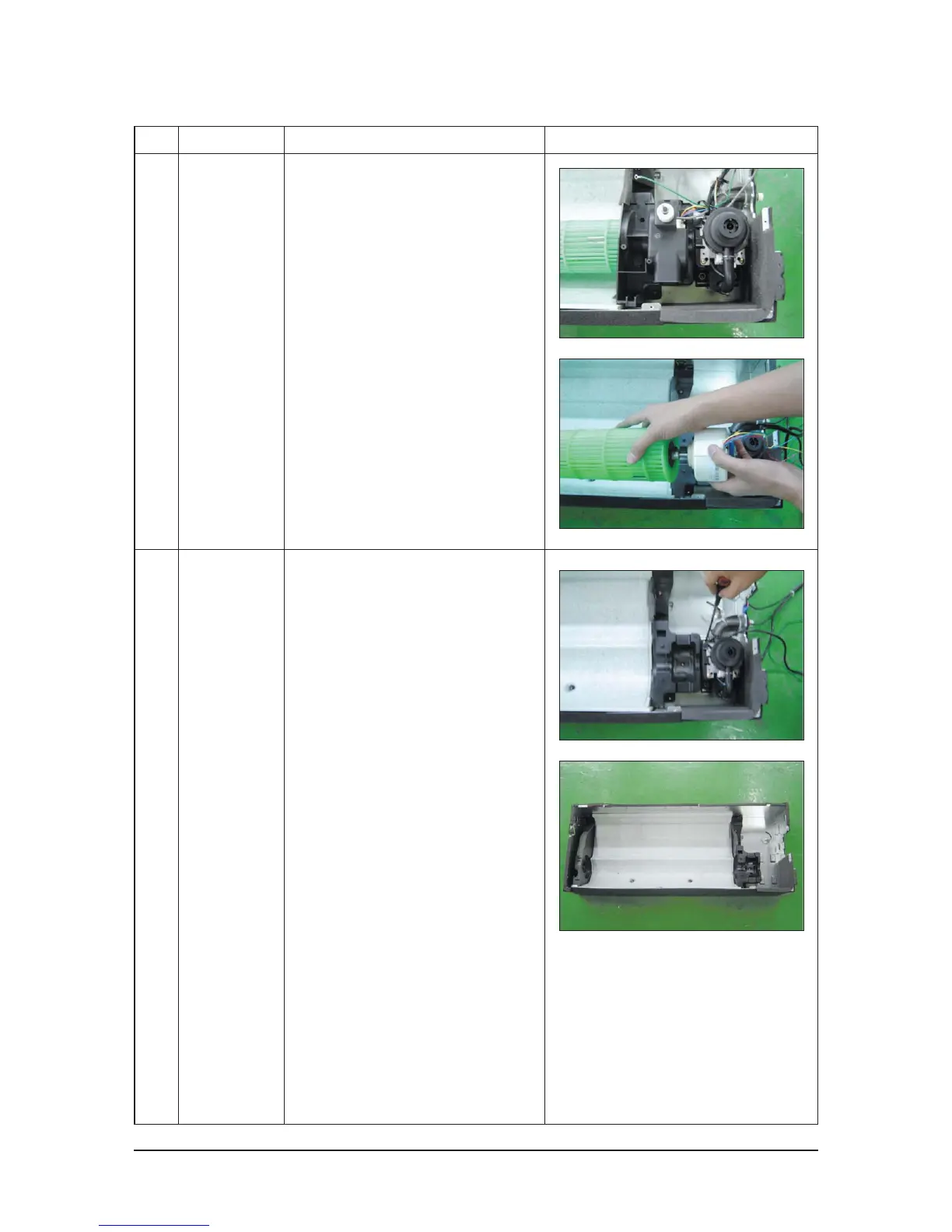

Ass'y Cross Fan
Ass'y Drain Pump
1) Disassemble the screws of Cover
Fan Motor and separate Cover Fan Motor.
2) Separate Ass'y Cross Fan as shown in
picture.
1) Disassemble indicating screws as shown
in picture.
2) Separate Drain Hose and separate
Ass'y Drain Pump as shown in pictures.
