Disassembly and Reassembly
Samsung Electronics4-19

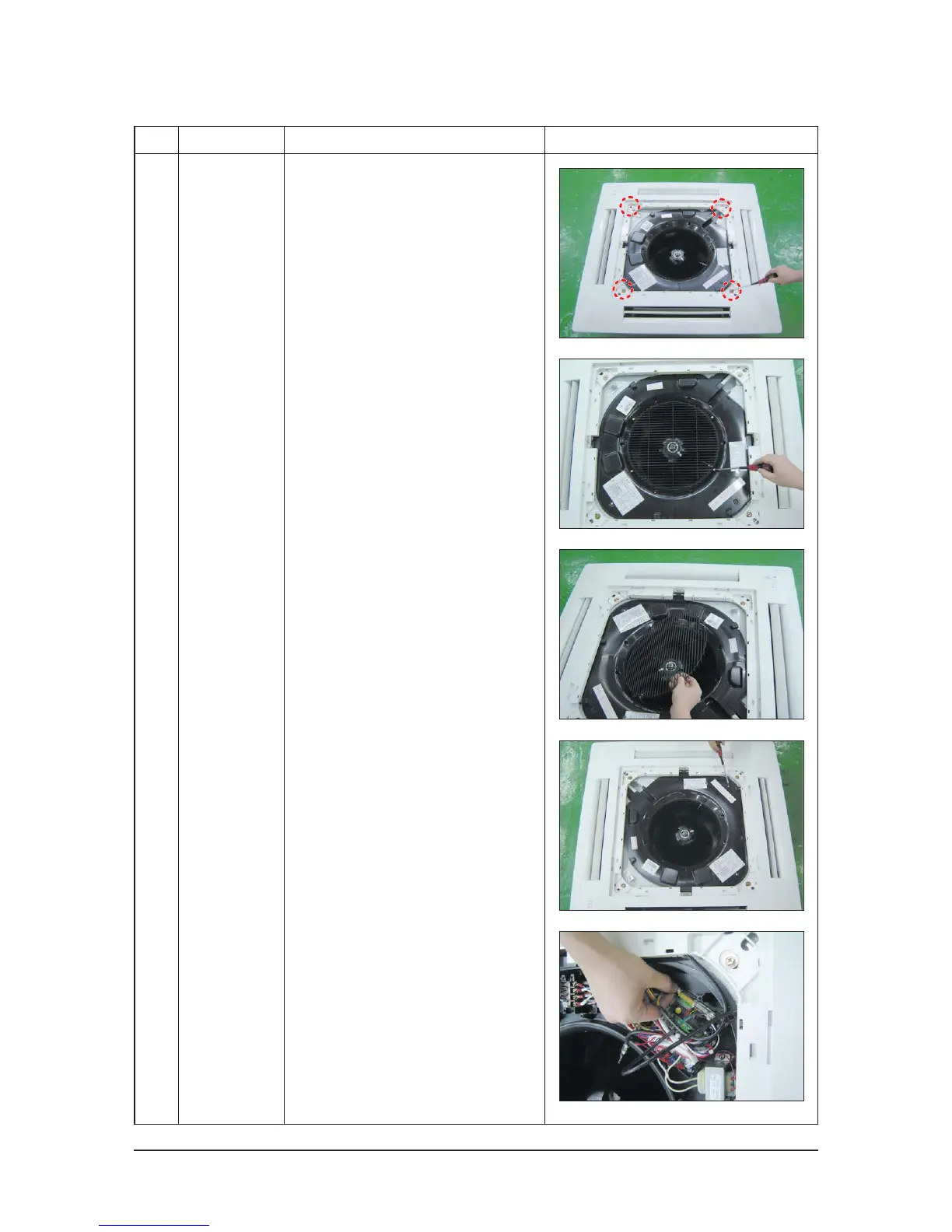

No Parts Procedure Remark
4) Loosen 4 bolts.
5) After loosening fixing bolts on the
safety net, remove the net.
6) After loosening fixing bolts on the cover
of the Electronic Component part,
separate the cover.
7) Disassemble the 3 cables between the
indoor unit and the Panel.
– Stepping Motor Connector
– Remote control receiver connector
(In case of new Panel, remove
2 pieces.)
