Samsung DVM Plus 2 Series User Manual

Disassembly and Reassembly
4-20Samsung Electronics

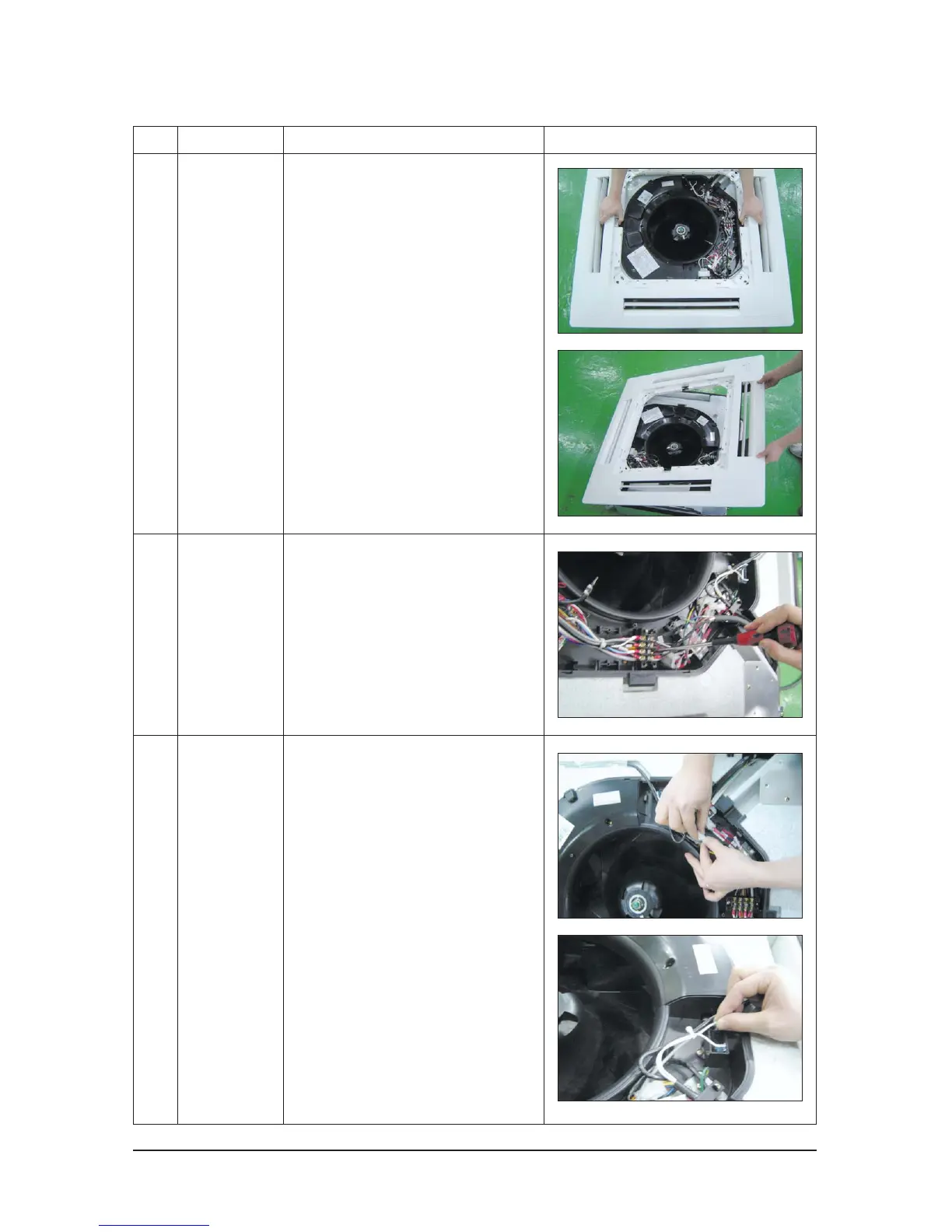

No Parts Procedure Remark
2
3
Electronic Part
– Indoor&Outdoor
Connecting
Cable
Fan
&
Motor
8) Hold on the hooks on both sides
of the indoor unit and disassemble the
Front Panel.
9) Take away the disassembled Panel out
of the Indoor Unit.
1) Disconnect all the indoor and outdoor
cables connected to the Terminal Board.
1) Disassemble the fan motor wire
connector, thermistor wire connector,
and drain pump wire connector.
2) Disassemble the wire connector in the
Capacitor.
