Disassembly and Reassembly
Samsung Electronics4-25

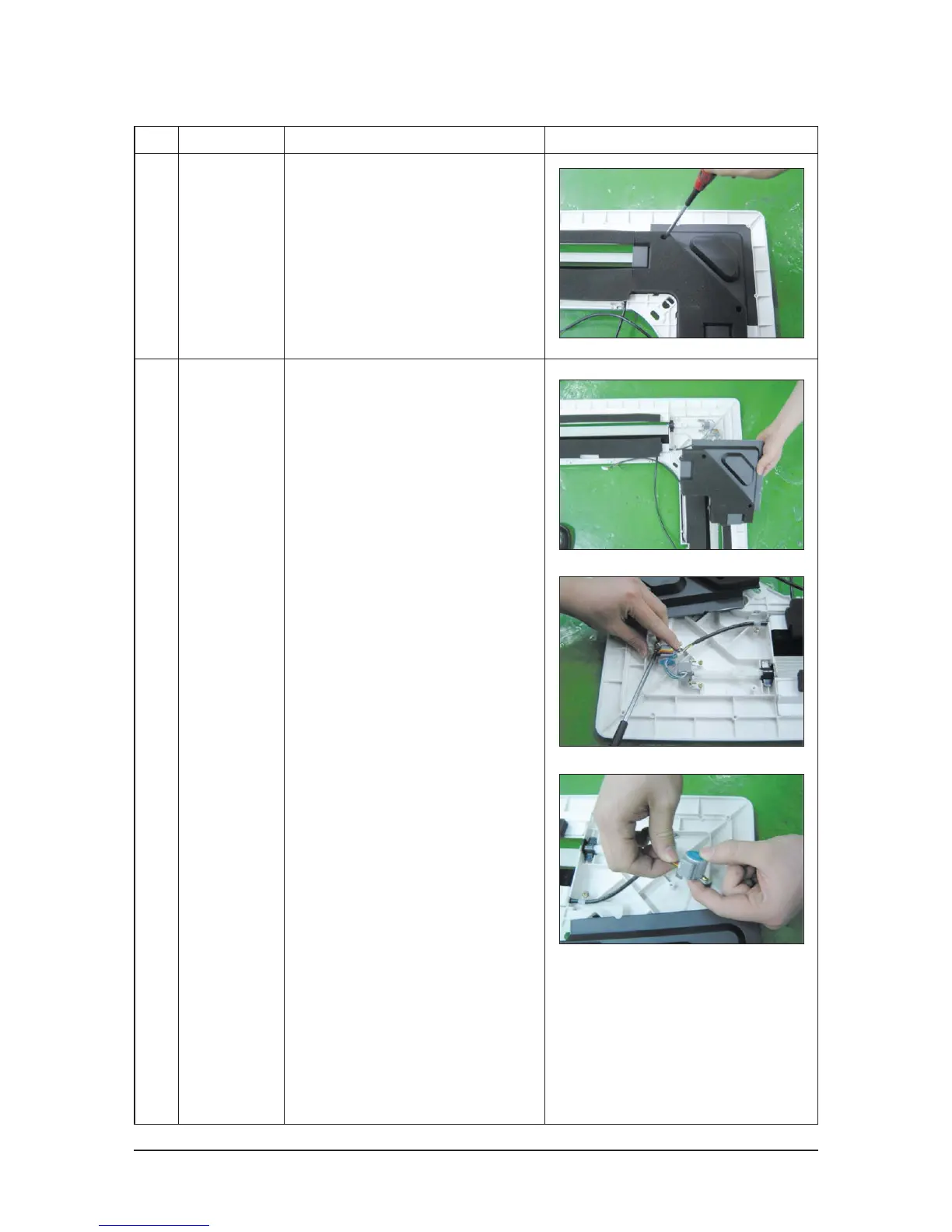

No Parts Procedure Remark
6
7
Remote Control
Receiver
Stepping Motor
1) After removing 3 fixing screws from the
Remote Control Receiver, separate it from
the Panel.
1) Separate it by loosening screws.
2) Loosen the Motor fixing screws, remove
the Blade-H.
3) Separate the Motor from the Motor
Housing and remove the Motor
Connector.
