2.ProductSpecicationsandDescription
2.2.5.FeedingSystem
ThissectiondescribeshowthesystempicksuppaperfromthePapertrayorMulti-Purpose(MP)trayandtransportsittothe
transferposition.ThepaperfeedingsystemmainlyconsistsofthePickuproller,Registrationroller,Transferroller,Feed
roller,Drivesystemforthesecomponents,andmanysensors.
2.2.5.1.FeedingSystemOverview

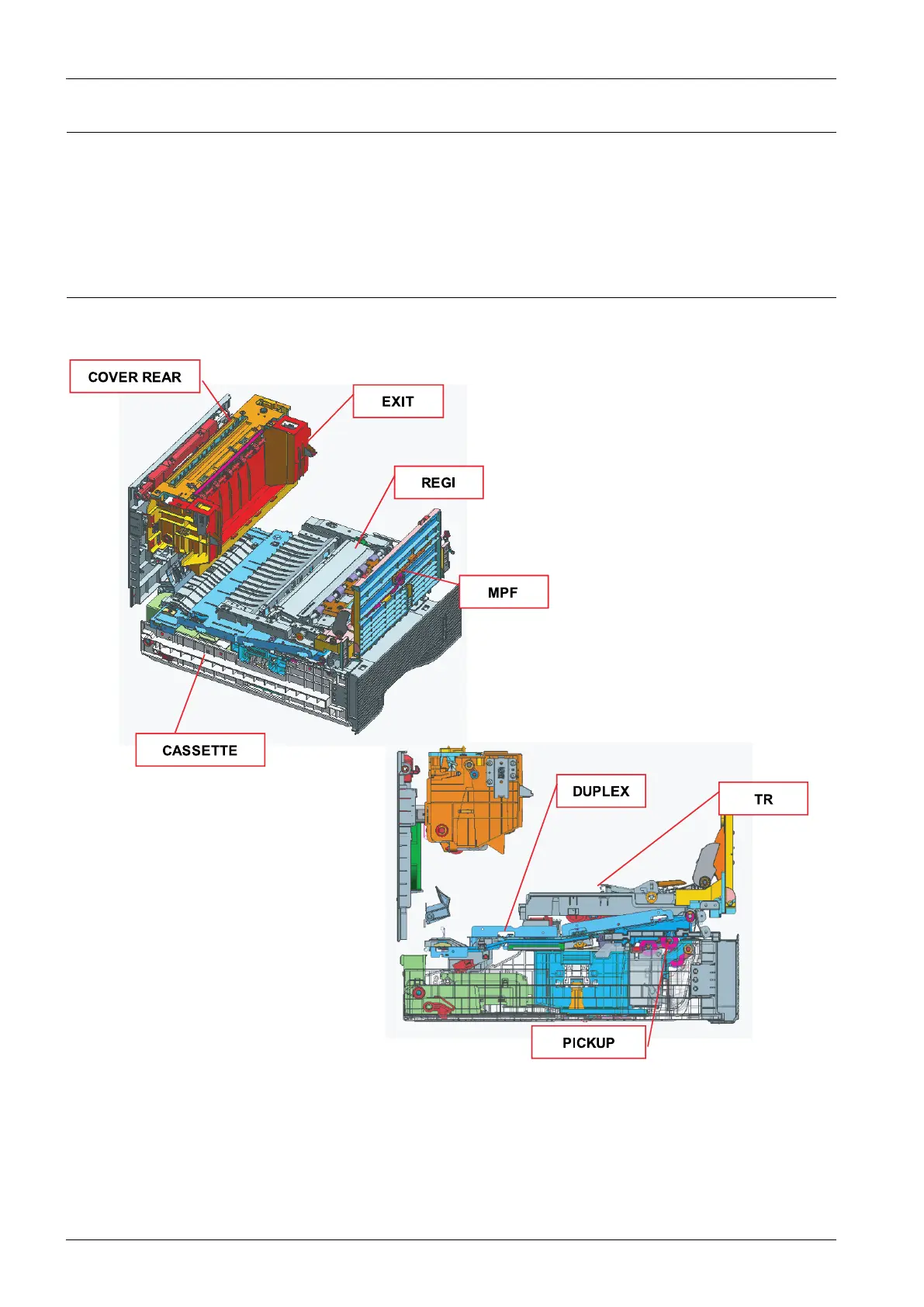

ThefollowingdiagramsdisplaythefeedingsystemforML-451x/501xseries.
EXIT
COVER RE AR
RE GI
MP F
CAS S E TTE
DUP LE X
TR
P ICKUP
