2.2.9.2.MainDriveUnit(OPC,DEVE,Toner,Fuser,Regi.)

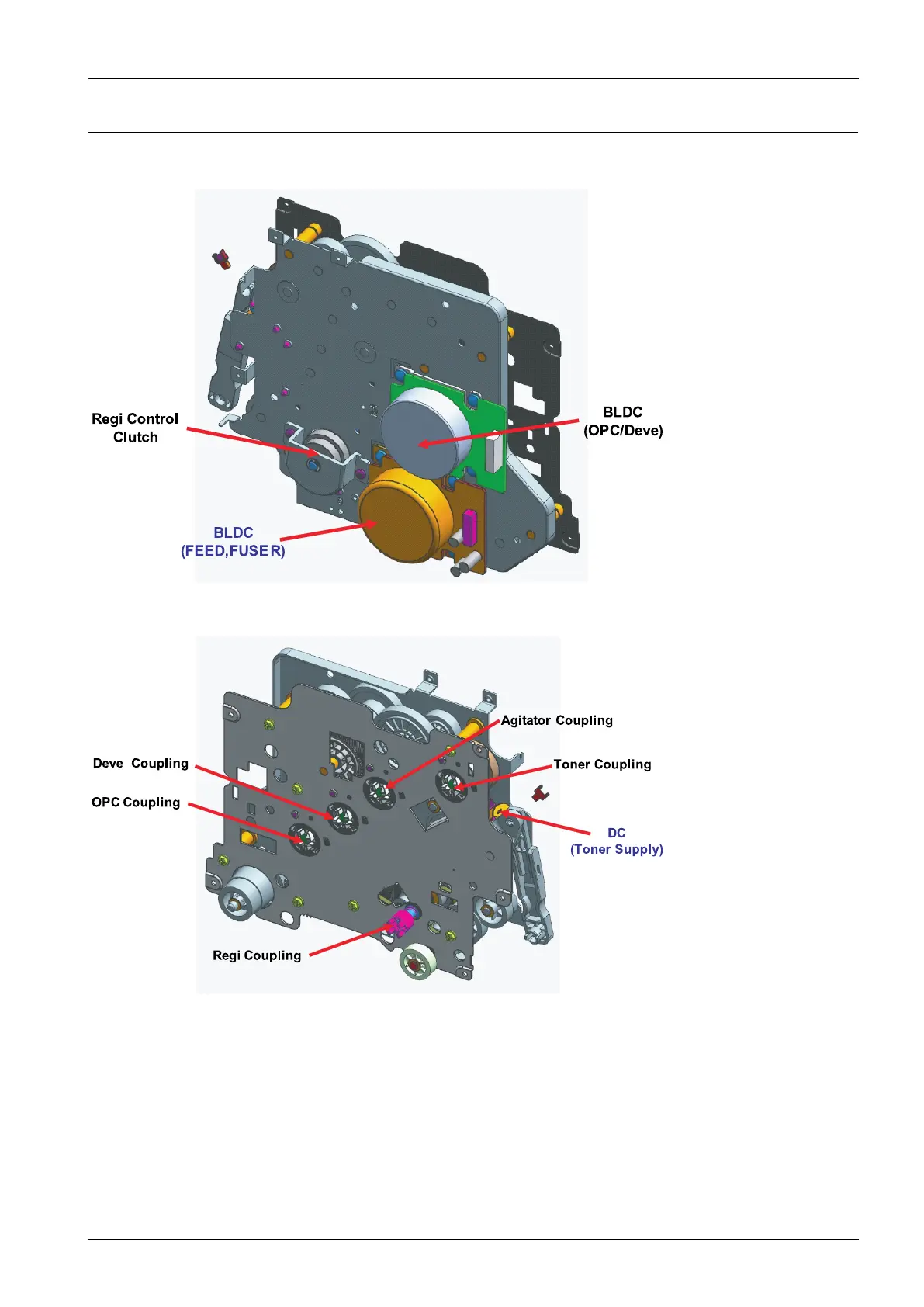

FrontView
BLDC
(FEED,FUS E R)
BLDC
(OP C/Deve)
Re g i Co n tro l
Clu tch
RearView
OP C Co u p lin g
Deve Co u p lin g
Re g i Co u p lin g
DC
(Toner S u p ply)
Agita to r Co u p lin g
To n er Co u p lin g
•Information
-PartCode:JC93-00348A[DRIVEMAIN]
