3.Wiring 3-19
• Output wiring should not touch with case.
Otherwise, it may cause an GND-fault or a short-circuit.
• Do not connect the phase advanced capacitor, LC, or RC noise filter to
the output side of Moscon-E7.
3-20 MOSCON-E7 User’s Manual
3.8 Grounding
• Ground the ground terminal.
• Never ground the MOSCON-E7 in common with welding machines,
motors, or other electrical equipment. Separate the ground cable from
the high voltage equipment wiring.
• Use the GND cable specified in the technical standards for electrical
facilities. Wire the cable as short as possible.

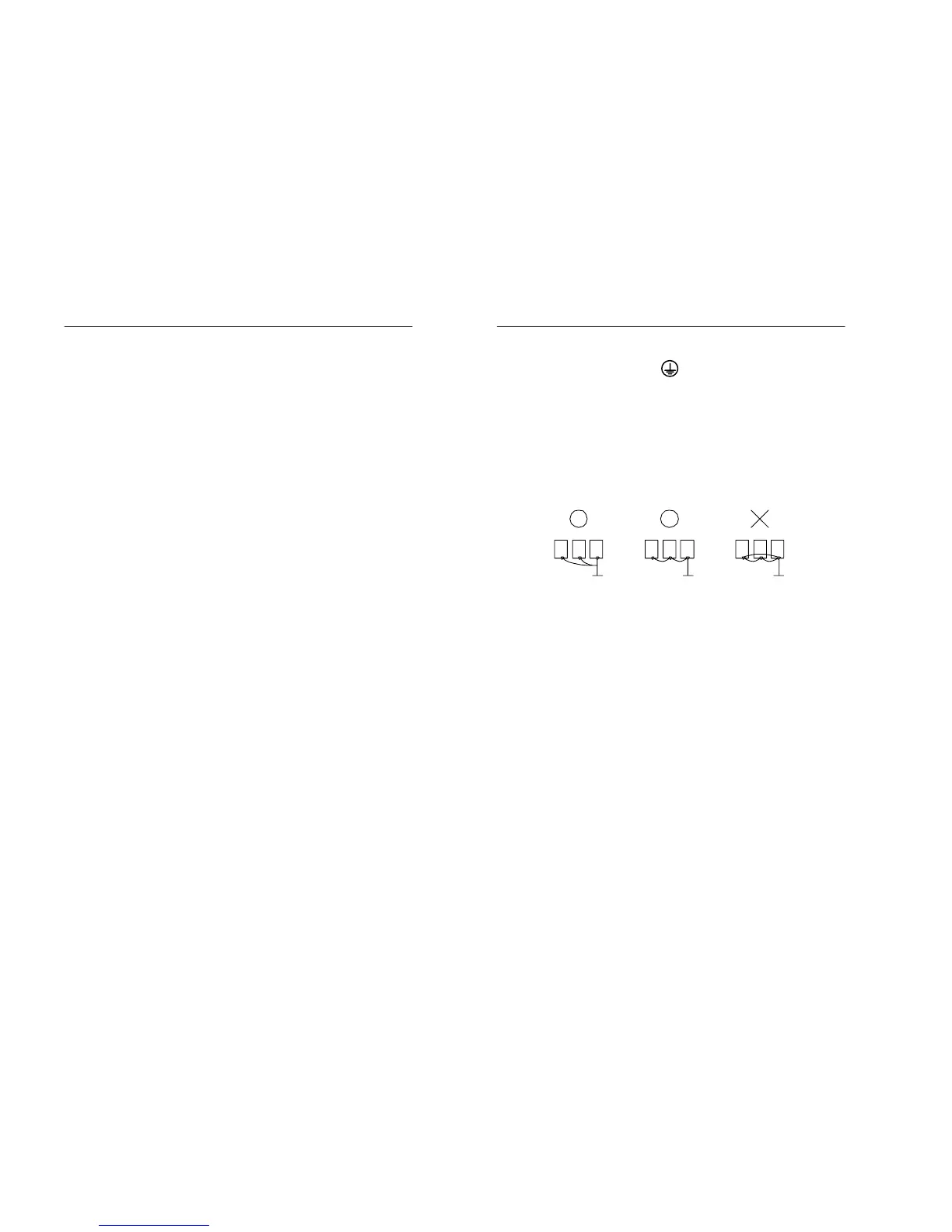

• When several MOSCON-E7 are used, ground each unit as shown
below. Do not loop the ground as example ⓒ.
ⓐ양호 ⓑ양호 ⓒ나쁨
Figure 3.12 Multiple grounding
Good
Good
Poor
