5. Parameters 5-21
5.4.6 Configuring S-curve time : F3.01
Parameter
No.
Name Unit
Setting
range
Factory
Setting
Changeable
during
operation
F3.01 S-Curve time 0.01sec 0.00~2.50 0.20 O
• F3.01 can be used to set the S-curve pattern time of the accel/decel
changing points to reduce shock caused by abrupt stopping and starting.

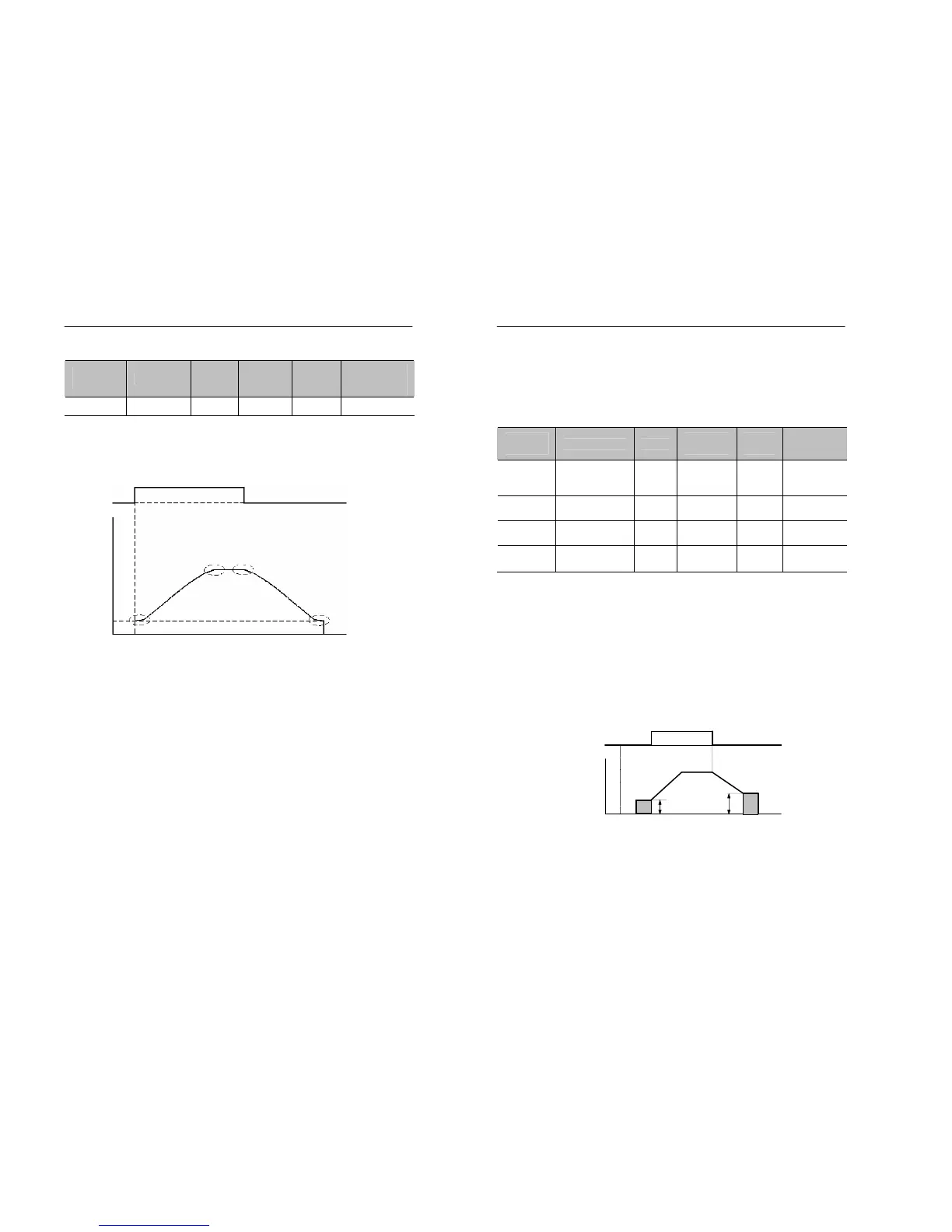

Figure 5.7 Setting S-curve characteristics
ON
Run
Command
Output
Frequency
OFF
F 3.01 F 3.01
F 3.01 F 3.01
ime
5-22 MOSCON-E7 User’s Manual
5.5 S-Parameter
5.5.1 DC Braking
5.5.1.1 Controlling DC breaking : S0.01~S0.04
Parameter
No.
Name Unit
Setting
range
Factory
Setting
Changeable
during
operation
S0.01
DC Brake
Starting
Frequency
0.01Hz 0.00 ~10.00 1.50 X
S0.02
DC Brake
Current
1% 0~ 100 50 X
S0.03
DC Braking
Time at Start
0.1sec 0.0~ 25.0 0.0 X
S0.04
DC Braking
Time at Stop
0.1sec 0.0~ 25.0 0.5 X
• S0.01 : The frequency where the DC braking starts.
It is valid only for deceleration.
• S0.02 : The level of output DC current during DC braking.
( in the percentage of rated inverter output current )
• S0.03 : Set the DC braking operation time before the motor is started.
• S0.04 : Set the DC braking operation time before the motor is stopped.
• In order to decrease the stopping time, increase DC braking current in
S0.02.
• To disable the DC braking, set DC braking time (S0.03 and S0.04) to 0.
Figure 5.8 DC braking timing chart
ON OFFRun Command
Output
Frequency
S0.03 S0.04
C0.07 S0.01
Time
