Samsung MOSCON-E7 - 5.7.3 Multi-function analog input; 5.7.3.1 Analog input form: H2.01

5. Parameters 5-45
Accel/Decel time switching command (Setting : 9)

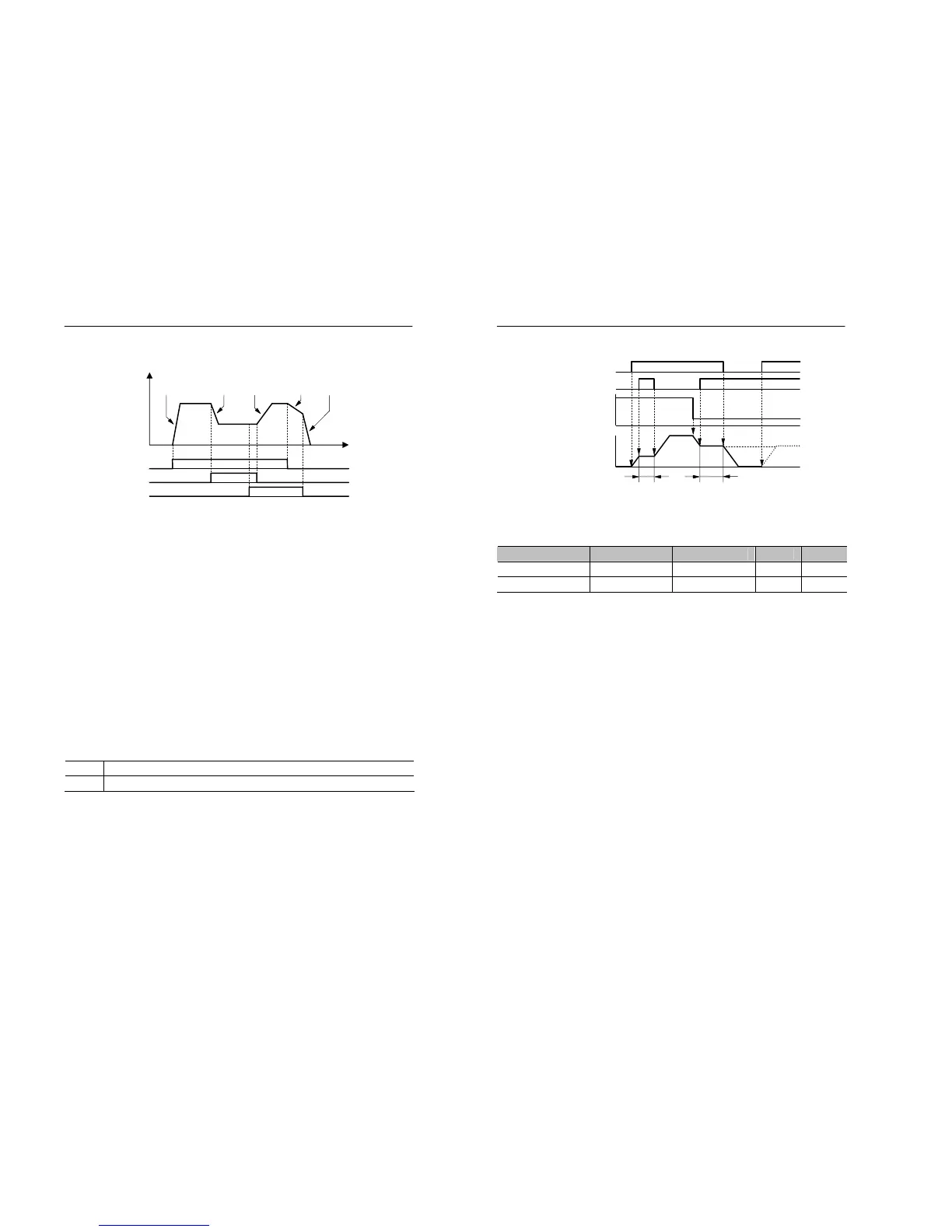

Figure 5.17 Using two accel/decel time
• Set of accel/decel times can be switched by turning ON/OFF the
accel/decel command terminals if input terminal function selection
(H0.02~H0.05) is set to “accel/decel command”.
When OFF: F2.01 (accel time 1), F2.02 (decel time 1)
When ON : F2.03 (accel time 2), F2.04 (decel time 2)
Acceleration time: Time required for output frequency to reach
from 0% to 100%.
Deceleration time: Time required for output frequency to reach
from 100% to 0%.
Holding accel/decel (Setting : 10)
OFF Normal operation or restart accel/decel.
ON Holds accel/decel and maintain the present frequency.
• The output frequency can be hold when the accel/decel holding
terminal is ON.
• The output frequency can be kept when the accel/decel holding
terminal is OFF.
Accel
Time1
F2.01
Decel
Time1
F2.02
Accel
Time2
F2.03
Decel
Time2*
F2.04
Decel
Time1*
F2.02
Output
Frequency
ON
ON
ON
Forward/Reverse
Run command
Multi-Step
Speed Reference
Accel/Decel
Time selection
T
erminal S2 TO S5
5-46 MOSCON-E7 User’s Manual
Figure 5.18 Acceleration/deceleration Jump hold
Frequency up and down command (Setting : 12~13)
Operation Acceleration Deceleration Hold Hold
Up command ON OFF ON OFF
Down command OFF ON ON OFF
• With these settings, the inverter’s output frequency can be controlled
by the multi-function inputs.
• Both setting 12 and 13 must be set when using this function.
• This function will operate only when B0.02(
Operation mode) is set to
1(
Contact input: contact 1 or 2 on terminal block).
• The upper and lower limits for the output frequency with the up/down
commands are as follows:
- Upper limit=Max. output frequency(C0.02)×High speed limit(F1.01)/100
- Lower limit=Max. output frequency(C0.02)×Low speed limit(F1.02)/100
• If a run command is input, the output frequency will be accelerated to
the lower limit when this function is used.
• If the up/down function is set, the multi-step commands 1 to 8 are
disabled.
F1.07=1
OFF
OFF
OFF
ON ON
ON ON
OFF
Run
/
Stop command
Acceleration
/
deceleration
jump hold
Frequency reference
Output frequency
F1.07=0
