OfficeServ 7400 INSTALLATION
TECHNICAL MANUAL PART 7 MAY 2010
7.2
7.1.2 Connecting an Analog Phone
Connect an analog phone to the 8SLI/8SLI2, 16SLI2, 16MWSLI, 8COMBO/8COMBO2 board
installed in the OfficeServ 7400 system.
CONNECTING TO THE 8SLI/8SLI2
Connect an analog phone to the 8SLI/8SLI2 board by using a twisted pair of AWG #24 or AWG
#26 wire.
P1 Port
Pin No. 1 2 3 4 5 6 7 8
Function PFT TIP PFT RING - SLI TIP SLI RING - - -
P2-P8 Port
Pin No. 1 2 3 4 5 6 7 8
Function - - - SLI TIP SLI RING - - -

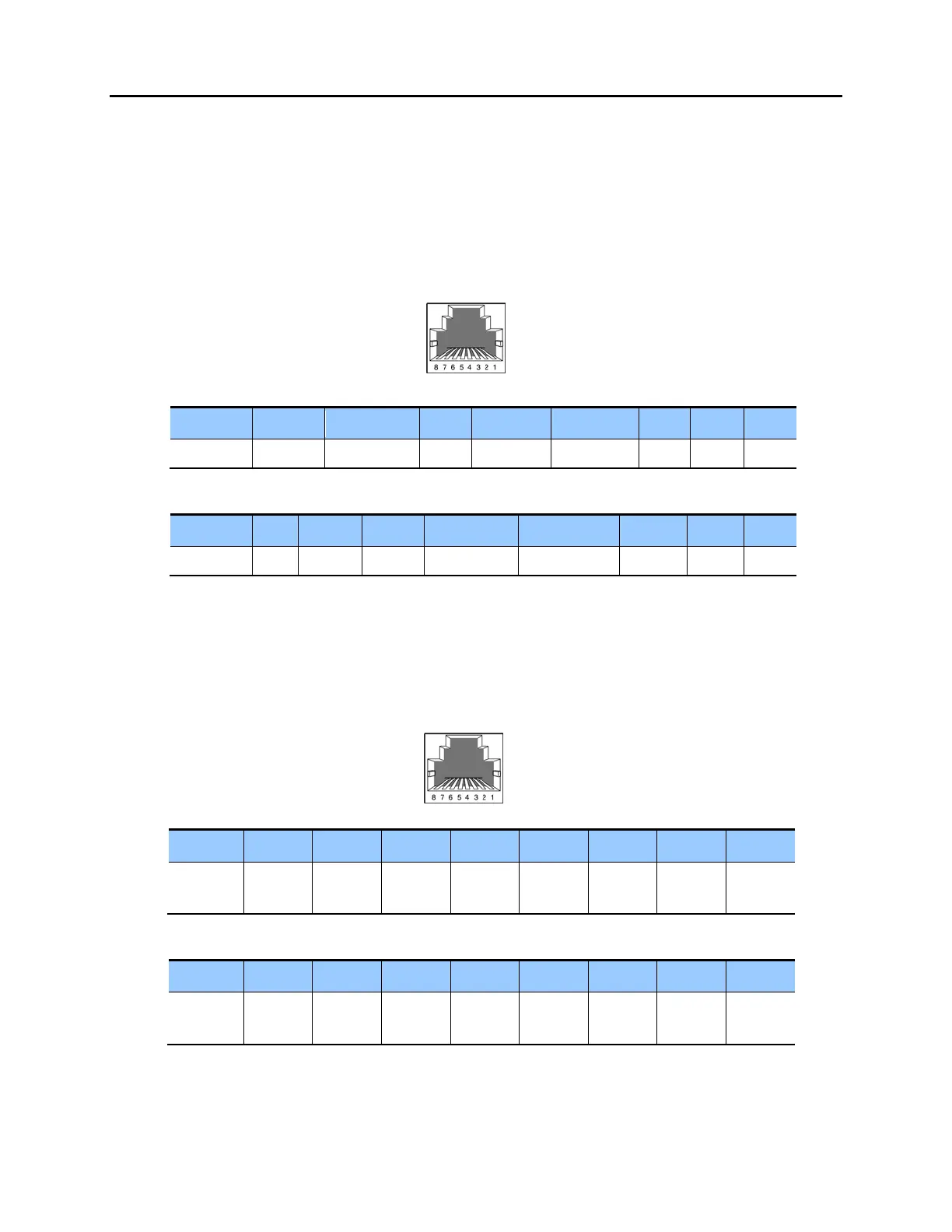

Figure 7.1 RJ-45 Port of the 8SLI
CONNECTING TO THE 16SLI2/16MWSLI
Connect an analog phone to the 16SLI2/16MWSLI by using a twisted pair of AWG #24 or AWG
#26 wires.
P1 Port
Pin No. 1 2 3 4 5 6 7 8
Function PFT
TIP
PFT
RING
- SLI 1
TIP
SLI 1
RING
- - -
P2-P16 Port
Pin No. 1 2 3 4 5 6 7 8
Function - - - SLI 2 TIP SLI 2
RING
- - -
Figure 7.2 RJ-45 Port of the 16SLI2
P1~P8 Port
(RJ-45)
P1~P16
Port
(RJ-45)
