OfficeServ 7400 INSTALLATION
TECHNICAL MANUAL PART 7 MAY 2010
7.15
Use screw holes 4 and 5 if you are mounting on dry wall with a hole in the middle for cable
access.
HOLES FOR MOUNTING SCREWS
NOTE: THE DIRECTORY CARD SLIDE TRAY IS NOT
1
23
USED FOR ATTACHING
AOM OR 64B MODULE
WITH CONNECTOR CLIP

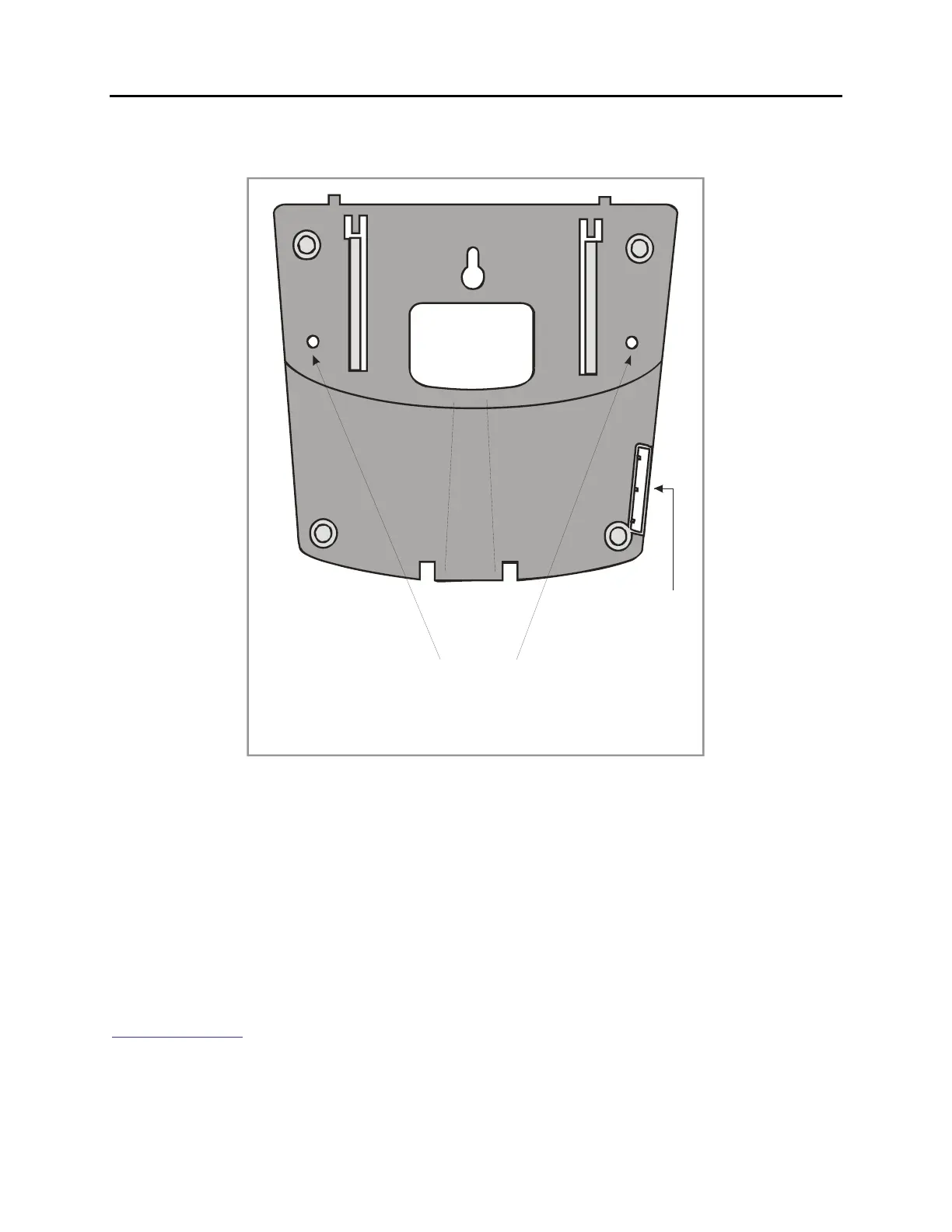

Figure 7.19 Ultra Base Wedge
Note: The directory card slide tray is not used when the keyset is wall-mounted.
WALL-MOUNTING KEYSETS WITH ULTRA BASE WEDGE
The keysets now come equipped with a new Ultra Base wedge. These base wedges are
reversible and can be used for wall-mounting however not every wall mounting scenario is
appropriate. First and foremost there is only one keyhole in the center of the base attaching
to the wall, and these base wedges cannot be used with the standard wall mount bracket
with the two buttons/pins. To wall-mount the keyset using Ultra Base wedges use screw holes
1, 2 and 3 to mount the base wedge on dry wall with the hole in the middle for cable access
(see Figure 7.19).
