Samsung OfficeServ 7400 - Page 45

OfficeServ 7400 INSTALLATION
TECHNICAL MANUAL PART 3 MAY 2010
3.29
3.3.9 8COMBO/8COMBO2
This board provides 8 ports for connecting analog stations and 8 ports for connecting Samsung
Digital Keysets. This board can go into any universal slot of any cabinet. Add as many as
needed.

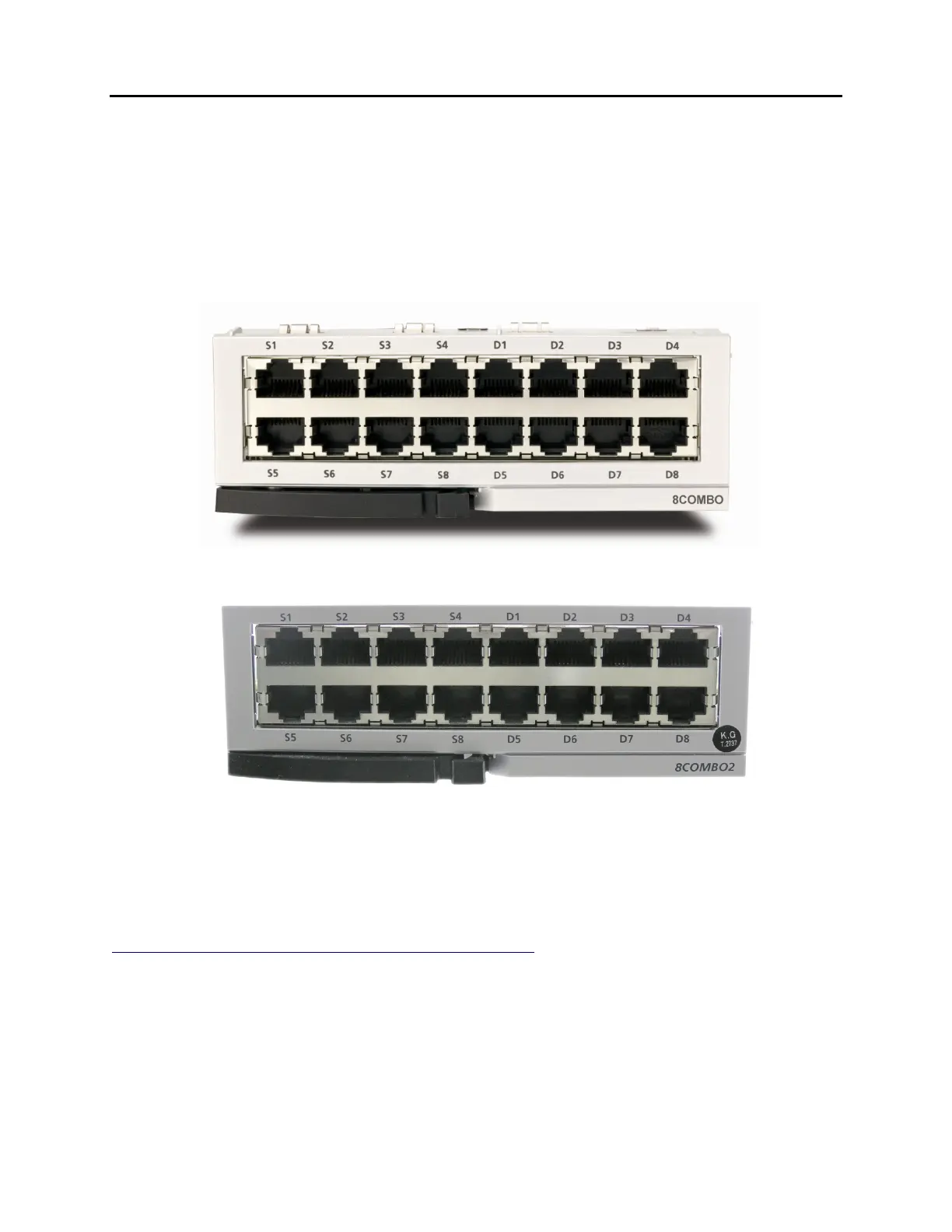

FRONT VIEW OF 8COMBO/8COMBO2
The front view of the 8COMBO/8COMBO2 board is shown below.
Figure 3.27 Front View of the 8COMBO
Figure 3.28 Front View of the 8COMBO2
 Ports S1~S8 are for analog stations only.
 Ports D1~D8 are for Samsung Digital Stations only.
See Sections 7.1.2 and 7.1.3 for Port Pinout and Wiring.
