7.4.Test Status

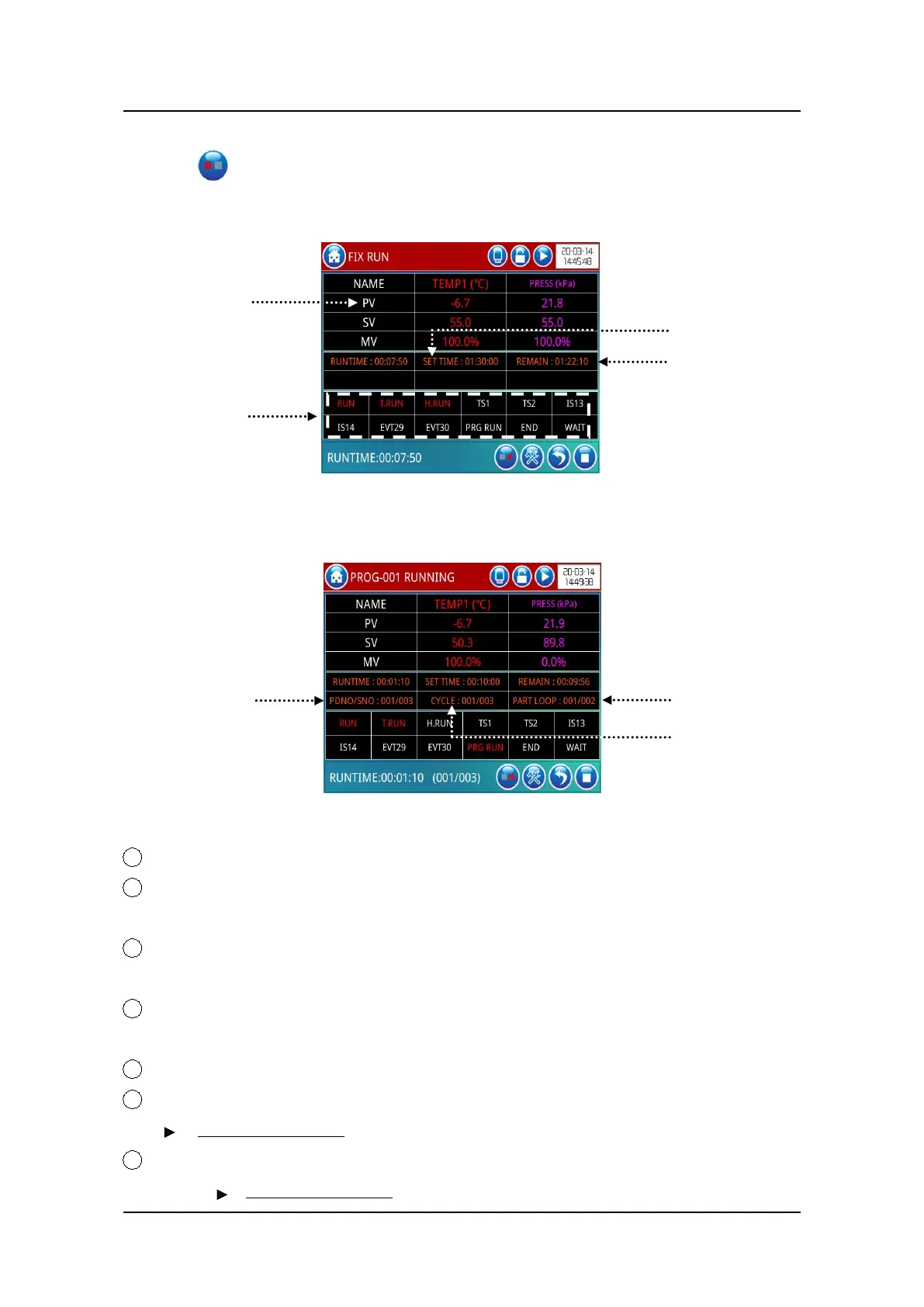

Click on button in Figure 10/12 shift to Test Status screen as Figure 17/18.
FIX Mode Status Screen
Figure 17
PROGRAM Mode Status Screen
Figure 18
1 PV: display the present test value of test.
2 Status display lamp: each of them represents a relay signal, when relay is
work, corresponding lamp will turn red.
3 Remain: in Fix mode display the remaining time of total set time, in Program
mode display the remaining time of current running segment’s set time.
4 Set time: in Fix mode display total setting time of test, in Program mode
display setting time of current running segment.
5 PTNO/SEG NO.: display current running program’s PROG. NO./ SEG. NO.
6 Cycle: display program cycle count, cycled count (001)/ cycle set count (003).
See 11.2 Loop Set
7 Part loop: display segment cycle count, cycled count (001)/ cycle set count
(002). See 11.2 Loop Set
