2. Appearance Dimension
TEMI880 Temperature ∙ Pressure Programmable Controller
Figure 2

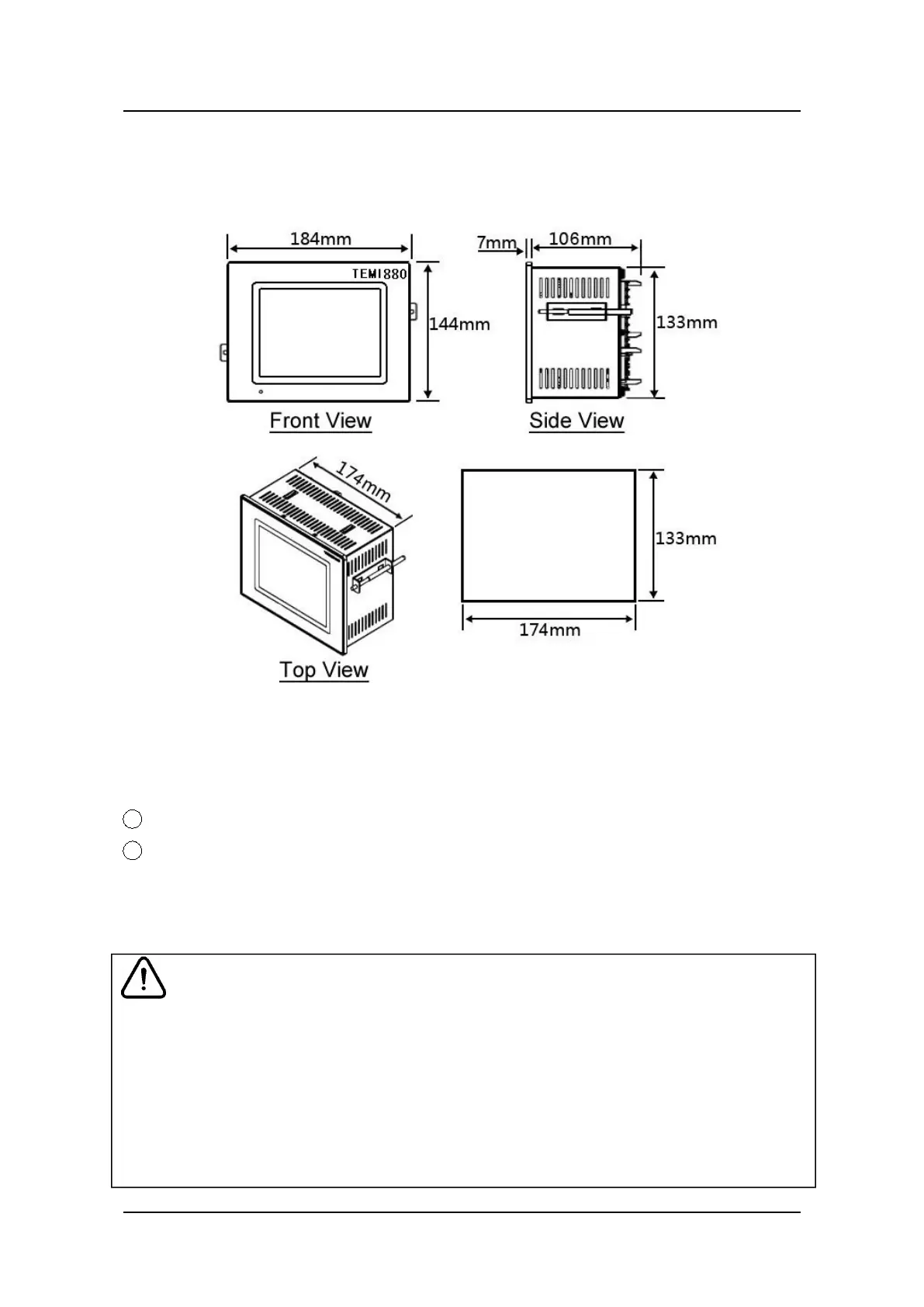

Appearance and Mounting dimension:
1 Appearance dimension: 184×144×107.7(mm) (L×H×W).
2 Mounting dimension: 173×133(mm) (L×H).
► Before install & wiring, be sure to turn off the system or else you will get an
electrical shock.
► Do not tighten the mounting screw excessively; the unit case or bracket may
be damaged.
► Make sure ground with Temp. and Press. Chamber case when install power
injection.
