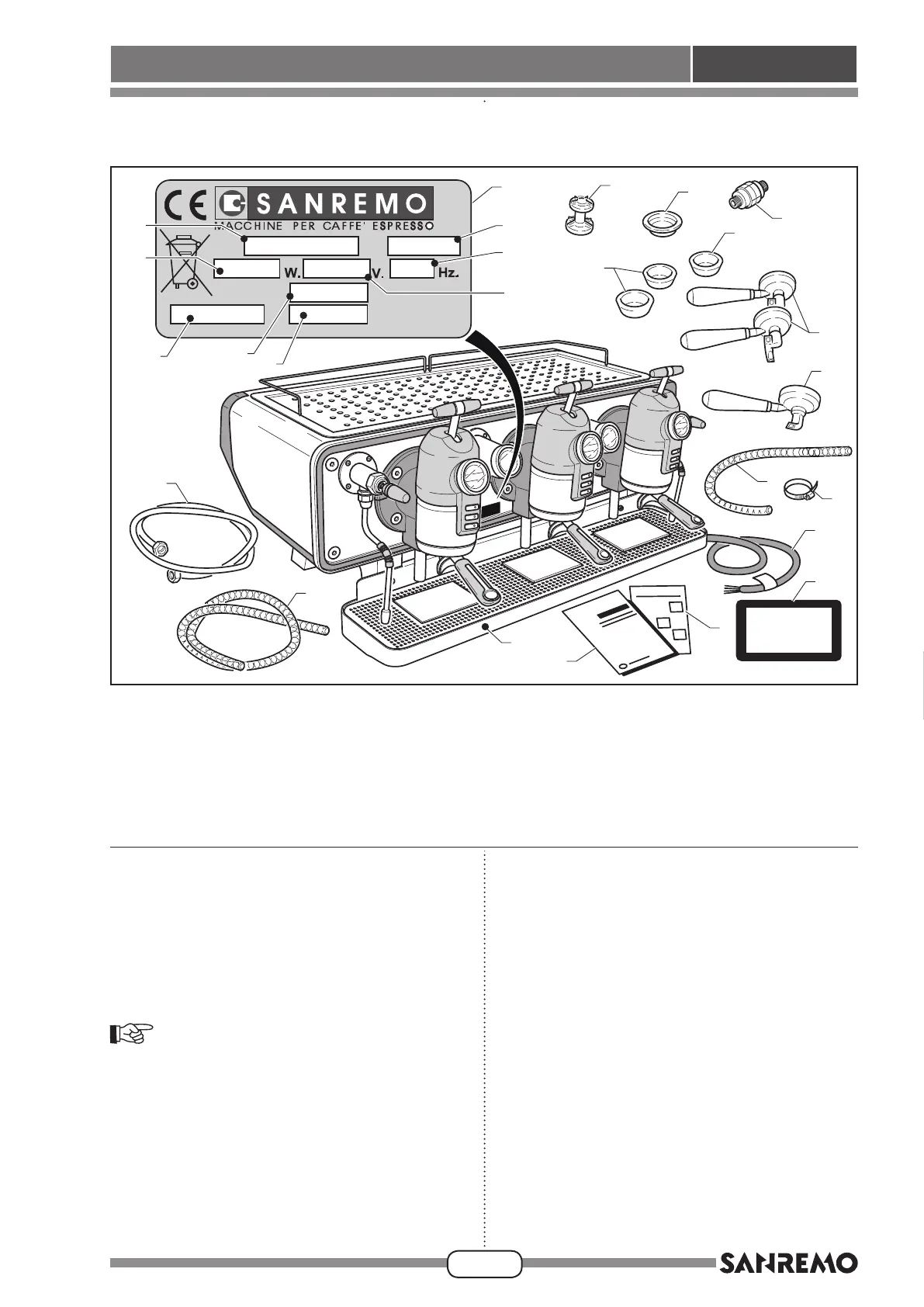

2.7 - IDENTIFICATION OF COMPONENTS (Fig. 3)
1. Coffee machine
2. Instruction manual
3. Declaration of conformity
4. Drain pipe L= 2 m
5. Intake pipe L= 2 m
6. Softener intake pipe 0.5 m
7. Presser
8. Double lter holder (2/3 pieces)
9. Single lter holder
10. Double lter (4/6 pieces)
11. Single lter
12. Impurity lter
13. Blind lter
14. Power supply cable
15. Strap
16. Tablet
2.8 - IDENTIFICATION OF THE MA-
CHINE
- The machine is identied by the serial number.
- The serial number must be provided to the Dealer if
maintenance or spare parts requests are made.
2.8.a - Positioning of the plate
IMPORTANT:
The machine plate is the only legal means
of identication, therefore it must be kept
in good conditions, it must not be removed
and/or its data must not be altered. The
customer is liable for any tampering.
2.8.b - Identication plate
The identication plate bears the following data:
A = Model.
B = Serial number.
C = Year of manufacture.
D = Power supply voltage
E = Frequency
F = Power
G = Pump pressure
H = Mains pressure
