Sanremo Opera - Connections; A - Water Connection; Tray Assembly

06-2017
4 / 12
OPERA
CAP. 4
Installation and connection
EN
Fig. 3
Fig. 4
1
2
2
4
3
1

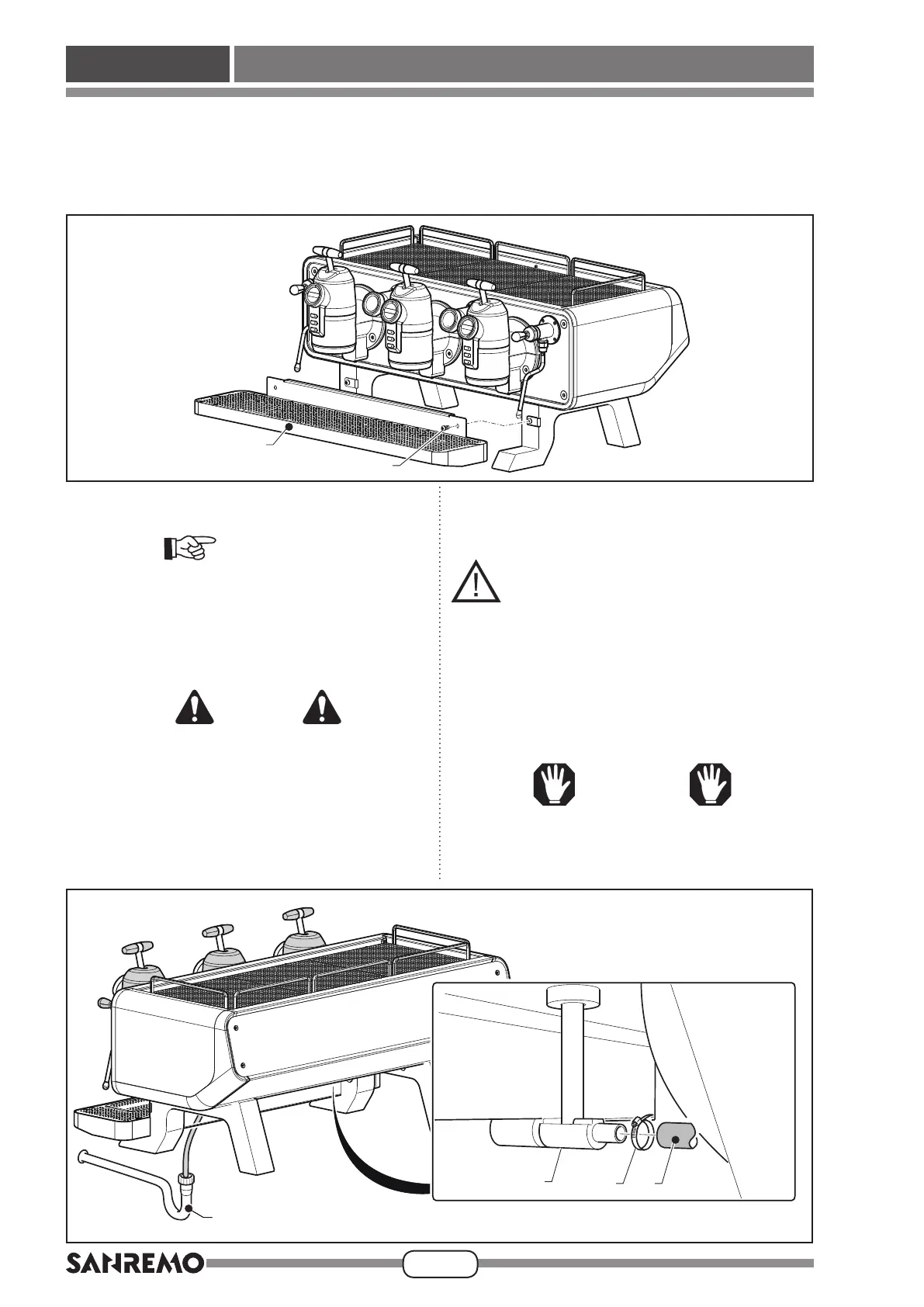

4.3 - TRAY ASSEMBLY
(Fig. 3)
• Assemble the tray (1) on the machine and fasten it with the two Allen screws (2).
4.4 - CONNECTIONS (Fig. 4)
IMPORTANT
Machine connecting operations must be
performed by a specialised and authorized
technician.
4.4.a - Water connection (Fig. 4)
HAZARD
The water must be connected in compli-
ance with the regulations in force in the
country where the machine is used and
using a new set of joints.
• The machine is supplied with the water intake and
drain pipes already connected.
Drain
A water drain (1) with siphon must be prepared near
the machine.
The drain siphon must be posi-
tioned at least 20 cm below the area
the machine is standing on.
• Connectthedrainpipe(2)tothetraytting(3)and
fasten it with the relevant strap (4).
• Connect the other end to the previously prepared
drain pipe (1).
ATTENTION
Check that the drain pipe is free, without
kinking or obstructions.
