Sanremo Opera - Description of Components

06-2017
CAP. 5
3 / 24
OPERA
Operation of the machine
EN

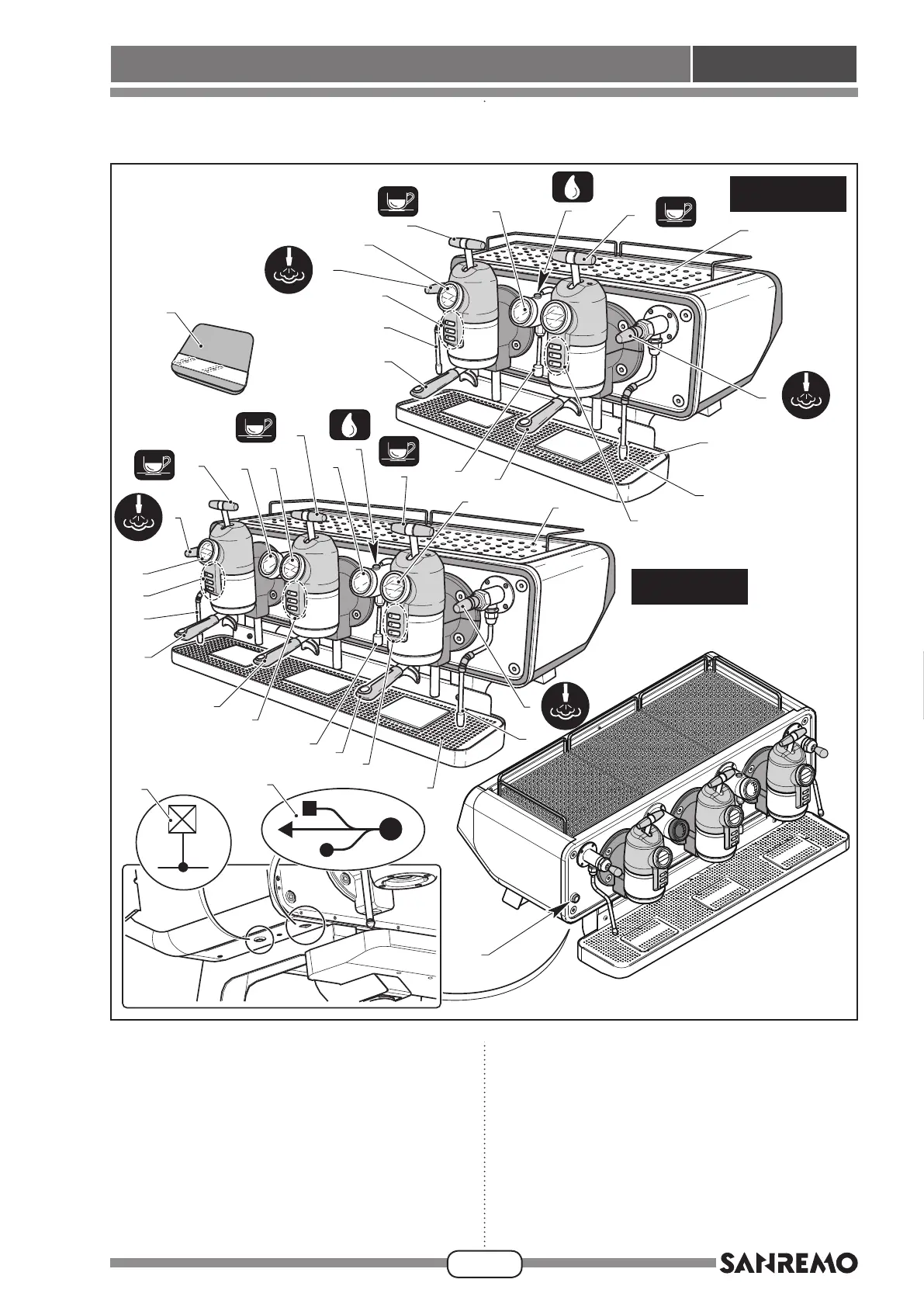

Fig. 1
5
5
7
7
1
3
3
6
2
2
4
8
10
10
12
11
13
4
10
10
12
12
11
5
7
3
6
2
10
12
9
5
7
7
3
3
2
8
13
1
16
14
15
Component key
1. Cup heating plate with heating element
2. Steam tap lever
3. Unit button panel
4. Water tap button
5. Steam tap
6. Water level indicator
7. Unitwithlterholder
8. Water tap
5.1 - DESCRIPTION OF COMPONENTS (Fig. 1)
9. On/Off line switch
10. Coffee dispensing lever
11. Hot water temperature indicator
12. Unit parameter display
13. Tray
14. “Purge” button *
15. USB socket*
16. Electronic scale (optional)
* Use to make updates to the machine management
software.
2 Units
3 Units
