9-3-A. Minimum digit setting

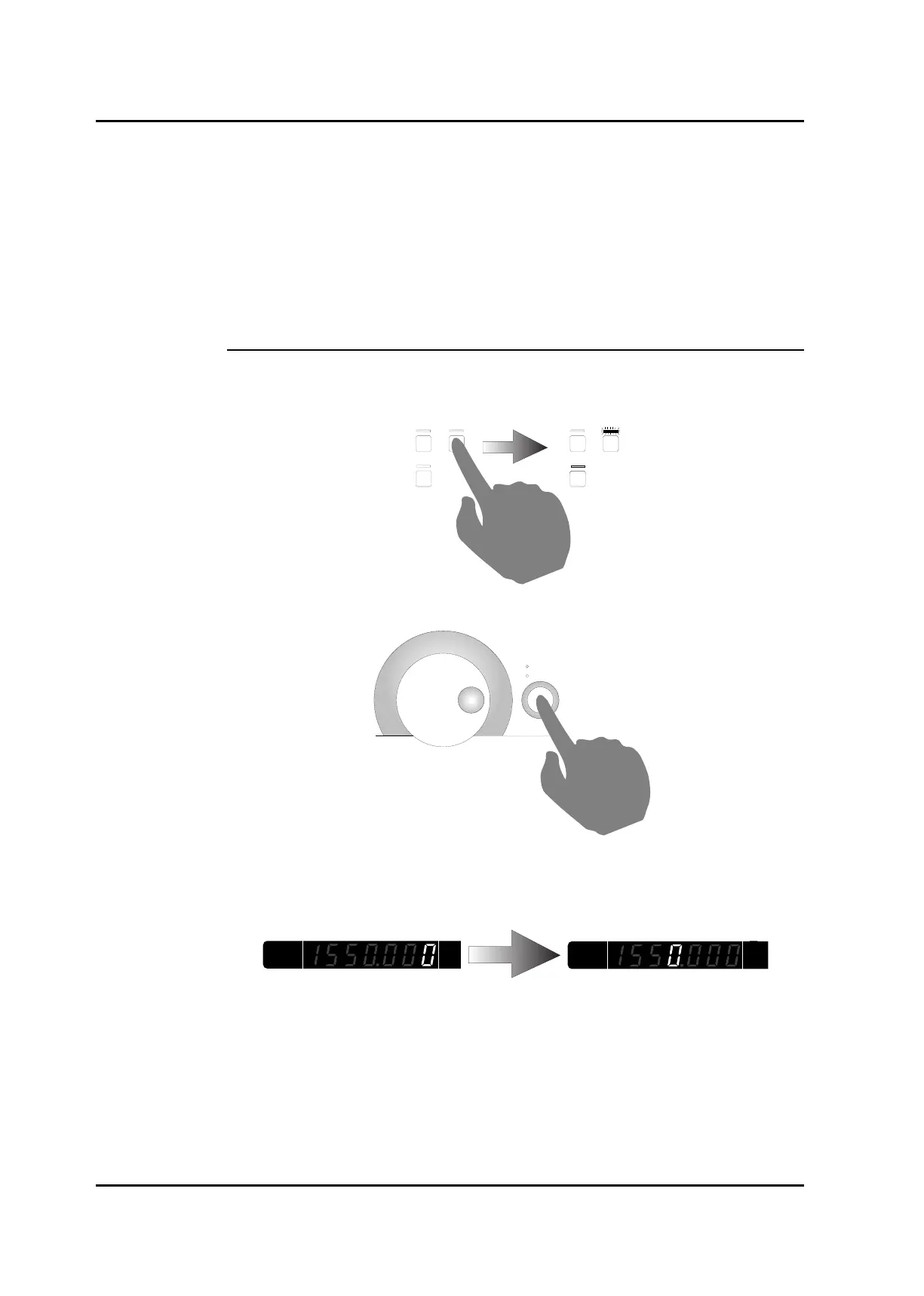

As for wavelength setting, minimum tuning step can be selected by the following operation.
Please push shift key. (This key toggles the sift function ON/OFF)
When the key is pressed, SHIFT LED is lit, and the next key entry is ready.
When the SHIFT LED is lit, press the rotary encoder change key.
If the key is pressed, minimum step digit which is currently set on the wavelength display
panel is ickering. Select minimum step digit by rotating rotary encoder. (Setting range is
10nm – 1/1000nm)
Then set the digit by pressing rotary encoder change key. When the key is pressed SHIFT LED
goes off and TSL-210 go back normal mode.
Minimum step digit won’t be changed until main power off or resetting.
COH SHIFT
ACC
COH SHIFT
ACC
WAVE LENGTH
POWER
TUNABLE SEMICONDUCTOR LASER TSL-210
nm
TEMP.ERROR
CURR.LIMIT
WAVE
LENGTH
POWER
nm
WAVE
LENGTH
Press SHIFT key. Lamp is lit.
