Santec TSL-210 - 10-1-E GP-IB Connector

TUNABLE LD LIGHT SOURCE TSL-210
10-3
4. Command, Data, Delimiter
Command consists of 2 alphabetical letters, irrespective of upper or lower case.
When inputting data, input numeric value data following command. Command, delimiter of
command, and data are CL+LF (0D0A). When a wrong command is received, the TSL-210
outputs "NR" to the next data request; but, when it receives a current command, it stops output-
ting "NR".
10-1-E GP-IB Connector

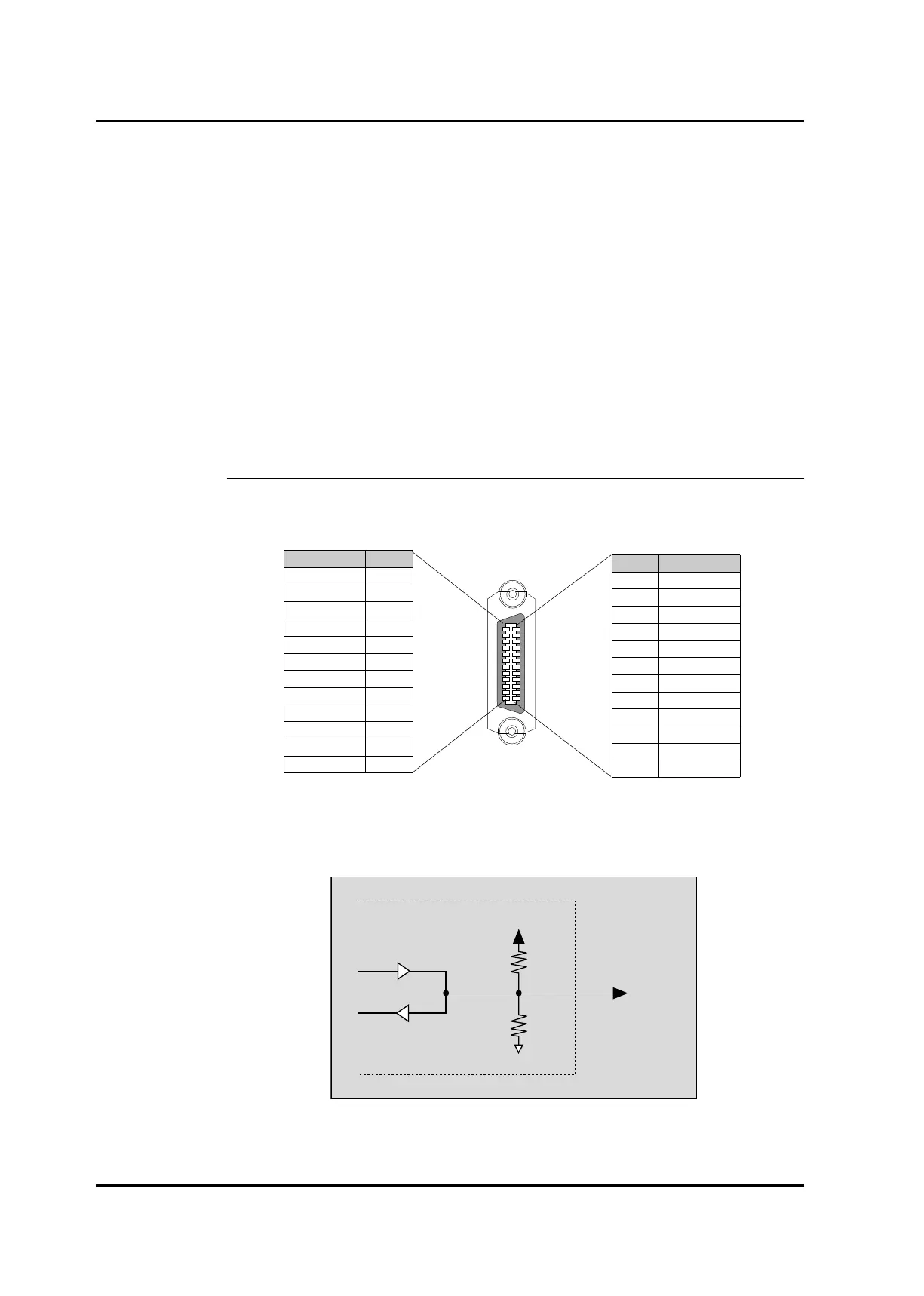

Pin Assignment of GP-IB Connector
Signal name Pin No.
Gnd, LOGIC 24
Gnd, (ATN) 23
Gnd, (SQR) 22
Gnd, (IFC) 21
Gnd, (NDAC) 20
Gnd, (NRFD) 19
Gnd, (DAV) 18
REN 17
DIO 8 16
DIO 7 15
DIO 6 14
DIO 5 13
Pin No. Signal name
12 SHIELD
11 ATN
10 SRQ
9 IFC
8 NDAC
7 NRFD
6 DAV
5 EOI
4 DIO 4
3 DIO 3
2 DIO 2
1 DIO 1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
End of signal line
+5V
6.8kΩ
GP-IB
3.3kΩ
Driver
Receiver
Bus line
