Santec TSL-210 - 10-2-E. Control pad

10-6
TSL-210 OPERATION MANUAL

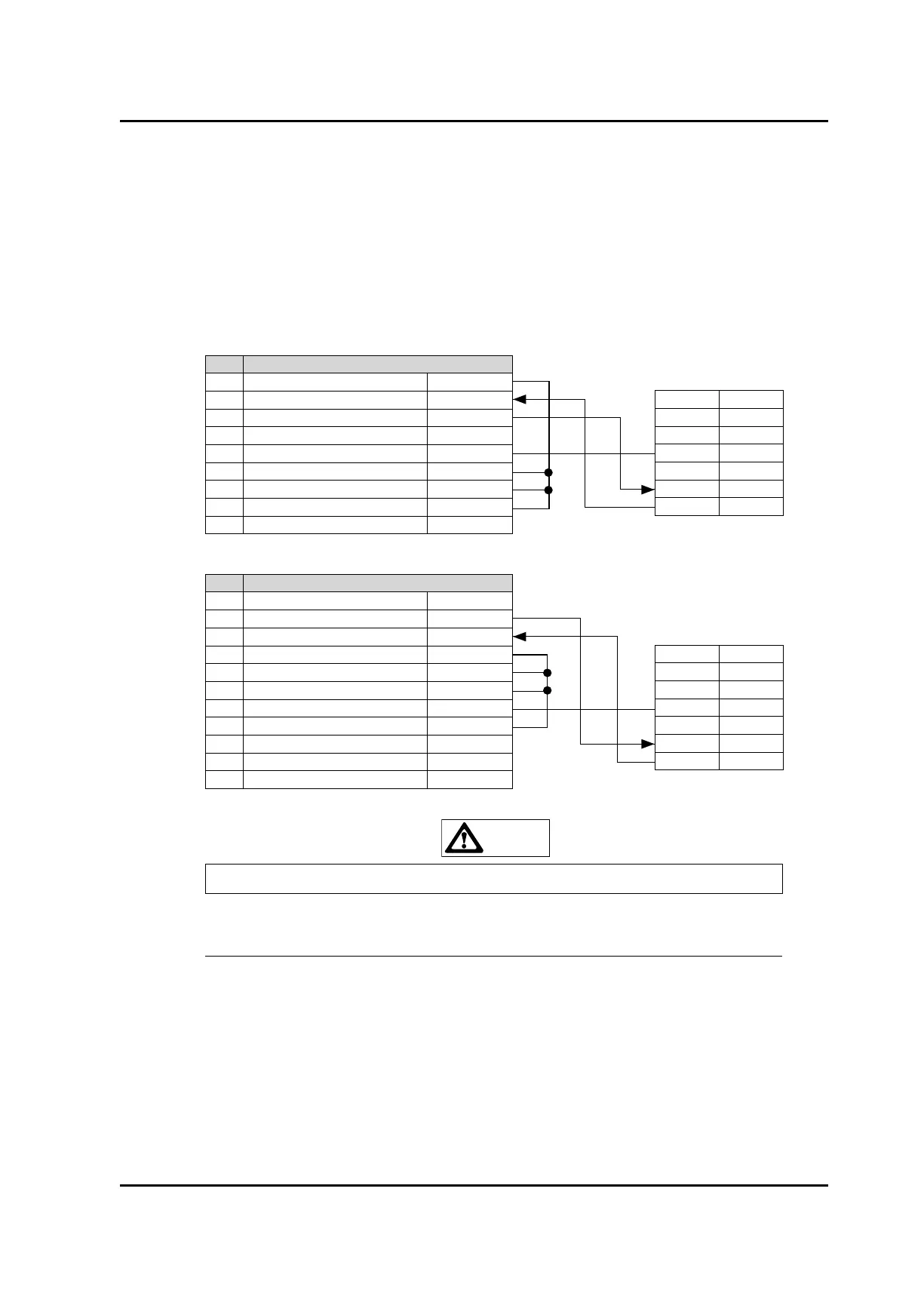

D sub 9 pin connector
D sub 25 pin connector
10-2-E. Control pad
TSL-210 is not equipped with numeric keys. The operation panel has only the necessary mini-
mum displays, keys and operation by the rotary encoder.
The control pad enables numeric input, command input, wavelength sweep and table control by
connecting via SIF cable. This control pad improve operation.
Do not connect pin assignment incorrectly. It may cause damage to the equipment.
CAUTION
No. Signal
1 Frame Ground FG
2 Transit Data TXD
3 Receive Data RXD
4 Request To Send RTS
5 Clear To send CTS
6 Data Set Ready DSR
7 Signal Ground SG
8 Data Carrier Detect DCD
9 -
: -
25 -
No. Signal
1 Data Carrier Detect DCD
2 Receive Data RXD
3 Transit Data TXD
4 Data Terminal Ready DTR
5 Signal Ground SG(GND)
6 Data Set Ready DSR
7 Request To Send RTS
8 Clear To Send CTS
9 Ring Indicate RI
SIF Connector
No. Signal
1 RDX
2 TDX
3 GND
4 6.4V
5 RRDX
6 RTDX
SIF Connector
No. Signal
1 RDX
2 TDX
3 GND
4 6.4V
5 RRDX
6 RTDX
