Sanyo PLC-XM150L User Manual

-25-

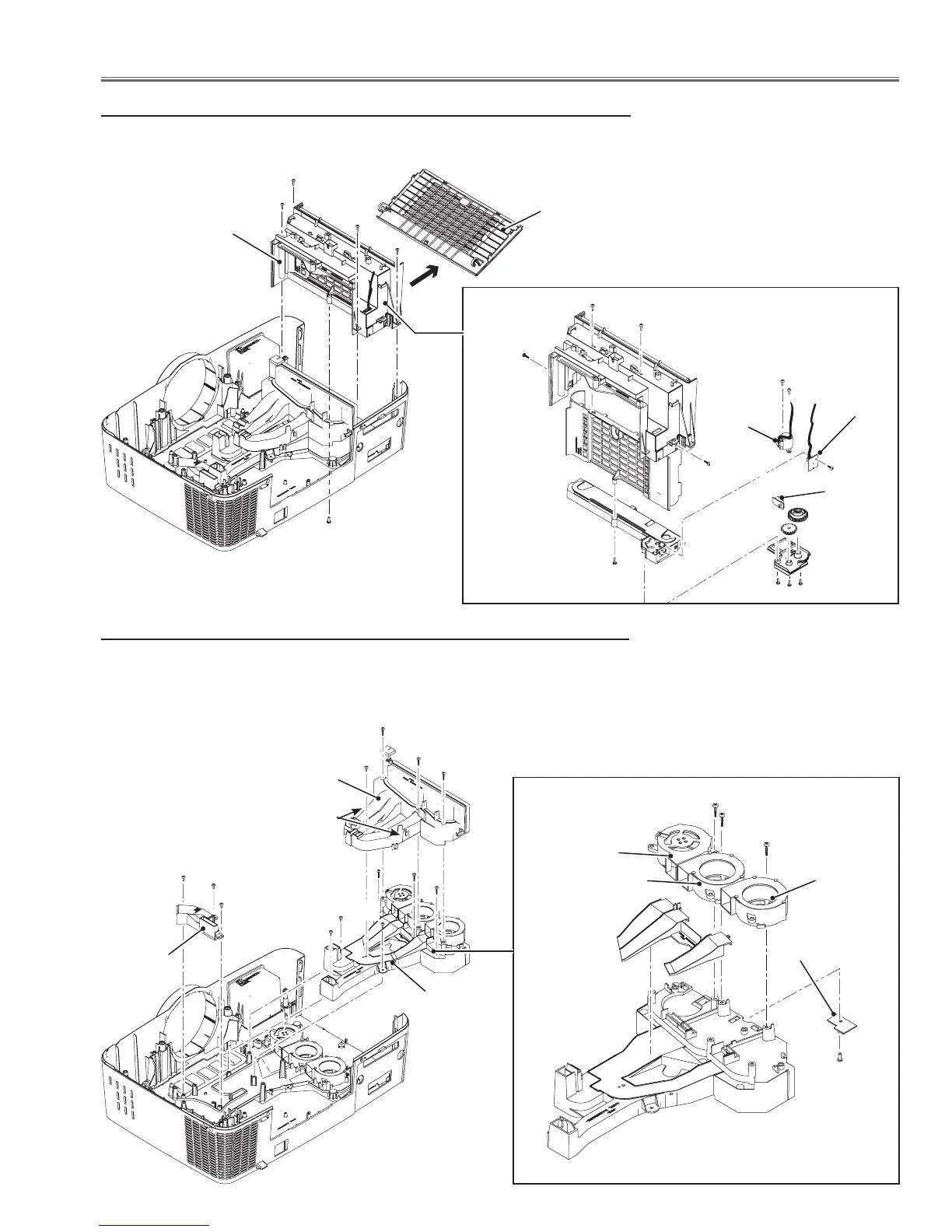

Mechanical Disassembly
10. A/V Board Assy removal
1. Remove the Filter Cover by pulling it outside.
2. Remove 4 screws-A (T3x8) and 1 screw-B (M3x8) and pull the Filter Box
assy upward off.
11. Fans (FN908, FN909, FN910) removal
1. Remove 3 screws-A (T3x15), 1 screw-B (T3x8) and unhook 2 hooks and
remove the Duct Panel Top.
2. Remove 3 screws-C (T3x8) to take the Duct PBS off.
3. Remove 3 screws-D (T3x12) and 3 screws-E (T3x8) to take the Duct Fans
assy off.
A
Filter box assy
T3x8
Filter cover
A
A
A
T3x8
T3x8
T3x8
T3x8 x3
T3x8
T3x8
T3x8 x2
FIlter
motor
(M901)
AMF
sensor
board
Filter
switch
(SW1891)
A
A
C
C
C
D
D
D
A
E
E
Duct PBS
Duct panel top
Duct fan assy
T3x12
T3x12
T3x12
T3x8
FN909
FN910
FN908
Sensor A
board
E
B
Hook
B

Sanyo PLC-XM150L Specifications

General

Vertical scan range	48 - 100 Hz
Horizontal scan range	15 - 100 kHz
Projection technology	LCD
Contrast ratio (typical)	1000:1
Projector native resolution	XGA (1024x768)
Lamp type	NSH
Lamp power	330 W
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	3000 h
Analog signal format system	NTSC, PAL, SECAM
S-Video inputs quantity	1
Dimensions (WxDxH)	489.5 x 371.1 x 164 mm
Noise level	38 dB
Power consumption (standby)	0.6 W
Power consumption (typical)	400 W
Power consumption (economy mode)	338 W

Weight and Dimensions

Weight	8900 g
