Mechanical Disassembly

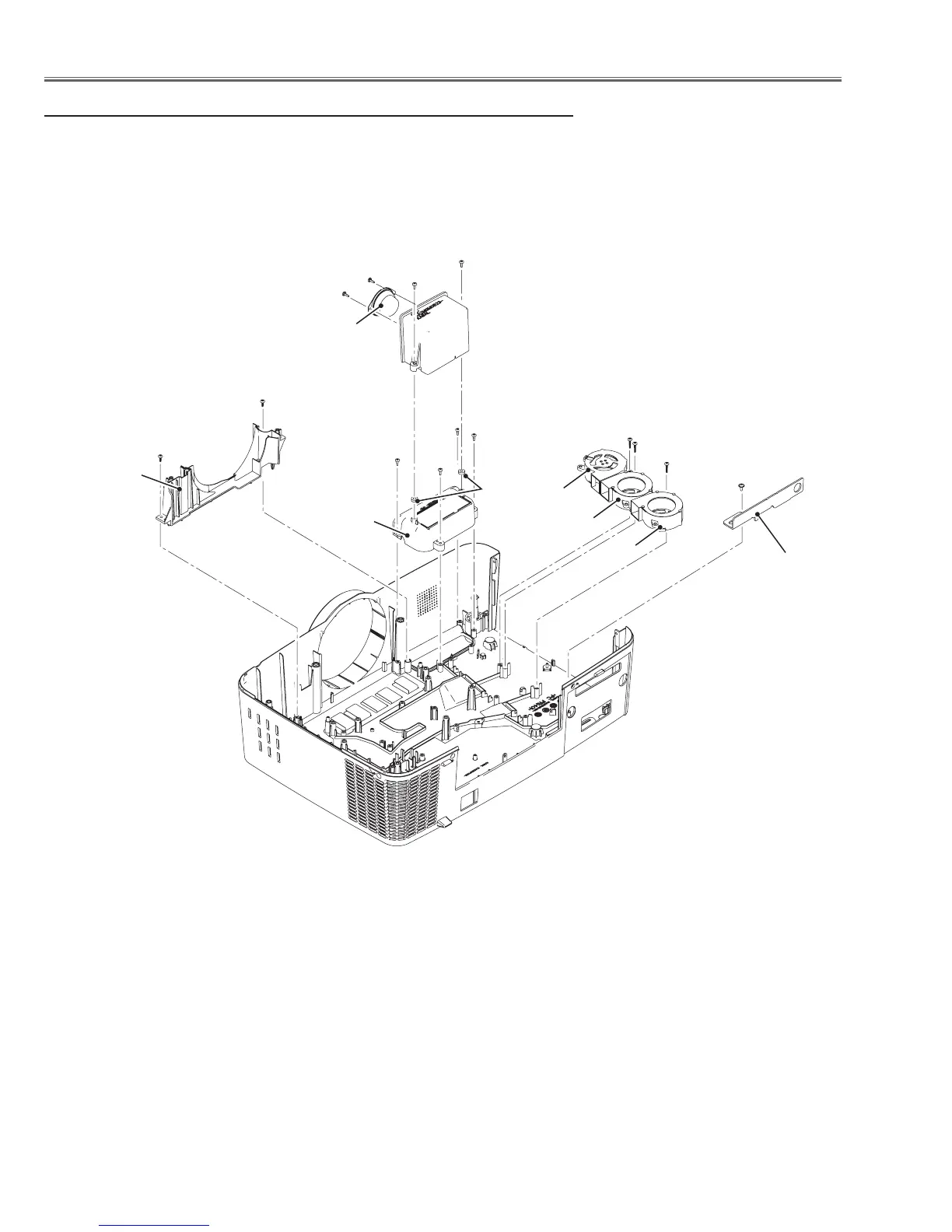

12. Fans (FN906, FN907, FN911) and Speaker removal
1. Remove 3 screws-A (T3x12) and remove fans.
2. Remove 2 screw-B (T3x8) to take the Lens Cover Bottom upward.
3. Remove 2 screws-C (T3x8) to take the Speaker box off.
Security holder
A
T3x8
A
A
B
C
C
Lens cover
bottom
Speaker
FN906
FN907
FN911
Handle cover
Spacer
boss
T3x8
T3x8
T3x8
T3x8
T3x8
T3x8
B

Sanyo PLC-XM150L Specifications

General

Vertical scan range	48 - 100 Hz
Horizontal scan range	15 - 100 kHz
Projection technology	LCD
Contrast ratio (typical)	1000:1
Projector native resolution	XGA (1024x768)
Lamp type	NSH
Lamp power	330 W
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	3000 h
Analog signal format system	NTSC, PAL, SECAM
S-Video inputs quantity	1
Dimensions (WxDxH)	489.5 x 371.1 x 164 mm
Noise level	38 dB
Power consumption (standby)	0.6 W
Power consumption (typical)	400 W
Power consumption (economy mode)	338 W

Weight and Dimensions

Weight	8900 g
