Sanyo PLC-XM150L User Manual

-29-
Optical Parts Disassembly
PBS and Integrator
lens assy

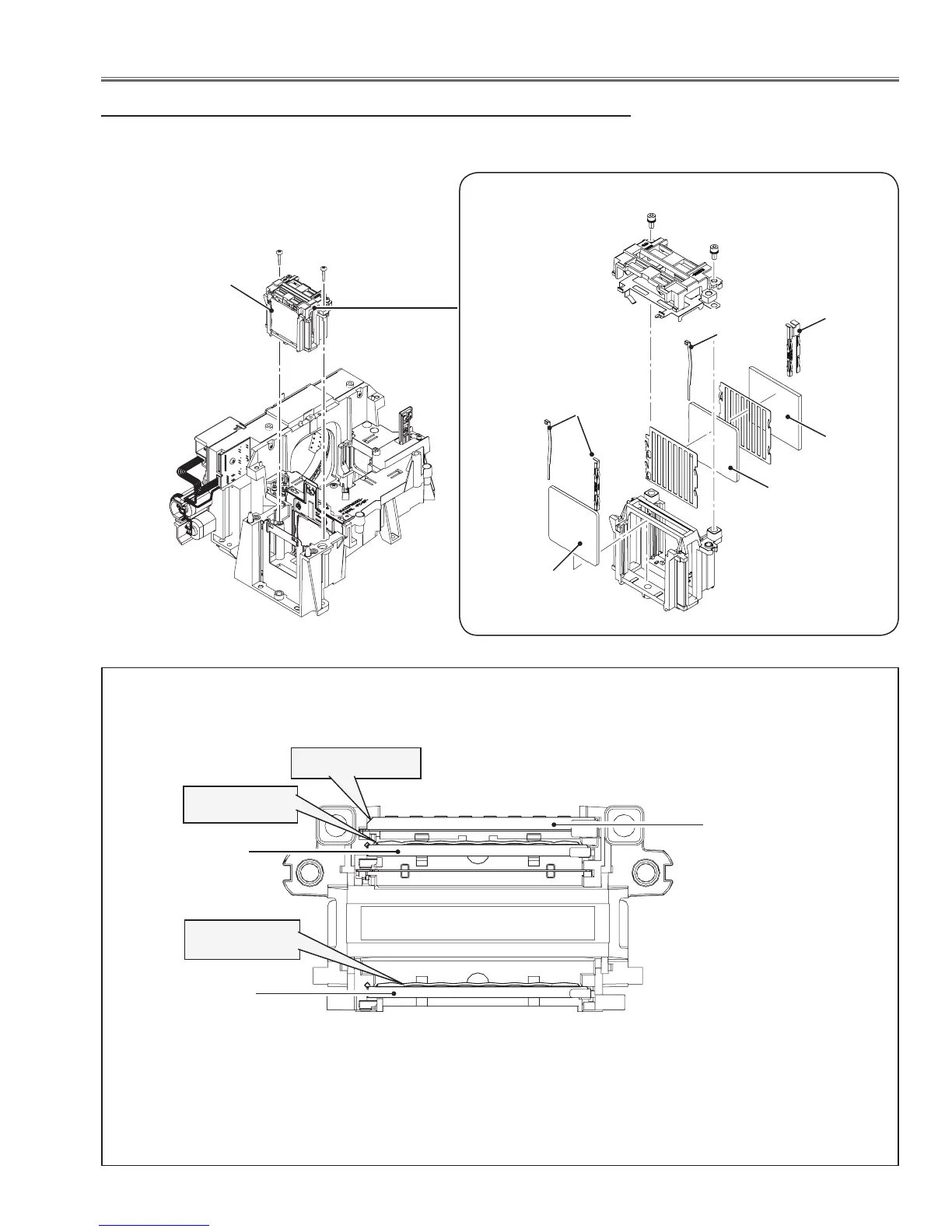

3. PBS and Integrator Lens Assy removal
1. Remove 2 screws-A (M3x14) and pull the PBS and Integrator lens assy
upward.
Stopper
M2.5x6
A
A
M2.5x6
Integrator
lens-out
Integrator
lens-in
Stopper
Stopper
PBS
Integrator lens-out
Integrator lens-in
Cutting corner
Rugged surface
Rugged surface
PBS
Top view of PBS and Integrator lens assy

Sanyo PLC-XM150L Specifications

General

Vertical scan range	48 - 100 Hz
Horizontal scan range	15 - 100 kHz
Projection technology	LCD
Contrast ratio (typical)	1000:1
Projector native resolution	XGA (1024x768)
Lamp type	NSH
Lamp power	330 W
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	3000 h
Analog signal format system	NTSC, PAL, SECAM
S-Video inputs quantity	1
Dimensions (WxDxH)	489.5 x 371.1 x 164 mm
Noise level	38 dB
Power consumption (standby)	0.6 W
Power consumption (typical)	400 W
Power consumption (economy mode)	338 W

Weight and Dimensions

Weight	8900 g
