Sanyo PLC-XT25 User Manual

-23-
Mechanical Disassembly
9-1
AV board & Network joint board ass'y removal-1.
1. Remove 3 screws-A(T3X8) and remove the AV board & Netwark joint board ass'y.
9-2
AV board & Network joint board ass'y removal-2.
1. Remove 2 screws-A(M3X6) and 2 screws-B(M2.6X10).
2. Remove the AV board ass'y and remove the Network joint board ass'y.
A
A
A

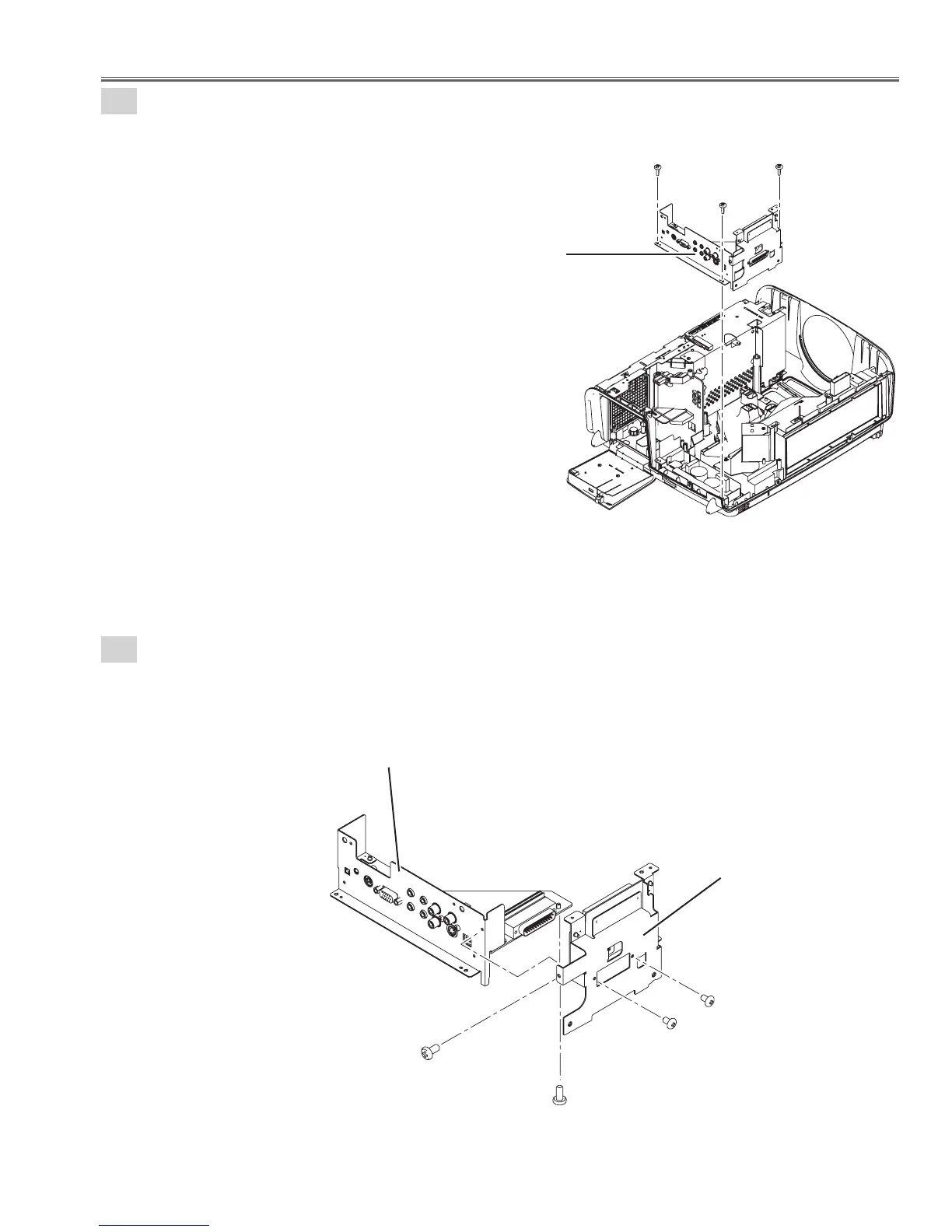

Fig.9-1
AV board & Network joint board ass'y
A
A
B
B
Fig.9-2
AV board ass'y
Network joint board ass'y

Sanyo PLC-XT25 Specifications

General

Projection technology	LCD
Contrast ratio (typical)	1000:1
Projector native resolution	XGA (1024x768)
Resolution	1024 x 768 pixels
Dimensions (WxDxH)	302 x 422 x 162 mm
Display diagonal	1 \
Lamp type	UHP
Lamp power	300 W
Light source type	Lamp
Market positioning	Portable

Weight and Dimensions

Weight	9200 g
