Sanyo PLC-XT25

-24-
Mechanical Disassembly
9-3

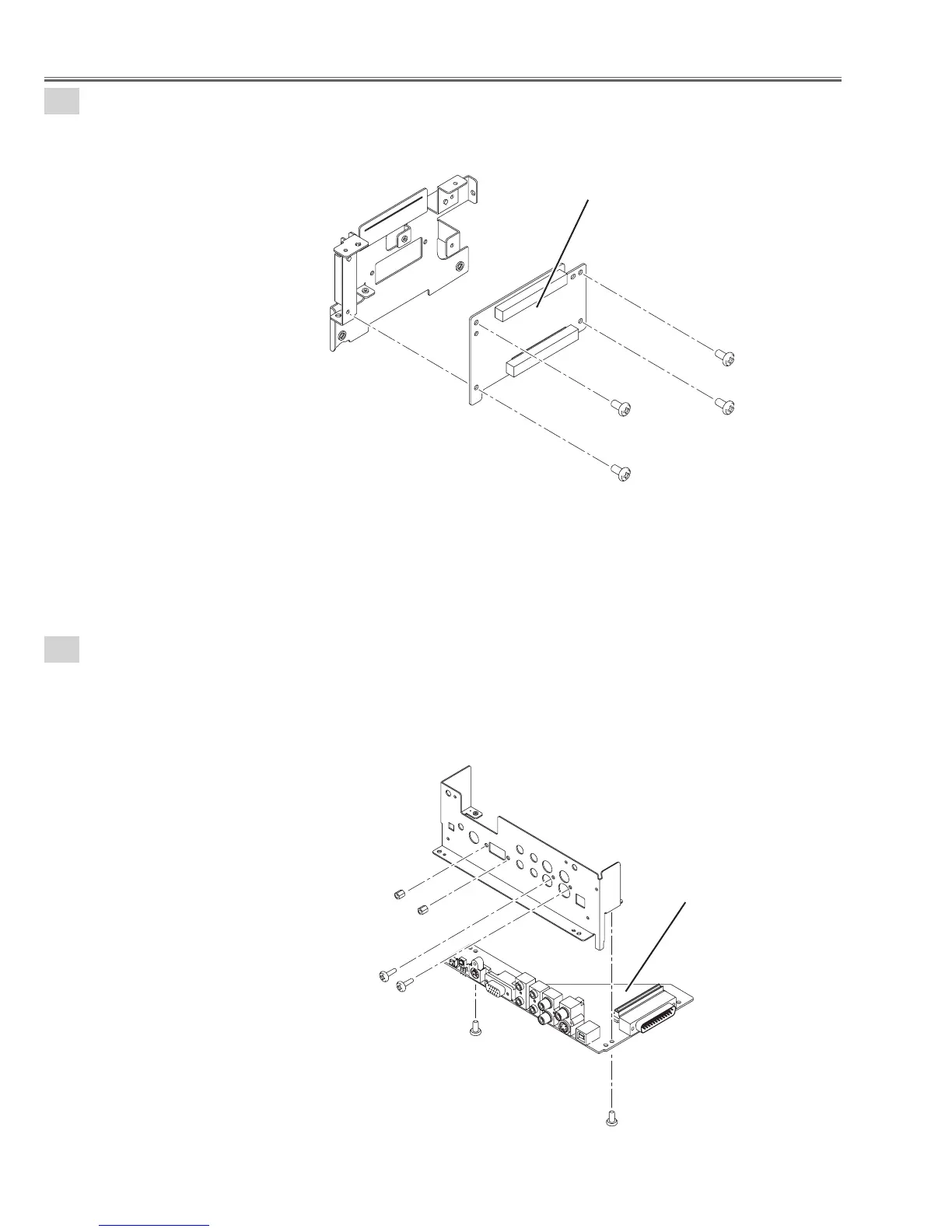

AV board & Network joint board ass'y removal-3.
1. Remove 4 screws-A(M3X6) and remove the Network joint board.
9-4
AV board & Network joint board ass'y removal-4.
1. Remove 2 screws-A(M3X6), 2 screws-B(T3X8) and remove 2 nuts-C.
2. Remove the AV board.
A
A
A
A
Fig.9-3
Network joint board
A
A
B
B
C
C
Fig.9-4
AV board
