Sanyo PLC-XT25

-25-
Mechanical Disassembly
10-1

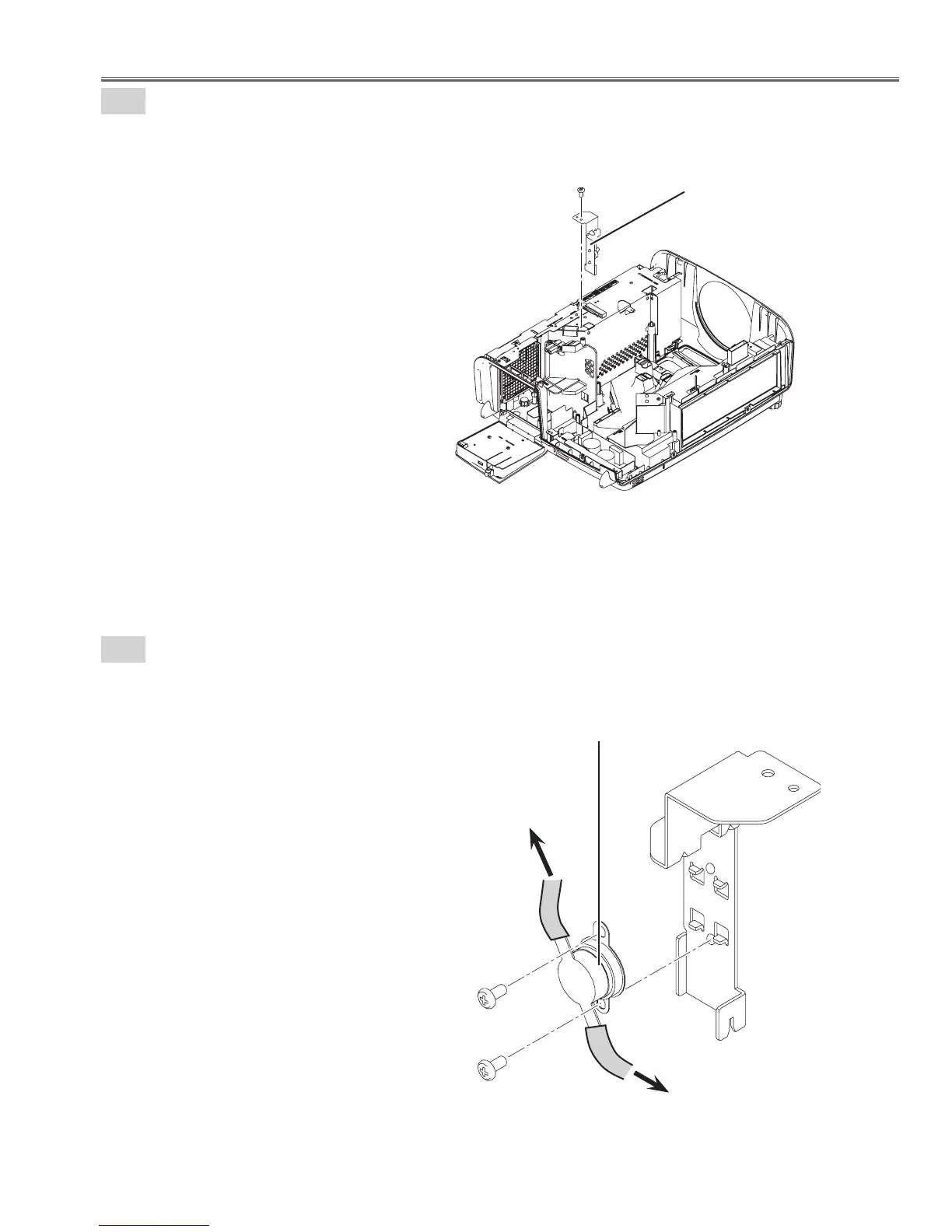

Thermostat(SW901) ass'y removal-1.
1. Remove 1 screw-A(M3X6) and remove the Thermostat(SW901) ass'y.
10-2
Thermostat(SW901) ass'y removal-2.
1. Remove 2 screws-A(M3X4) and remove the Thermal switch(SW901).
A
Fig.10-1
Thermostat ass'y
A
A
Fig.10-2
Thermostat(SW901)
To Power(filter unit)
To Power(DC) unit
