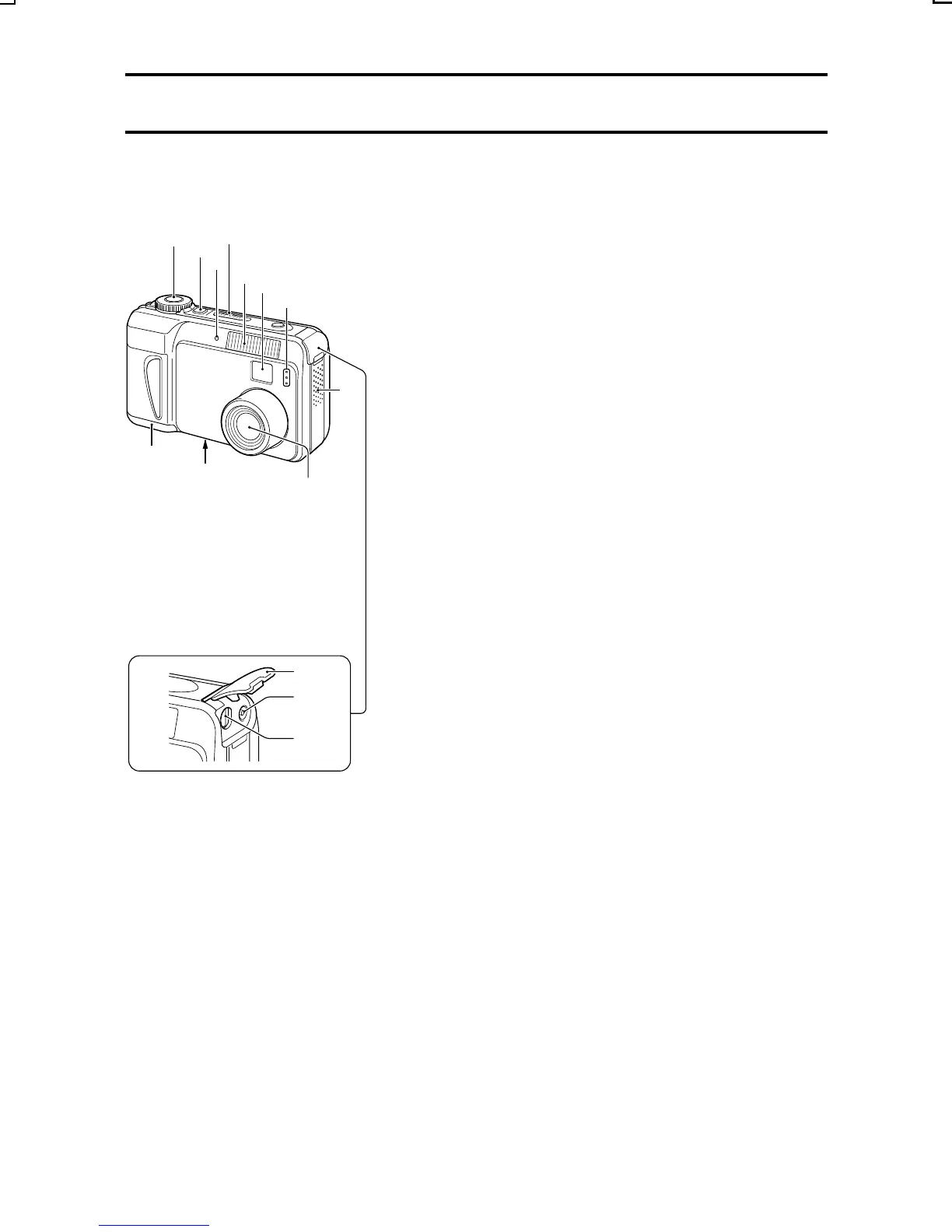

PARTS NAMES
Front
1
Shutter release button
2
Power button
3 Self-timer indicator
4
Main switch
5 Flash
6 Viewfinder
7
Microphone
8
Speaker
œ For listening to sound recordings
9 Lens
F Tripod stand hole
G
Battery compartment cover
Terminals
H Terminal cover
I DC IN (external DC power input) terminal
For connecting a separately sold AC
adapter (model VAR-G4EX/G4AEX for the
VPC-MZ2EX, model VAR-G4E/G4AE for
the VPC-MZ2EX (for U.K.) and model
VAR-G4U/G4AU for the VPC-MZ2)
J DIGITAL/AV terminal
Used as both the USB connector and AV
output terminal.
1
2
3
4
5
6
7
8
9
F
G
H
I
J
SX215/EX, U (VPC-MZ2 GB) Mon. March 25/2002
29
English
